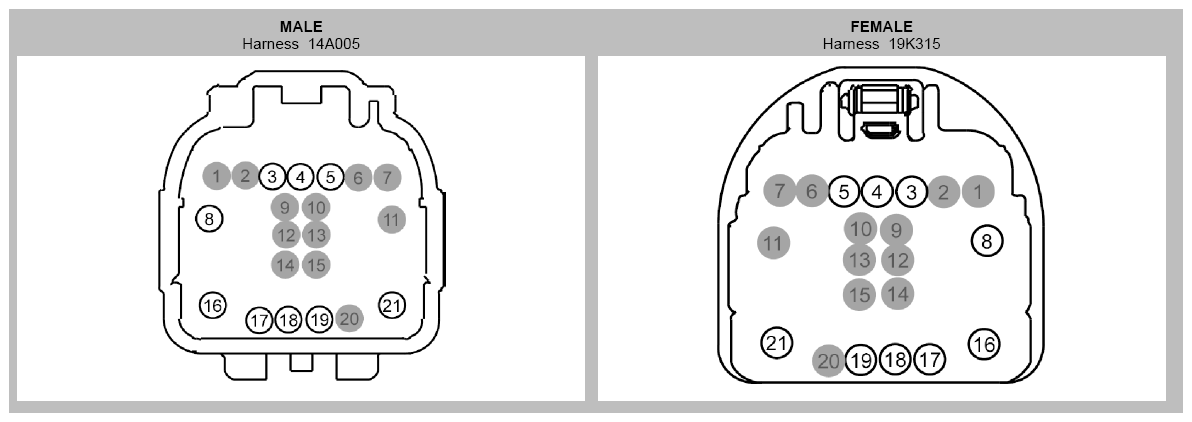

Inline Connector End View (C3047)
Courtesy of FORD MOTOR CO.
| Pin |
Circuit |
Gauge |
Qualifier |
| 1 |
* |
* |
|
| 2 |
* |
* |
|
| 3 |
CHS52 (BU) |
22 |
14A005 |
| 3 |
CHS52 (BU) |
26 |
19K315 |
| 4 |
CHS53 (WH) |
26 |
19K315 |
| 4 |
CHS53 (WH-BN) |
22 |
14A005 |
| 5 |
CHS31 (YE) |
26 |
19K315 |
| 5 |
CHS31 (YE-OG) |
22 |
14A005 |
| 6 |
* |
* |
|
| 7 |
* |
* |
|
| 8 |
CBP21 (BU-GY) |
22 |
14A005 |
| 8 |
CBP37 (WH) |
22 |
19K315 |
| 9 |
* |
* |
|
| 10 |
* |
* |
|
| 11 |
* |
* |
|
| 12 |
* |
* |
|
| 13 |
* |
* |
|
| 14 |
* |
* |
|
| 15 |
* |
* |
|
| 16 |
SBB73 (RD) |
16 |
|
| 17 |
CHS48 (YE) |
22 |
14A005 |
| 17 |
CHS48 (YE) |
26 |
19K315 |
| 18 |
CHS49 (VT) |
22 |
14A005 |
| 18 |
CHS49 (VT) |
26 |
19K315 |
| 19 |
CHS80 (BU-OG) |
22 |
14A005 |
| 19 |
CHS80 (BU-OG) |
26 |
19K315 |
| 20 |
* |
* |
|
| 21 |
GD382 (BK-GY) |
12 |
14A005 |
| 21 |
GD382 (BK-GY) |
16 |
19K315 |
