Fuel Tank Pressure (Ftp) Sensor Connector End View (C3123)

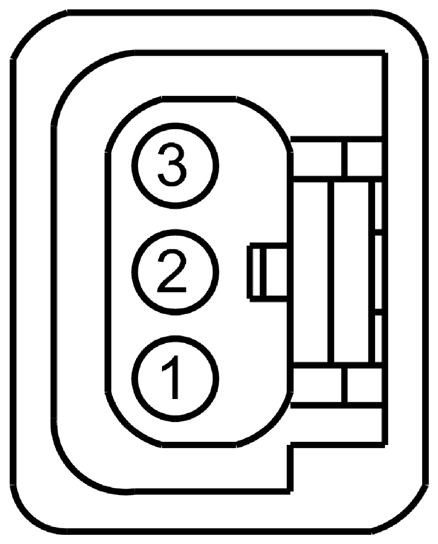

Fig 1: Identifying Fuel Tank Pressure Sensor Connector (C3123)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function
1	LE230 (BN-BU)	18	TRANSDUCER - FUEL TANK PRESSURE VREF
2	RE230 (WH-VT)	18	CTRL MOD. - POWERTRAIN # FUEL TANK PRESSURE TRANSDUCER SIGRTN
3	VE922 (VT-GN)	18	TRANSDUCER - FUEL TANK PRESSURE (FTP)

Available Pigtail Kits

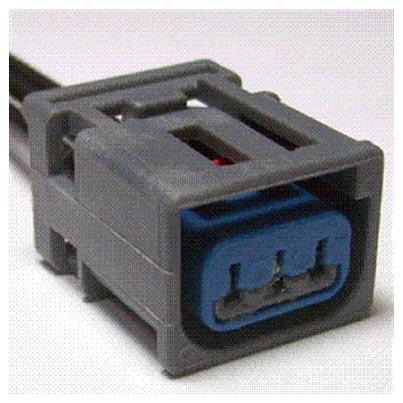

Pigtail Kit Part Number WPT-393	Service Part Number: 3U2Z-14S411-KMA Gauge: 18 Pin material: Gold Cavities: 3 Vehicle Uses Sensor - Delta Pressure Feedback EGR Sensor - Fuel Tank Pressure Transducer

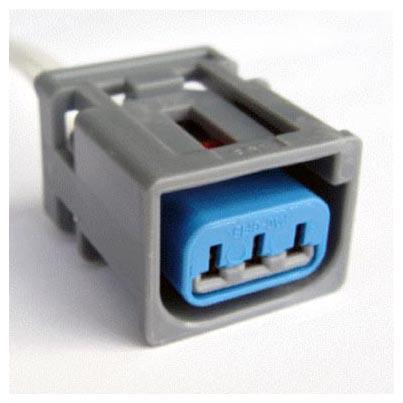

Pigtail Kit Part Number WPT-1205	Service Part Number: 3U2Z-14S411-KMB Gauge: 16 Pin material: Tin (greased) Cavities: 3 Vehicle Uses Sensor - Cam Shaft Position Sensor - Delta Pressure Feedback EGR Sensor - Fuel Tank Pressure Transducer
