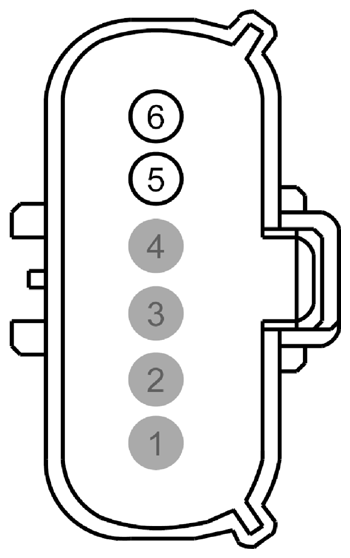

Fuel Tank Isolation Valve Connector End View (C3255)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | * | * | Not Used | |
| 2 | * | * | Not Used | |
| 3 | * | * | Not Used | |
| 4 | * | * | Not Used | |
| 5 | CE420 (GY-VT) | 20 | CTRL MOD. - POWERTRAIN # FUEL TANK ISOLATION VALVE (FTIV) | PHEV |
| 6 | CBK02 (GN) | 20 | FUSE - 8 OR CIRCUIT BREAKER (VPWR 2) | PHEV |

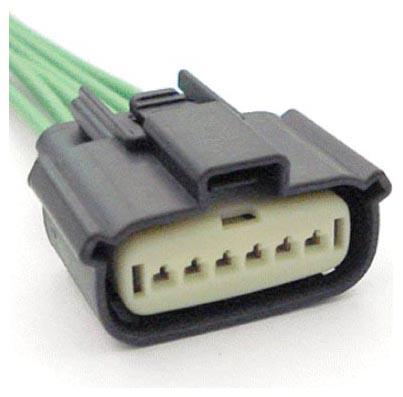

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-944 | Service Part Number: 9U2Z-14S411-NA Gauge: 14 Pin material: Silver Cavities: 6 Vehicle Uses
|
