Fuel Pump (FP) Assembly Connector End View (C3127)

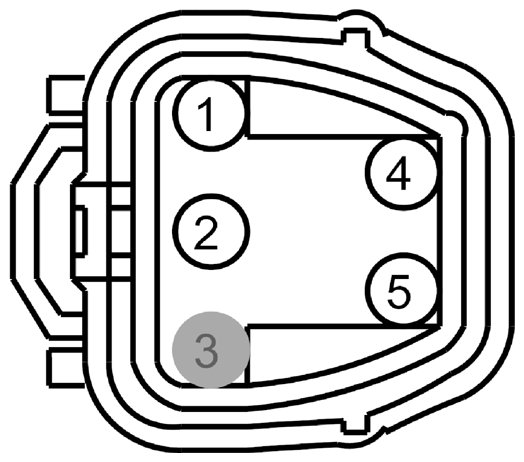

Fig 1: Identifying Fuel Pump Assembly Connector (C3127)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	RMC32 (GN-BU)	18	CTRL MOD. - SENSOR FUEL LEVEL
2	VMC11 (YE-VT)	18	SENSOR - FUEL LEVEL (FLI)
3	*	*	Not Used
4	RE515 (WH-BN)	12	DRIVER - FUEL PUMP RETURN (FPRTN)
5	CE515 (YE-GY)	12	DRIVER - FUEL PUMP POWER (FPPWR)

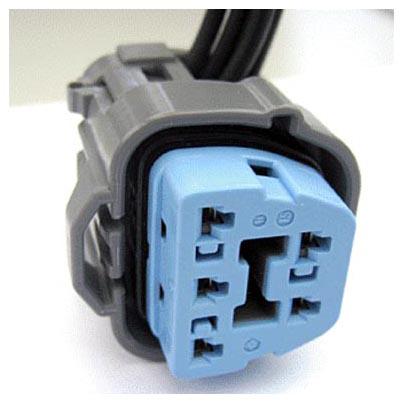

Available Pigtail Kits
Pigtail Kit Part Number WPT-909	Service Part Number: 8U2Z-14S411-NA  Gauge: 14  Pin material: Tin  Cavities: 5  Vehicle Uses Control - Engine Air Shutoff Resistor - Blower Motor (Front)
