Fuel Door Ajar Switch Connector End View (C3067)

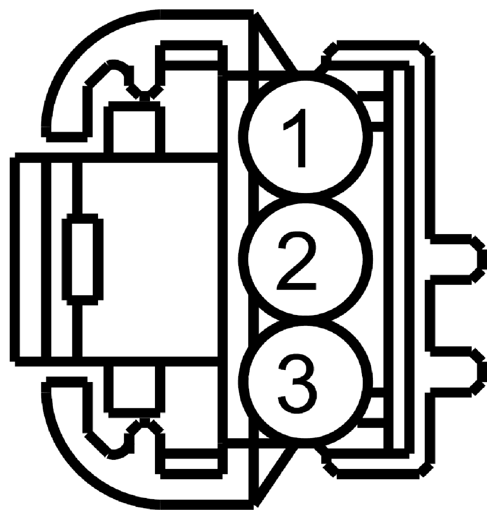

Fig 1: Identifying Fuel Door Ajar Switch Connector (C3067)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	LE424 (YE-GN)	22	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE COWL (C-VREF)
2	RE407 (YE-VT)	22	CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (CSIGRTN) (SIGRTN-C) 3 CE204 (WH-BU)
22	CTRL MOD.	-	POWERTRAIN # FUEL CAP OFF INDICATOR LAMP (FCIL)

Available Pigtail Kits

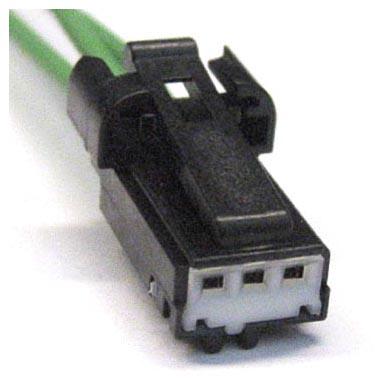

Pigtail Kit Part Number WPT-911	Service Part Number: 8U2Z-14S411-LA  Gauge: 18  Pin material: Silver  Cavities: 3  Vehicle Uses Fuse Panel Junction Block Lamp - Ambient Lighting Lamp - Front Park Lamp - Map Lamp - Park/Turn Lamp - PRNDL Indicator Lamp - Roof Marker Module - Driver Door Sensor - Speed Switch - Ambient Lighting Dimmer
