FOOTWELL Lamp RH Connector End View (C3250)

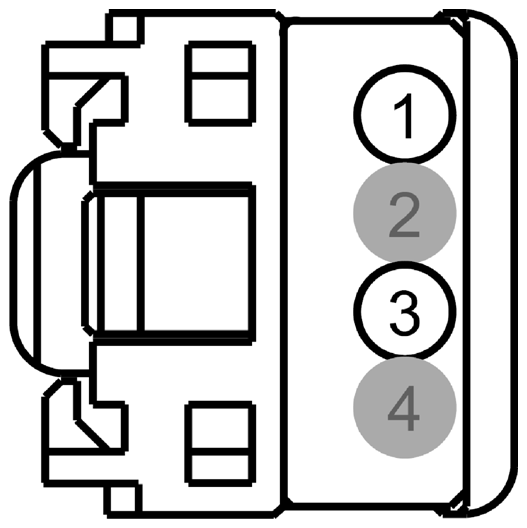

Fig 1: Identifying Footwell Lamp RH Connector (C3250)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VLN33 (GY-VT)	22	CTRL MOD. - INTERIOR/COURTESY LAMP DIMMING (THEATRE)
2	*	*	Not Used
3	GD383 (BK-WH)	22	GROUND - CROSS MEMBER MIDDLE PASSENGER OR RIGHT
4	*	*	Not Used

Available Pigtail Kits

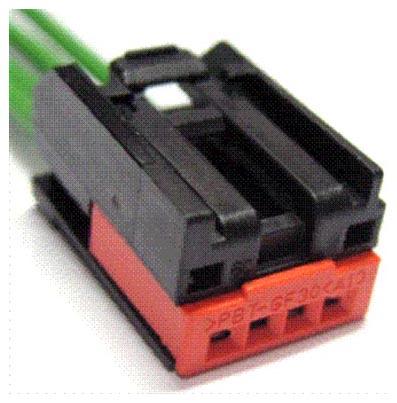

Pigtail Kit Part Number WPT-1139
