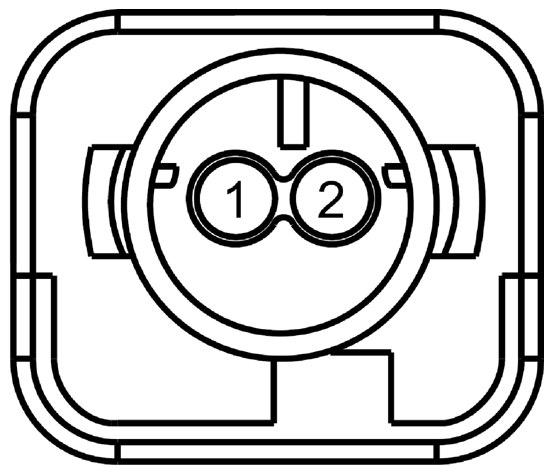

Driver Side Air Curtain Module Connector End View (C3321)

Fig 1: Identifying Driver Side Air Curtain Module Connector (C3321)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CR109 (BN-BU)	20	CTRL MOD. - INFLATABLE CURTAIN DRIVER SIDE +
2	RR109 (BU-GN)	20	CTRL MOD. - INFLATABLE CURTAIN DRIVER SIDE -

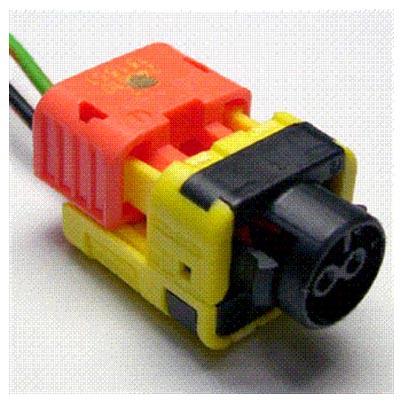

Available Pigtail Kits
Pigtail Kit Part Number WPT-1228	Service Part Number: BU2Z-14S411-BMA  Gauge: 20  Pin material: FCI - Airbag  Cavities: 2  Vehicle Uses Airbag - Side Curtain
