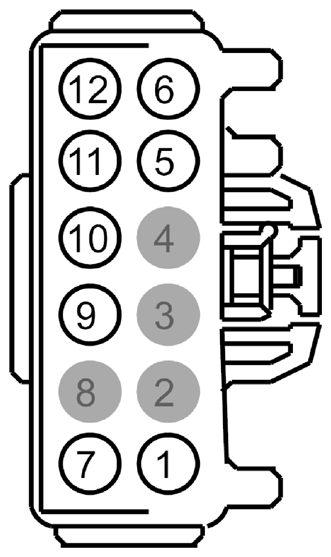

Direct Current/Alternating Current (Dc/Ac) Inverter Connector End View (C3501)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | HYA01 (OG-GN) | 20 | CTRL MOD. - DC/AC INVERTER # ALTERNATING CURRENT OUTPUT A (AC A) | MKZ |
| 1 | HYA01 (OG-GN) | 18 | CTRL MOD. - DC/AC INVERTER # ALTERNATING CURRENT OUTPUT A (AC A) | FUSION |
| 2 | * | * | Not Used | |
| 3 | * | * | Not Used | |
| 4 | * | * | Not Used | |
| 5 | CBP23 (BN-YE) | 22 | FUSE - 31 OR CIRCUIT BREAKER | FUSION |
| 5 | CBP23 (BU-OG) | 20 | FUSE - 31 OR CIRCUIT BREAKER | MKZ |
| 6 | SBB81 (RD) | 10 | FUSE - 81 OR CIRCUIT BREAKER | |
| 7 | HYA02 (OG-WH) | 20 | CTRL MOD. - DC/AC INVERTER # ALTERNATING CURRENT OUTPUT B (AC B) | MKZ |
| 7 | HYA02 (OG-WH) | 18 | CTRL MOD. - DC/AC INVERTER # ALTERNATING CURRENT OUTPUT B (AC B) | FUSION |
| 8 | * | * | Not Used | |
| 9 | VDN04 (VT-WH) | 22 | CTRL MOD. - LIN BUS # SPDJB 4 | |
| 10 | LYA03 (YE-VT) | 22 | CTRL MOD. - DC/AC INVERTER # LED INDICATOR + | |
| 11 | RYA03 (BU-BN) | 22 | CTRL MOD. - DC/AC INVERTER # LED INDICATOR - | |
| 12 | GD214 (BK-VT) | 12 | GROUND - INSTRUMENT PANEL STRUCTURE | MKZ |
| 12 | GD214 (BK-BU) | 12 | GROUND - INSTRUMENT PANEL STRUCTURE | FUSION |

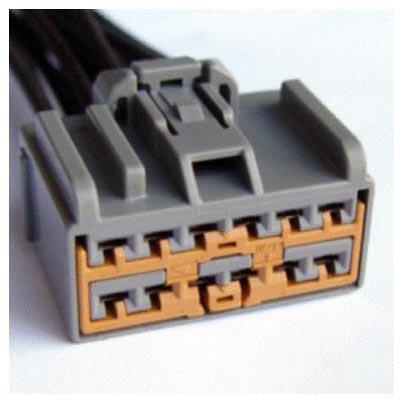

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-396 | Service Part Number: 3U2Z-14S411-BKA Gauge: 12 Pin material: Tin Cavities: 12 Vehicle Uses
|
