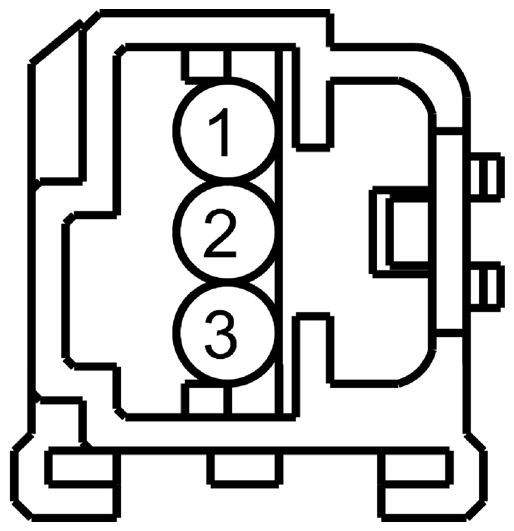

Console Front Center Ambient Led Connector End View (C3668)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CBX07 (RD) | 26 | POWER - CTRL MOD. AMBIENT LIGHTING | |
| 2 | VDN07 (WH) | 26 | CTRL MOD. - LIN BUS # MULTICONTOUR SEAT TRIPLE VALVE MODULE | |
| 3 | GD214 (BK) | 26 | GROUND - INSTRUMENT PANEL STRUCTURE |

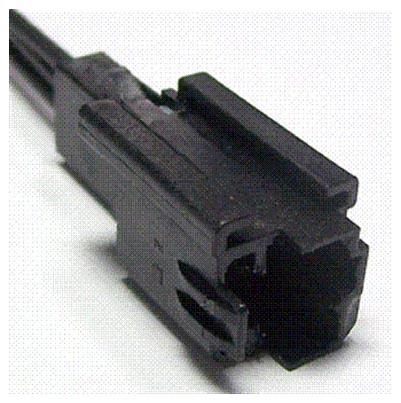

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1103 | Service Part Number: 3U2Z-14S411-EXAB Gauge: 18 Pin material: Tin (greased) Cavities: 3 Vehicle Uses
|
