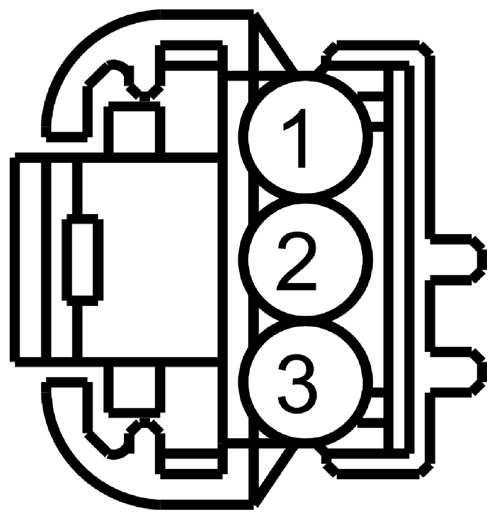

Console Front Center Ambient Led Connector End View (C3555)

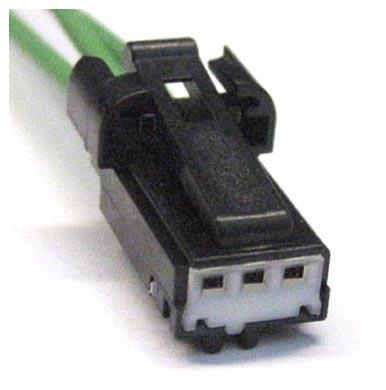

Fig 1: Identifying Console Front Center Ambient Led Connector (C3555)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CBX07 (RD)	26	POWER - CTRL MOD. AMBIENT LIGHTING 2 VDN07 (WH)
26	CTRL MOD.	-	LIN BUS # MULTICONTOUR SEAT TRIPLE VALVE MODULE
3	GD214 (BK)	26	GROUND - INSTRUMENT PANEL STRUCTURE

Available Pigtail Kits
Pigtail Kit Part Number WPT-911	Service Part Number: 8U2Z-14S411-LA  Gauge: 18  Pin material: Silver  Cavities: 3  Vehicle Uses Fuse Panel Junction Block Lamp - Ambient Lighting Lamp - Front Park Lamp - Map Lamp - Park/Turn Lamp - PRNDL Indicator Lamp - Roof Marker Module - Driver Door Sensor - Speed Switch - Ambient Lighting Dimmer
