Brake Shift Interlock Override Connector End View (C3430)

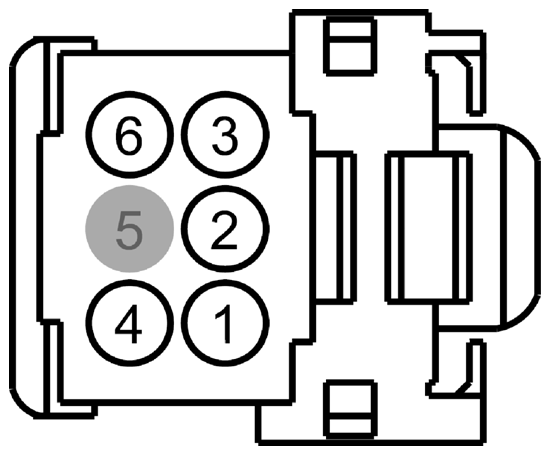

Fig 1: Identifying Brake Shift Interlock Override Connector (C3430)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used
2	GD383 (BK)	26	GROUND - CROSS MEMBER MIDDLE PASSENGER OR RIGHT
3	*	*	Not Used
4	CET82 (GN)	26	SWITCH - SHIFT-BY-WIRE OVERRIDE 1 (OVERRIDE_SW_1)
5	*	*	Not Used
6	CET83 (BU-OG)	26	SWITCH - SHIFT-BY-WIRE OVERRIDE 2 (OVERRIDE_SW_2)

Available Pigtail Kits

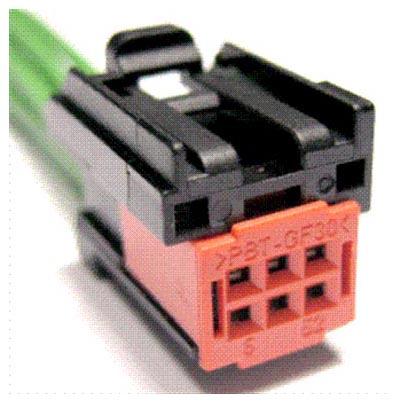

Pigtail Kit Part Number WPT-907	Service Part Number: 8U2Z-14S411-JA  Gauge: 18  Pin material: Silver  Cavities: 6  Vehicle Uses Sensor - Steering Wheel Position Sensor - Sunload Solenoid - Canister Vent Switch - Brake Deactivation Switch - Deck Lid/Hatch Release Switch - Fog Lamp Switch - Hazard Warning Switch - Headlamp/Foglamp

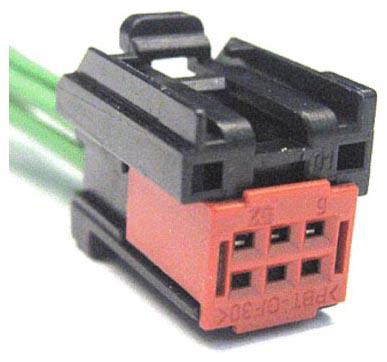

Pigtail Kit Part Number WPT-1164	Service Part Number: 8U2Z-14S411-JB  Gauge: 18  Pin material: Silver  Cavities: 6  Vehicle Uses Switch - Deck Lid/Hatch Release Switch - Deck Lid/Lift Gate Ajar Switch - Hazard Warning Switch - Heated Back Light (Rear Defrost) Switch - Power Liftgate Switch - Reverse Park Aid Switch - Start/Stop Switch - Sunshade Switch - Traction Control
