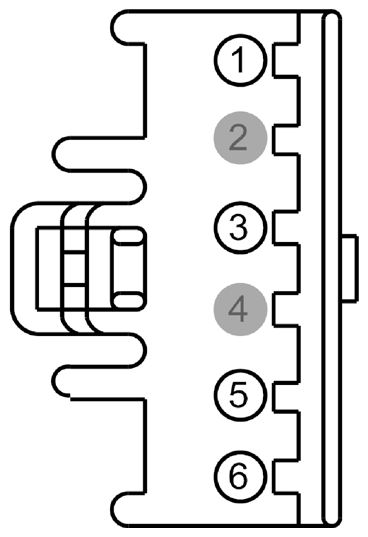

Ac Outlet Connector End View (C3524)

Fig 1: Identifying AC Outlet Connector (C3524)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	HYA01 (OG-GN)	18	CTRL MOD. - DC/AC INVERTER # ALTERNATING CURRENT OUTPUT A (AC A)
2	*	*	Not Used
3	HYA02 (OG-WH)	18	CTRL MOD. - DC/AC INVERTER # ALTERNATING CURRENT OUTPUT B (AC B)
4	*	*	Not Used
5	RYA03 (BU-BN)	22	CTRL MOD. - DC/AC INVERTER # LED INDICATOR -
6	LYA03 (YE-VT)	22	CTRL MOD. - DC/AC INVERTER # LED INDICATOR +

Available Pigtail Kits

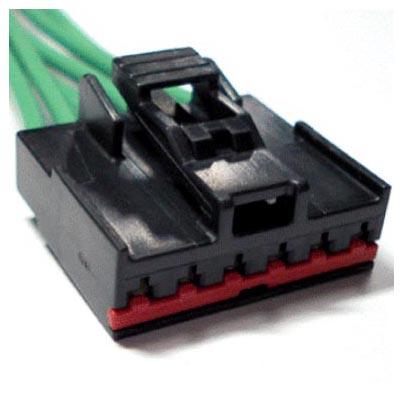

Pigtail Kit Part Number WPT-262	Service Part Number: 3U2Z-14S411-FNA  Gauge: 16  Pin material: Tin  Cavities: 6  Vehicle Uses Inverter - DC to AC Switch - Dimmer Switch - Dimmer (Instrument Panel) Switch - Headlamp Switch - Headlamp Dimmer

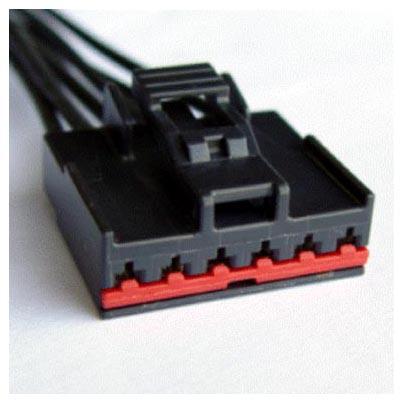

Pigtail Kit Part Number WPT-973	Service Part Number: 3U2Z-14S411-FNB  Gauge: 14  Pin material: Silver  Cavities: 6  Vehicle Uses Inverter - DC to AC Switch - Dimmer Switch - Dimmer (Instrument Panel) Switch - Headlamp Switch - Headlamp Dimmer
