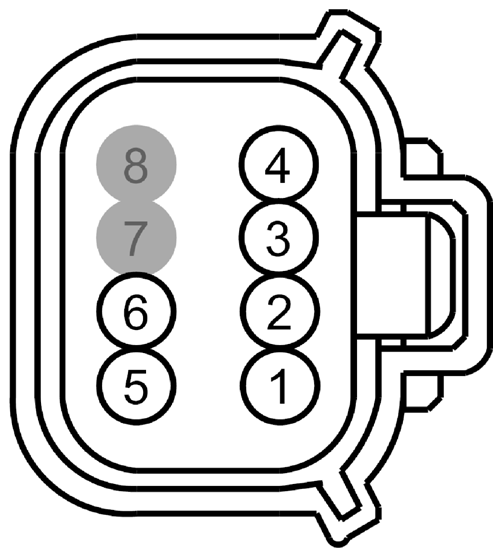

Side Turn Signal Lamp LH Connector End View (C1683)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | GD120 (BK-GN) | 20 | GROUND - FENDER FRONT LEFT | |
| 2 | CBB20 (YE-VT) | 22 | FUSE - 20 OR CIRCUIT BREAKER | |
| 3 | CLS06 (GN-OG) | 22 | CTRL MOD. - PARK FRONT LEFT OR FRONT/REAR LEFT | |
| 4 | CLS05 (BU-GY) | 22 | CTRL MOD. - PARK | |
| 5 | CLS21 (BU-GN) | 22 | CTRL MOD. - TURN LAMP LEFT FRONT | |
| 6 | CLS56 (YE-GN) | 22 | LAMP - TURN FRONT LEFT OR COMMON# SIGNAL OUT | |
| 7 | * | * | Not Used | |
| 8 | * | * | Not Used |

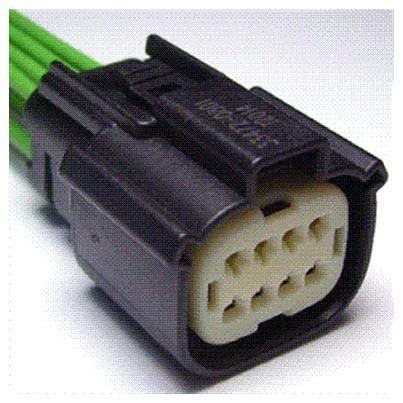

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1276 | Service Part Number: CU2Z-14S411-ALA Gauge: 18 Pin material: Silver Cavities: 8 Vehicle Uses
|
