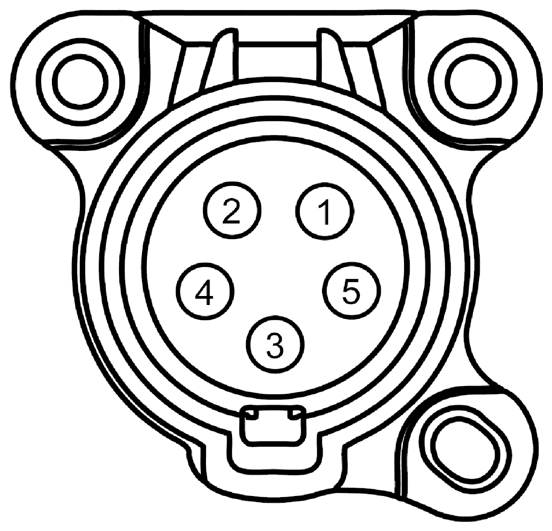

Charge Port Connector End View (C1807)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | HYB53 (OG) | 10 | PORT - HIGH VOLTAGE BATTERY CHARGER INLET 1 (L1) | |
| 2 | HYB54 (OG) | 10 | PORT - HIGH VOLTAGE BATTERY CHARGER INLET 2 (L2) | |
| 3 | RYB57 (GN-YE) | 10 | GROUND - CHARGER AC/BOND | |
| 3 | RYB57 (GN-YE) | 22 | GROUND - CHARGER AC/BOND | |
| 4 | CYB56 (WH-VT) | 20 | PORT - HIGH VOLTAGE BATTERY CHARGER INLET # CONTROL PILOT | |
| 5 | CYB55 (YE-GY) | 20 | PORT - HIGH VOLTAGE BATTERY CHARGER INLET # PROXIMITY DETECTION | |
| 5 | CYB55 (YE-GY) | 20 | PORT - HIGH VOLTAGE BATTERY CHARGER INLET # PROXIMITY DETECTION |
