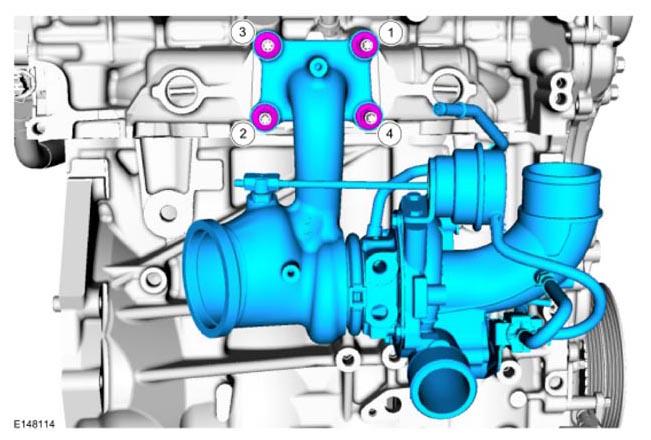

Removal And Installation: Turbocharger: Installation
NOTE:
Make sure that the mating faces are clean and free of foreign material.
-
NOTE:
Make sure that 4 new turbocharger-to-cylinder head studs, 4 new turbocharger nuts and a new turbocharger gasket are installed.
Torque
: 37 lb.ft (50 Nm)
-
NOTE:
Only tighten the nuts finger tight at this stage.
-
- Torque
: 18 lb.ft (25 Nm)
- Torque
: 18 lb.ft (24 Nm)
- To install, reverse the removal procedure.
