Wipers And Washers: Notes

Fig 1: Wipers And Washers - Wiring Diagram (1 Of 3)
G09255298Courtesy of FORD MOTOR CO.

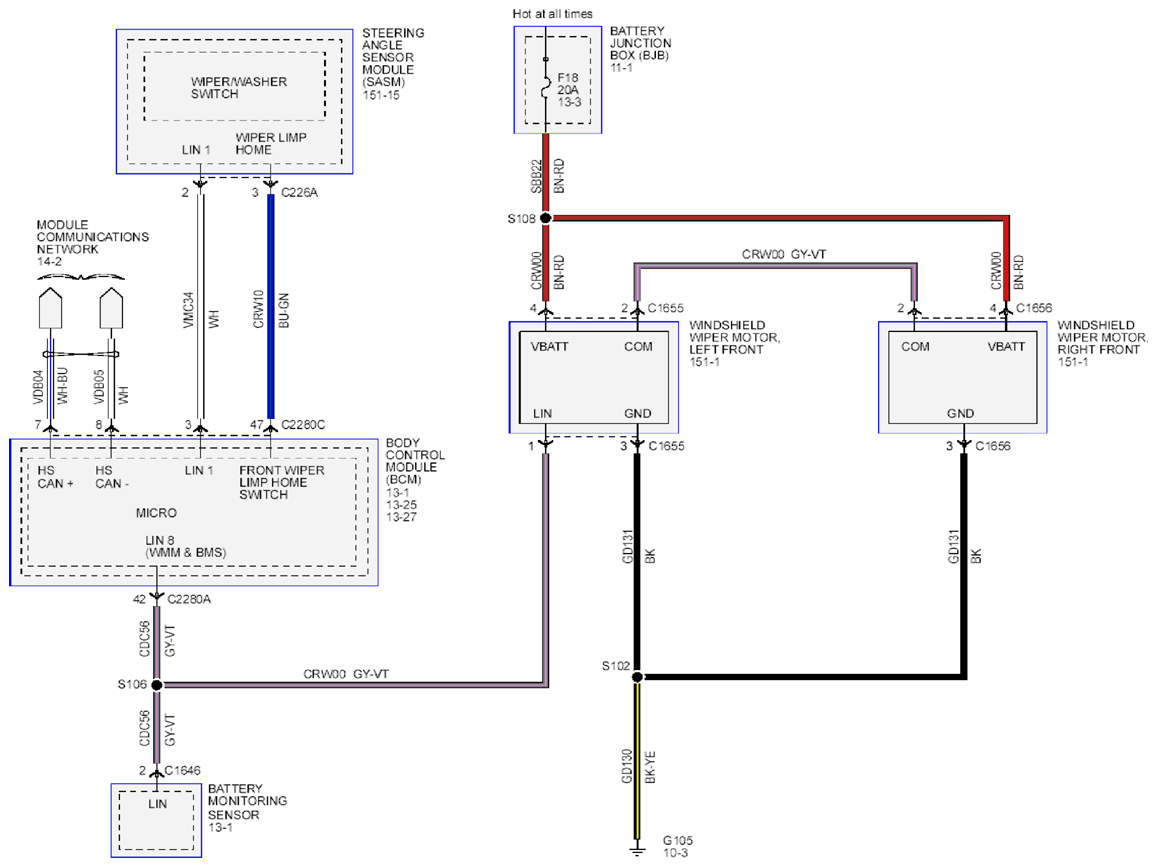

Fig 2: Wipers And Washers - Wiring Diagram (2 Of 3)
G09255299Courtesy of FORD MOTOR CO.

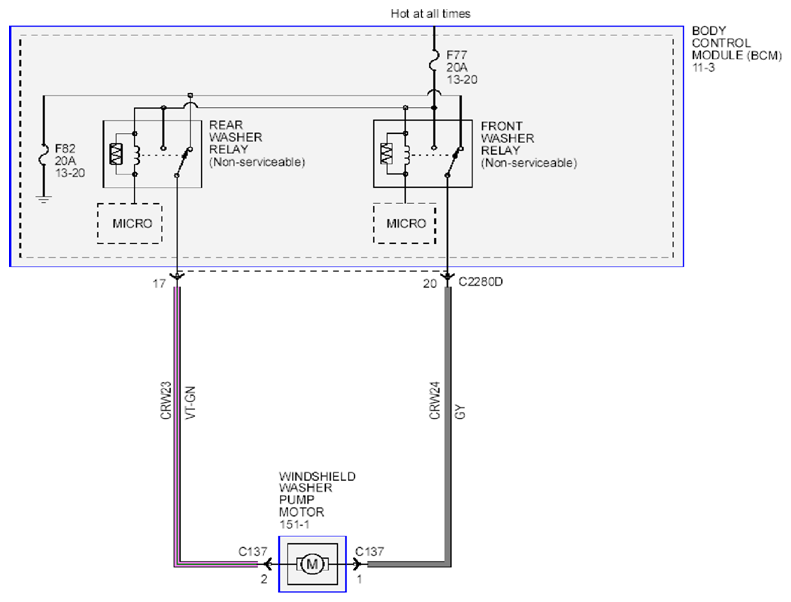

Fig 3: Wipers And Washers - Wiring Diagram (3 Of 3)
G09255301Courtesy of FORD MOTOR CO.
