Turn Signal/Stop/Hazard Lamps: Hid

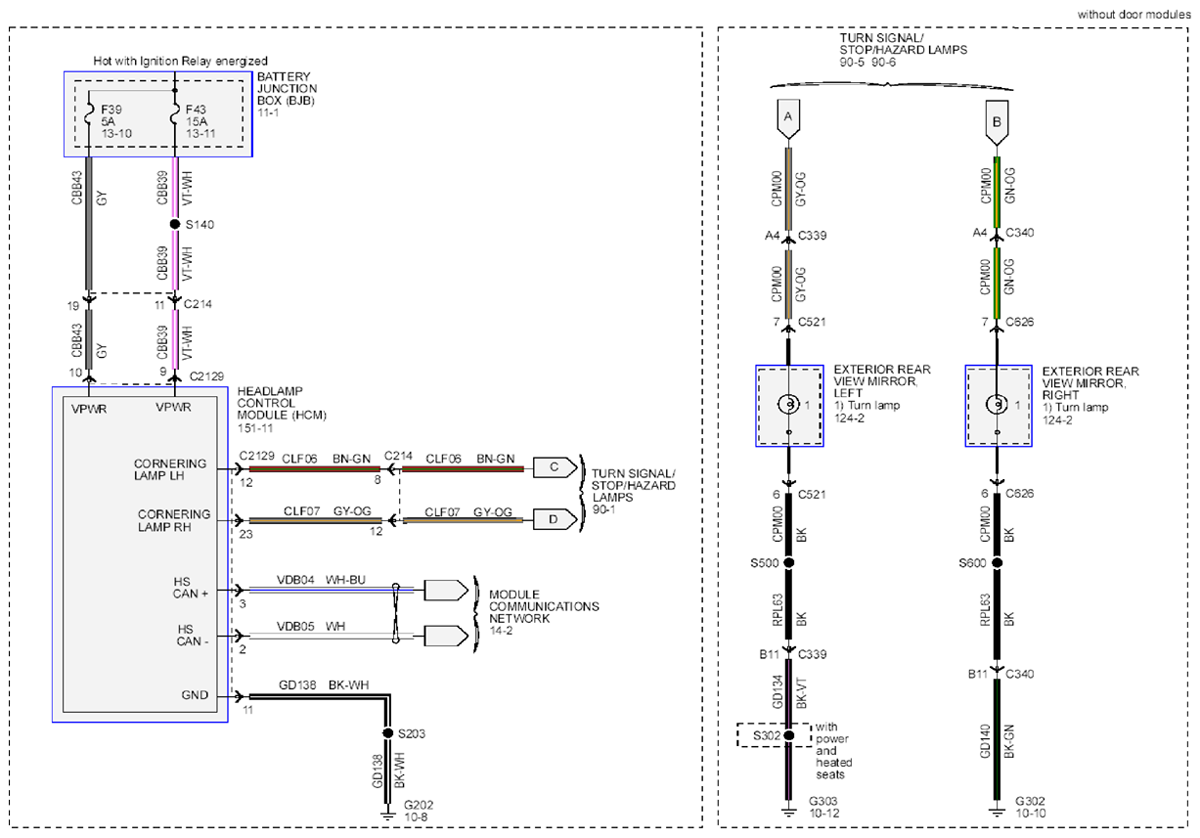

Fig 1: Turn Signal Stop Hazard Lamps - Wiring Diagram (HID)

G09255317

Courtesy of FORD MOTOR CO.
