5 Door

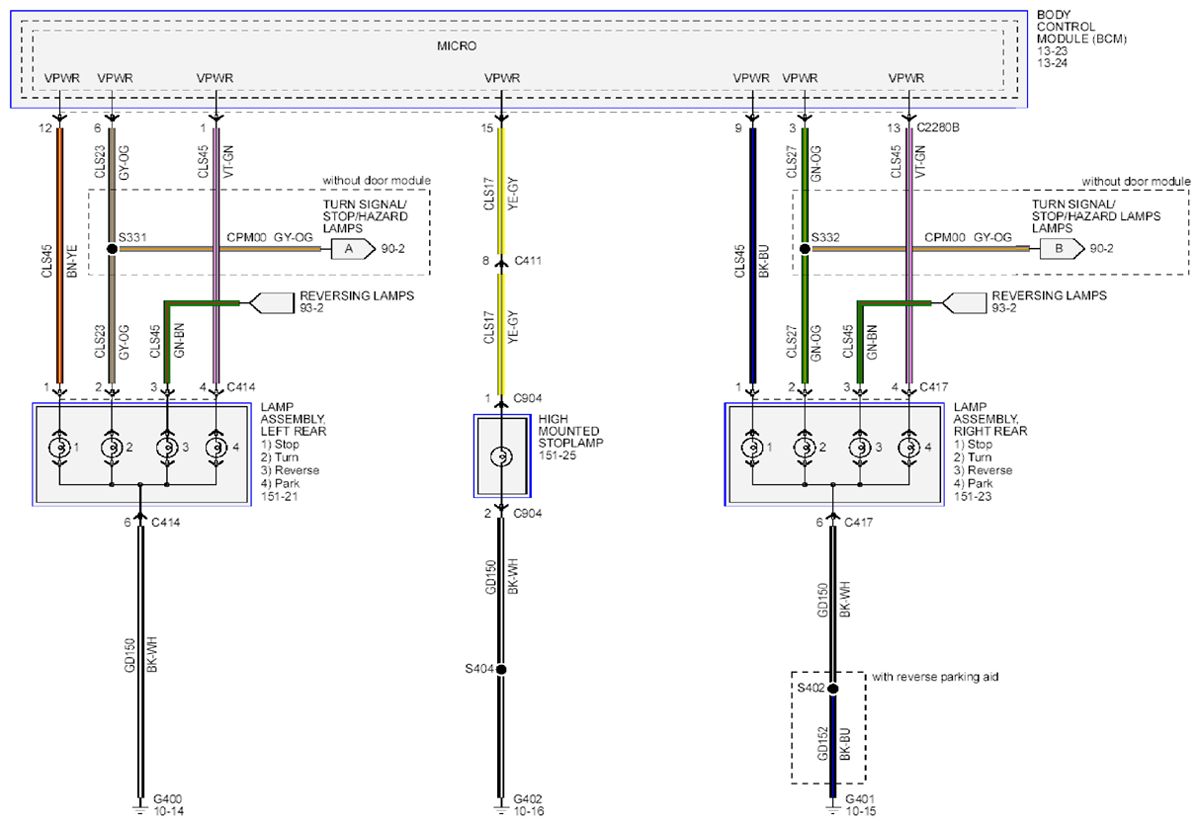

Fig 1: Turn Signal Stop Hazard Lamps - Wiring Diagram (5 Door)

G09255321

Courtesy of FORD MOTOR CO.
