Focus ST
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams -- Except Electric
>>
Transmission Controls
Transmission Controls

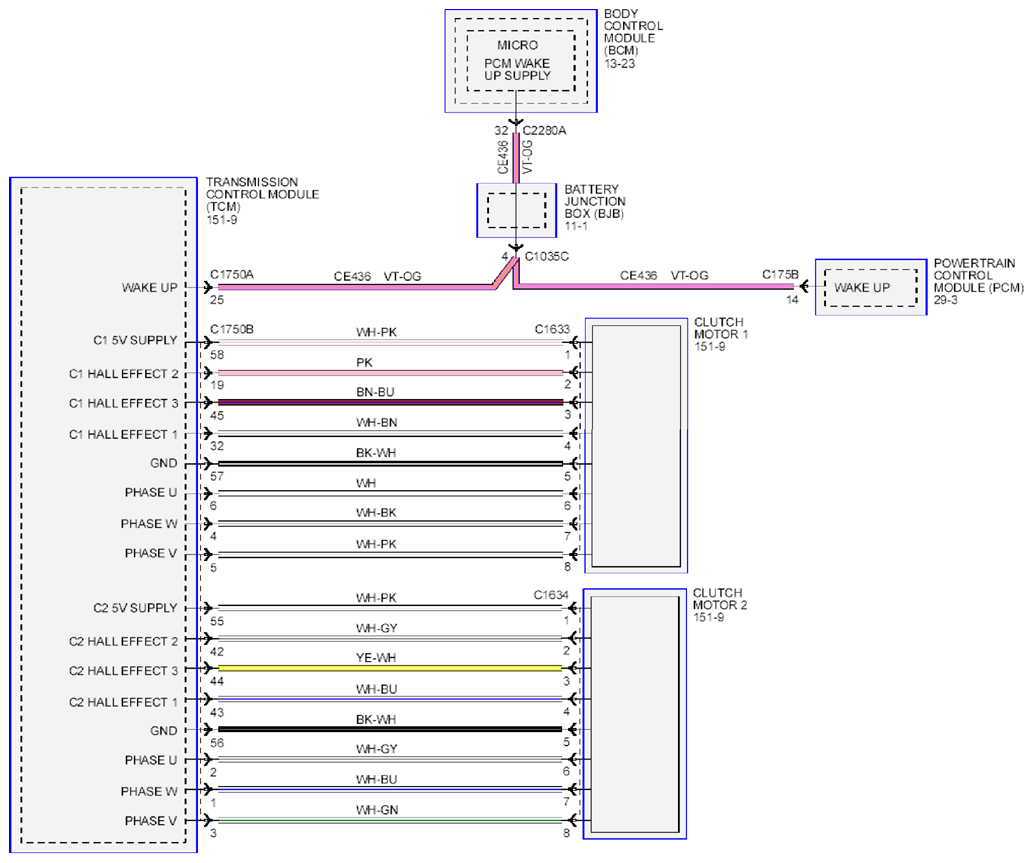

Fig 1: Transmission Controls - Wiring Diagram (1 Of 3)
Courtesy of FORD MOTOR CO.
Fig 2: Transmission Controls - Wiring Diagram (2 Of 3)
Courtesy of FORD MOTOR CO.
Fig 3: Transmission Controls - Wiring Diagram (3 Of 3)
Courtesy of FORD MOTOR CO.
