OEM Wiring Diagrams -- Except Electric
>>
Shift Interlock
>>
Without IA
Without IA

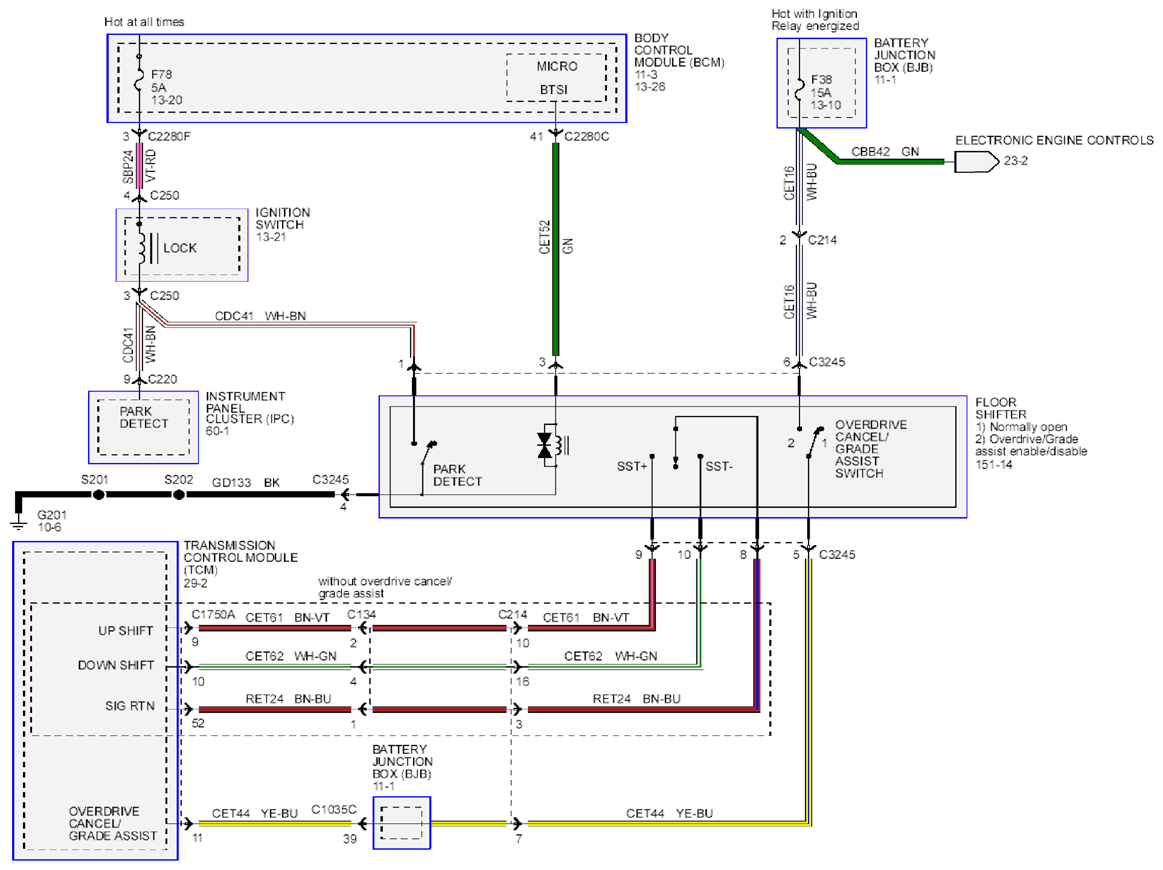

Fig 1: Shift Interlock - Wiring Diagram (Without IA)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
