Home >> Ford >> 2014 >> Focus ST >> Repair and Diagnosis >> Electrical >> Motors, Switches, Relays >> OEM Wiring Diagrams -- Except Electric >> Remote Keyless Entry And Alarm >> Without Door Modules

Without Door Modules

Fig 1: Remote Keyless Entry And Alarm - Wiring Diagram (Without Door Modules; 1 Of 3)
G09255361Courtesy of FORD MOTOR CO.

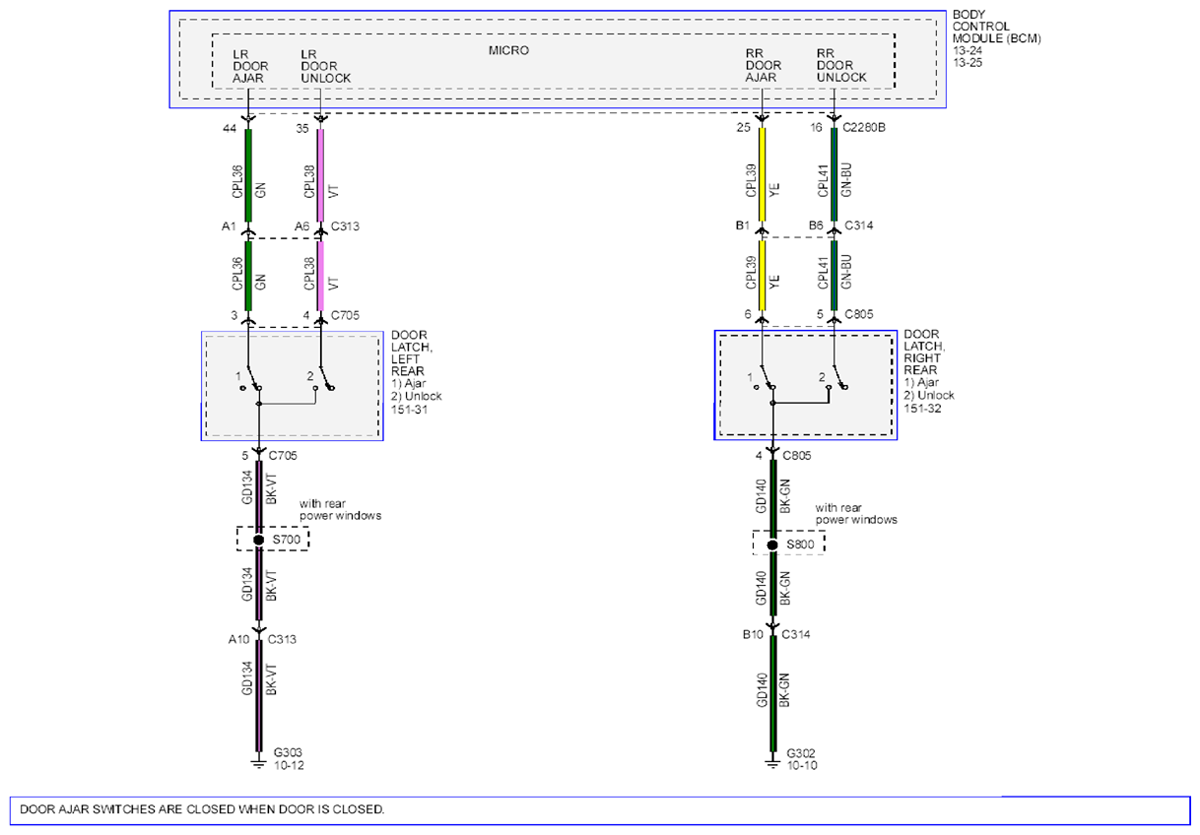

Fig 2: Remote Keyless Entry And Alarm - Wiring Diagram (Without Door Modules; 2 Of 3)
G09255362Courtesy of FORD MOTOR CO.

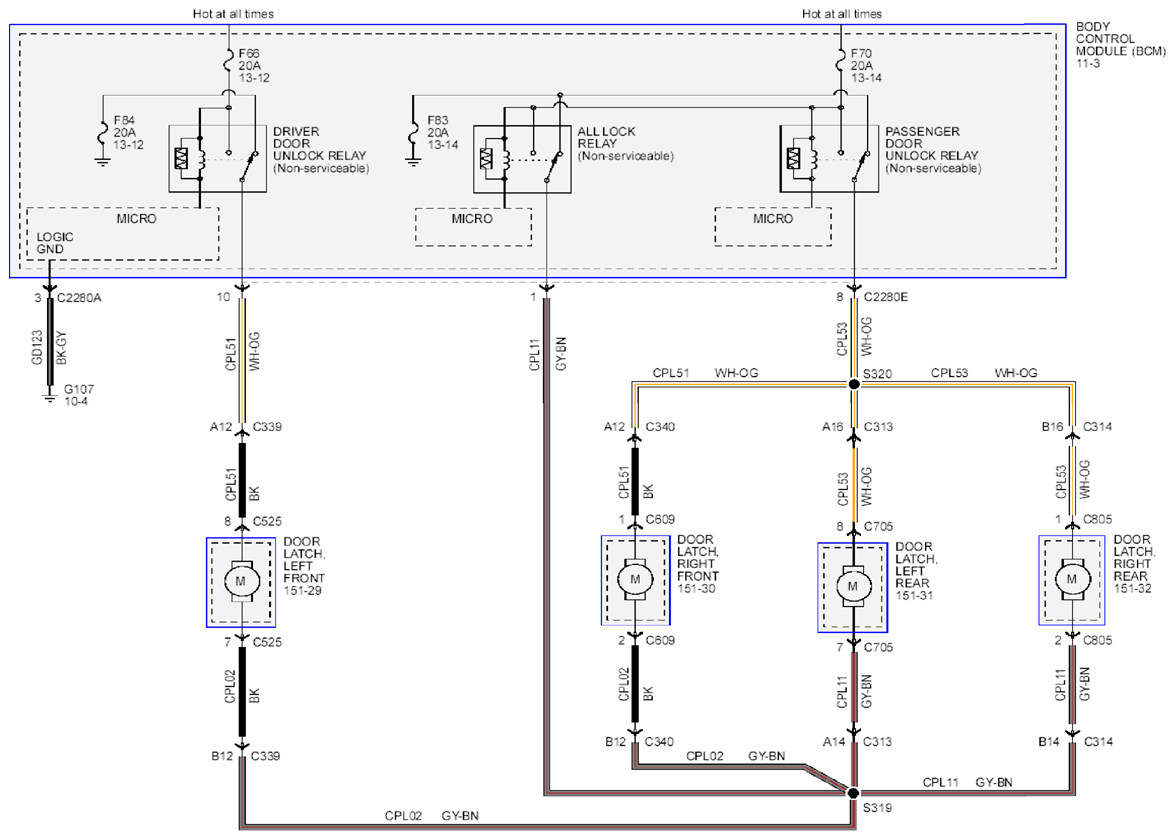

Fig 3: Remote Keyless Entry And Alarm - Wiring Diagram (Without Door Modules; 3 Of 3)
G09255363Courtesy of FORD MOTOR CO.
