Remote Keyless Entry And Alarm
>>
With IA
With IA

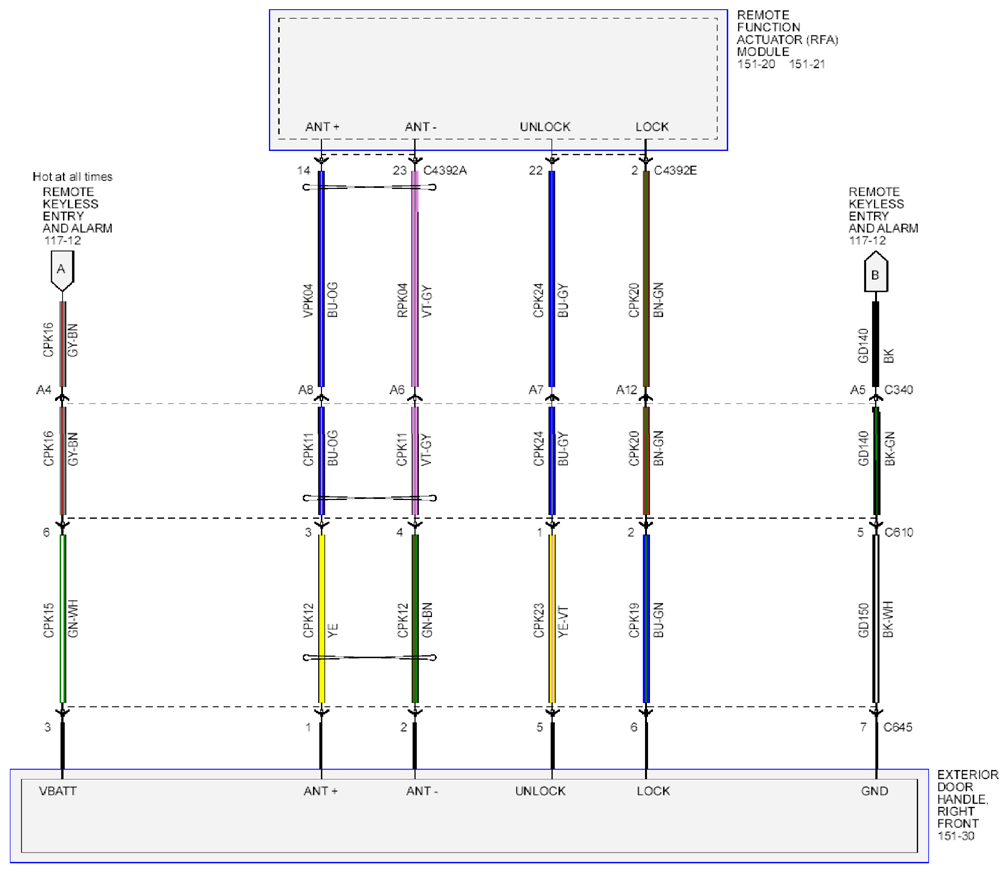

Fig 1: Remote Keyless Entry And Alarm - Wiring Diagram (With IA; 1 Of 4)
Courtesy of FORD MOTOR CO.

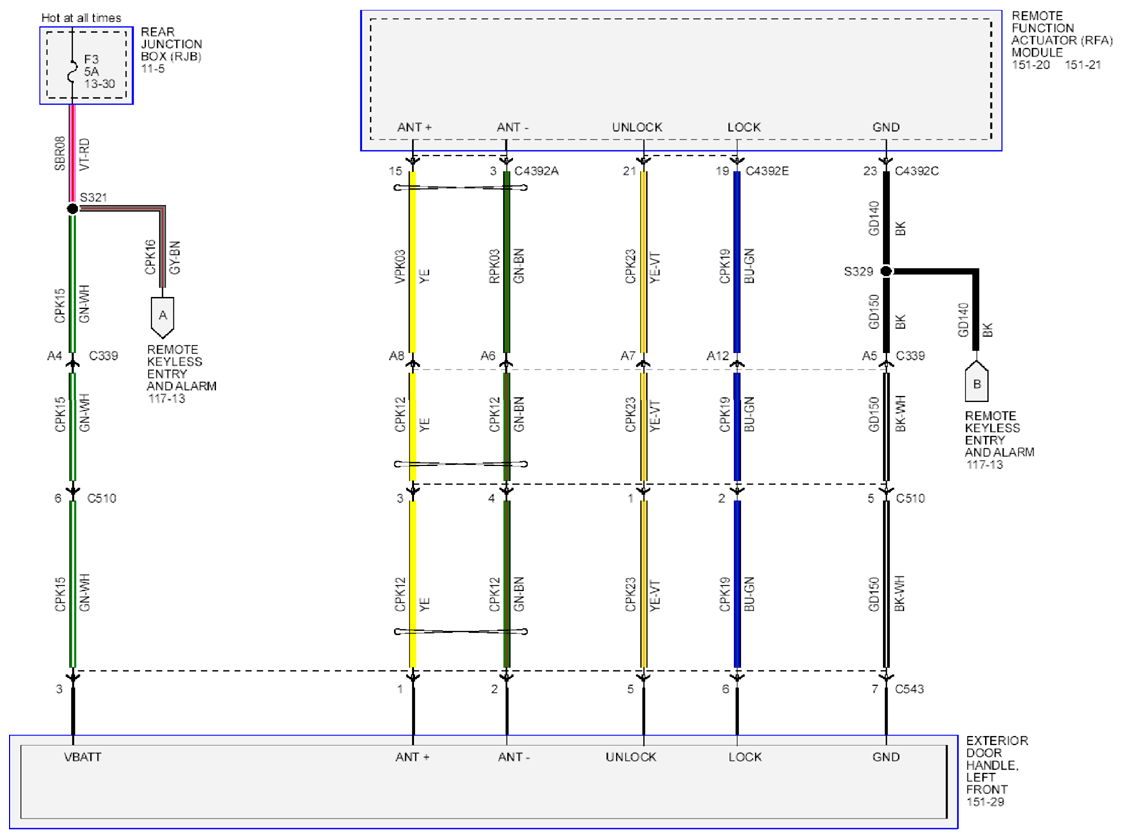

Fig 2: Remote Keyless Entry And Alarm - Wiring Diagram (With IA; 2 Of 4)
Courtesy of FORD MOTOR CO.
Fig 3: Remote Keyless Entry And Alarm - Wiring Diagram (With IA; 3 Of 4)
Courtesy of FORD MOTOR CO.
Fig 4: Remote Keyless Entry And Alarm - Wiring Diagram (With IA; 4 Of 4)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
