With Door Modules

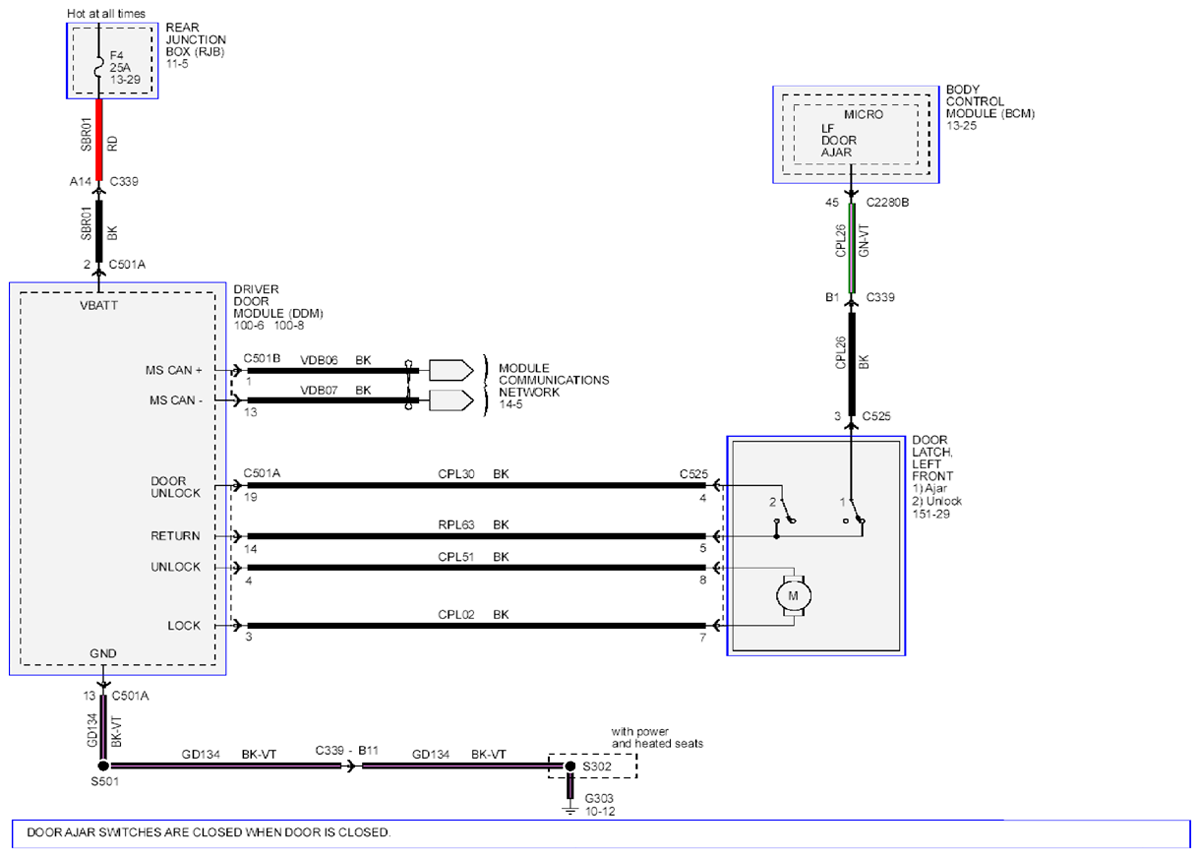

Fig 1: Remote Keyless Entry And Alarm - Wiring Diagram (With Door Modules; 1 Of 4)
G09255364Courtesy of FORD MOTOR CO.

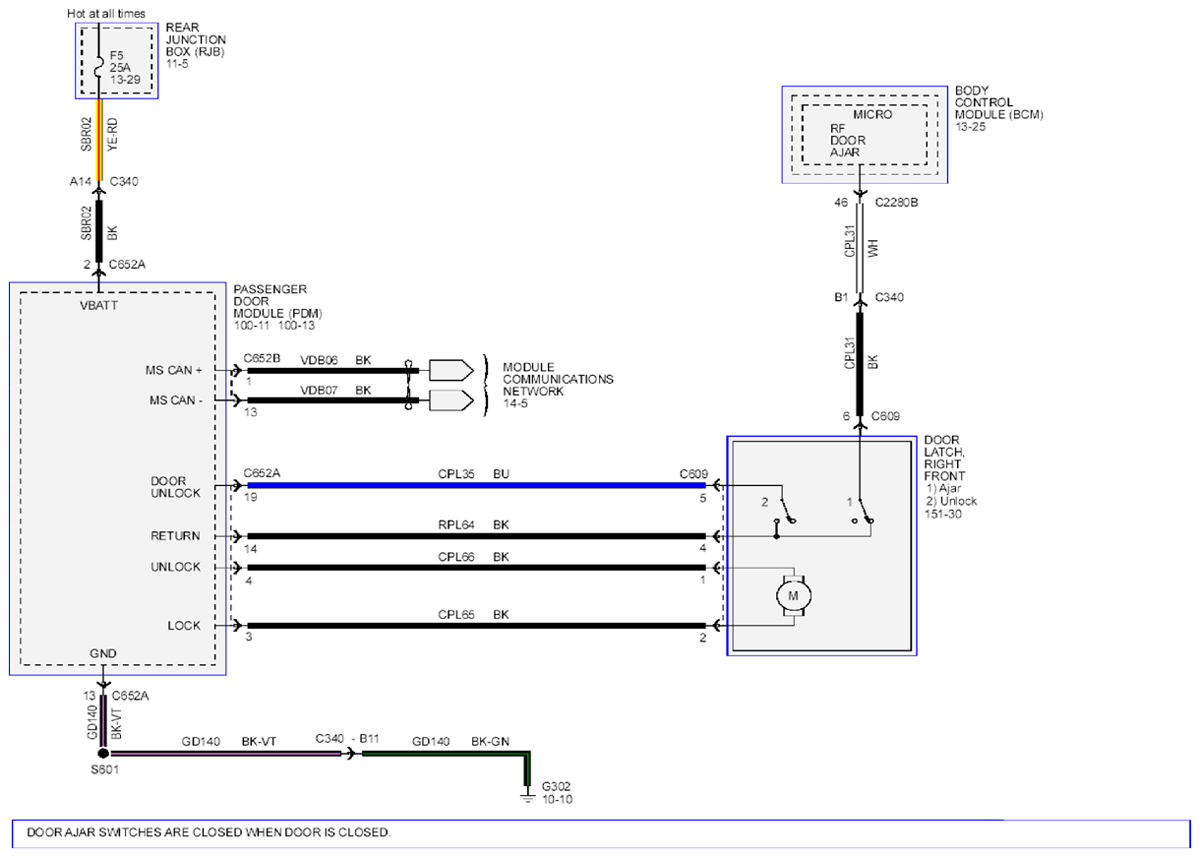

Fig 2: Remote Keyless Entry And Alarm - Wiring Diagram (With Door Modules; 2 Of 4)
G09255365Courtesy of FORD MOTOR CO.
Fig 3: Remote Keyless Entry And Alarm - Wiring Diagram (With Door Modules; 3 Of 4)
G09255366Courtesy of FORD MOTOR CO.

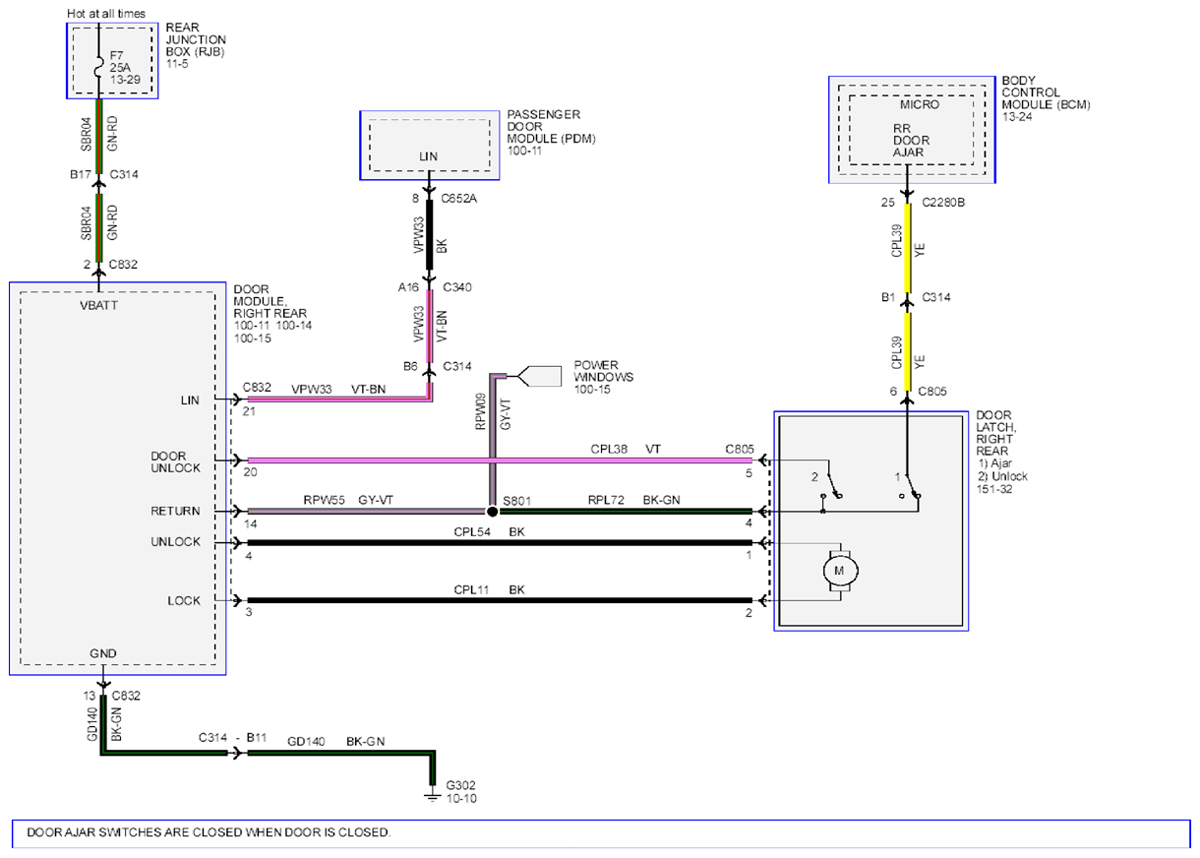

Fig 4: Remote Keyless Entry And Alarm - Wiring Diagram (With Door Modules; 4 Of 4)
G09255367Courtesy of FORD MOTOR CO.
