Remote Keyless Entry And Alarm: Notes

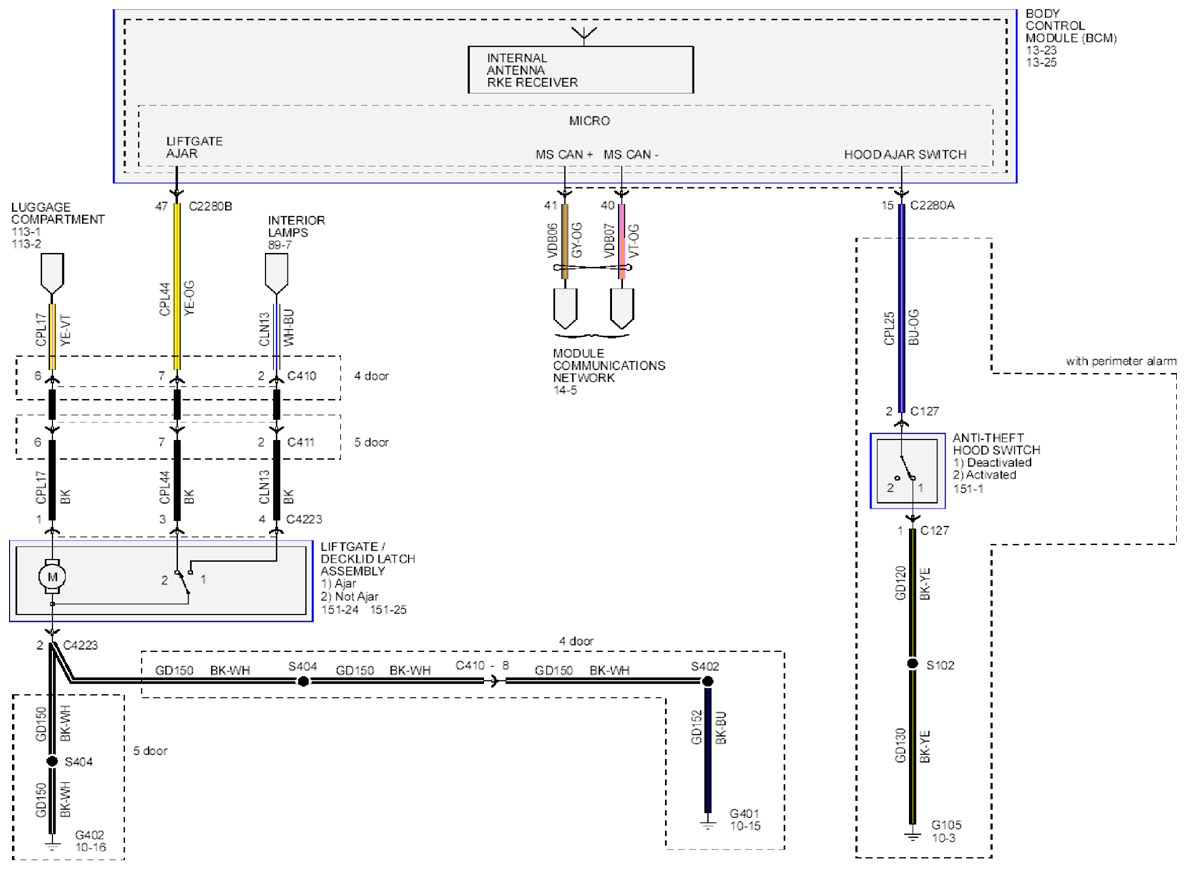

Fig 1: Remote Keyless Entry And Alarm - Wiring Diagram

G09255368

Courtesy of FORD MOTOR CO.
