Without Door Modules

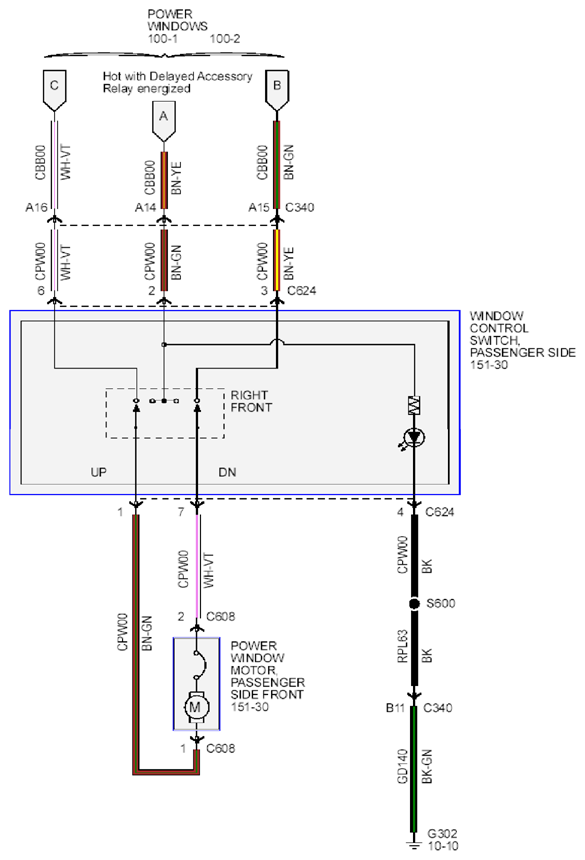

Fig 1: Power Windows - Wiring Diagram (Without Door Modules)

G09255329

Courtesy of FORD MOTOR CO.
