Without Door Modules Without Rear Power Windows

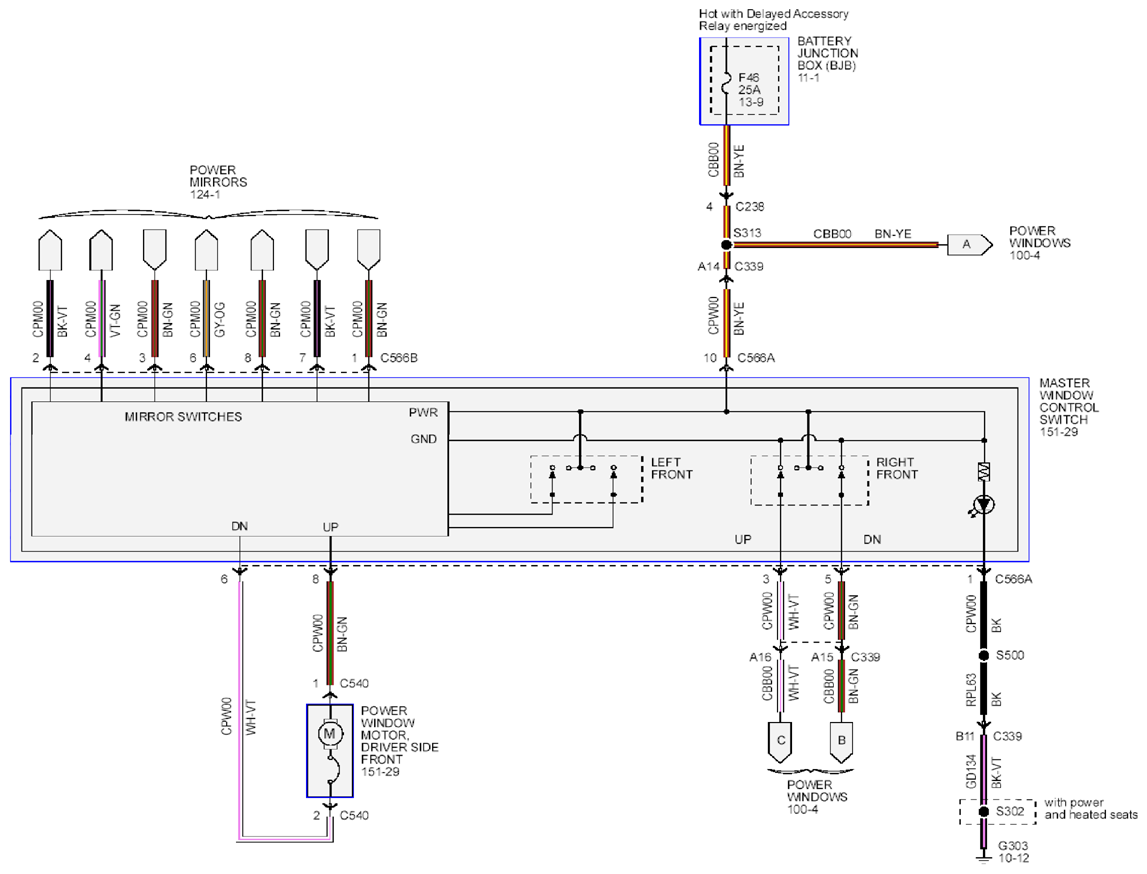

Fig 1: Power Windows - Wiring Diagram (Without Door Modules, Without Rear Power Windows)

G09255326

Courtesy of FORD MOTOR CO.
