Without Door Modules With Rear Power Windows

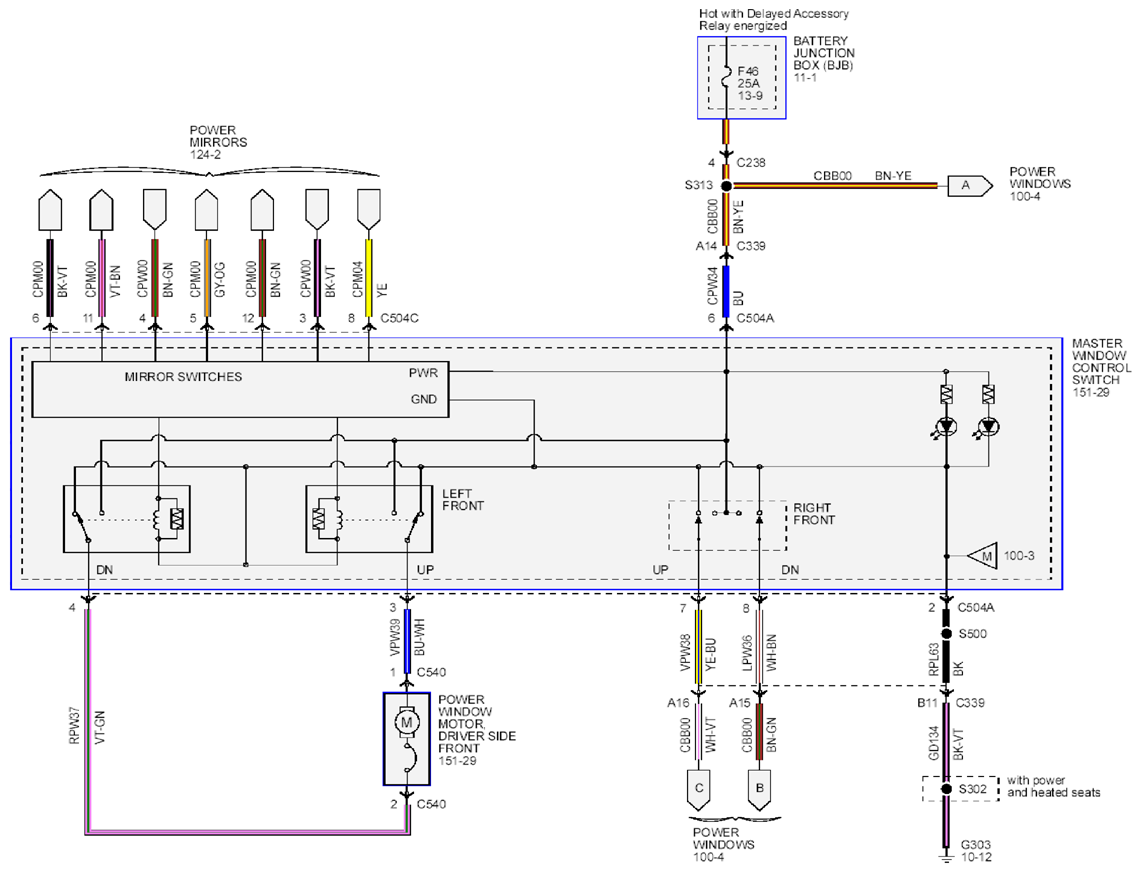

Fig 1: Power Windows - Wiring Diagram (Without Door Modules, With Rear Power Windows)
G09255327Courtesy of FORD MOTOR CO.

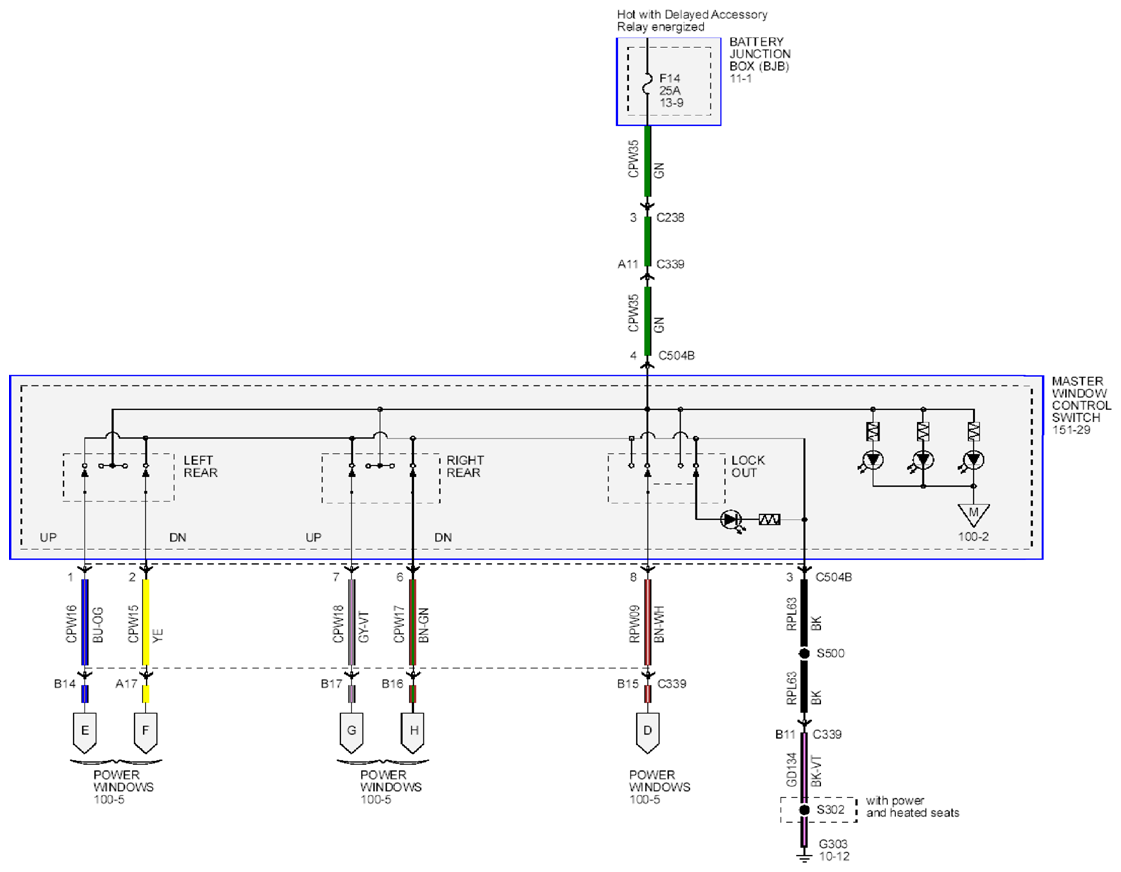

Fig 1: Power Windows - Wiring Diagram (Without Door Modules, With Rear Power Windows)
G09255328Courtesy of FORD MOTOR CO.

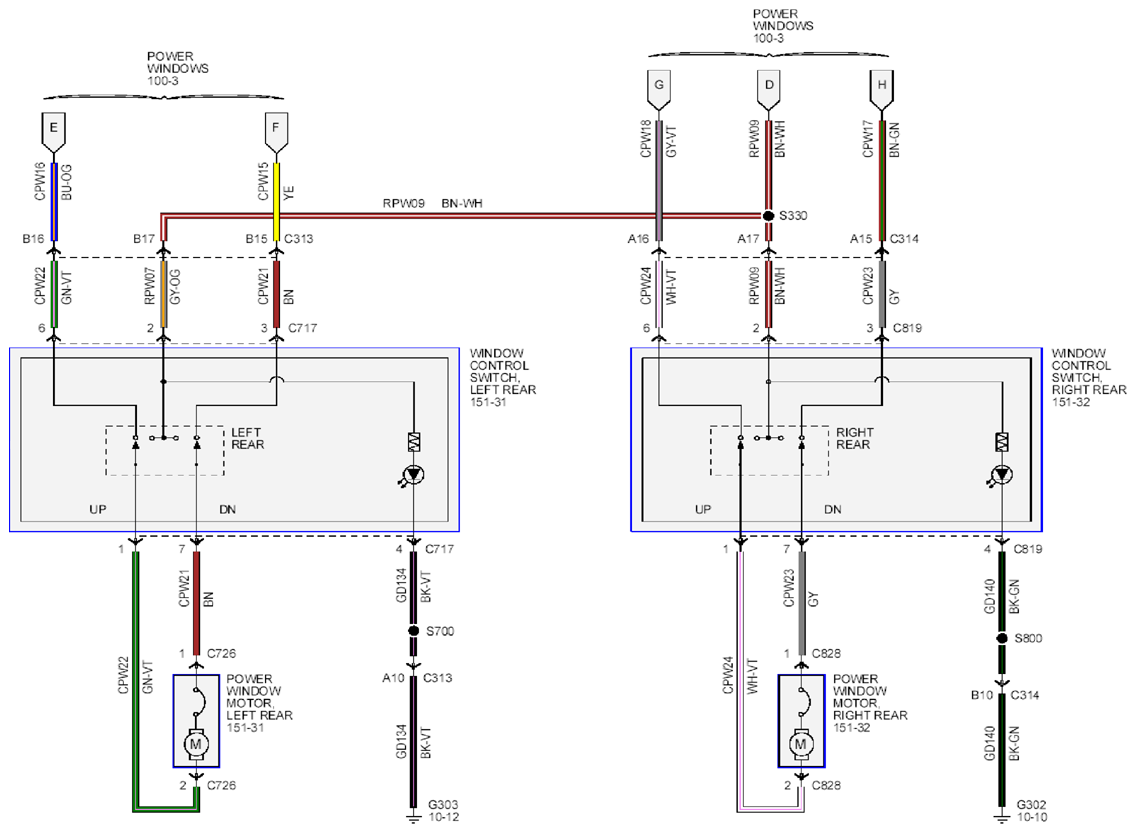

Fig 1: Power Windows - Wiring Diagram (Without Door Modules With Rear Power Windows)
G09255330Courtesy of FORD MOTOR CO.
