With Door Modules

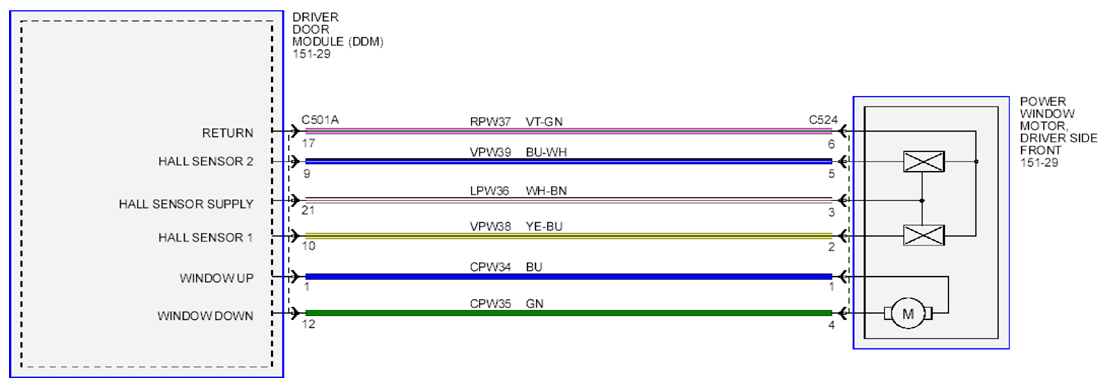

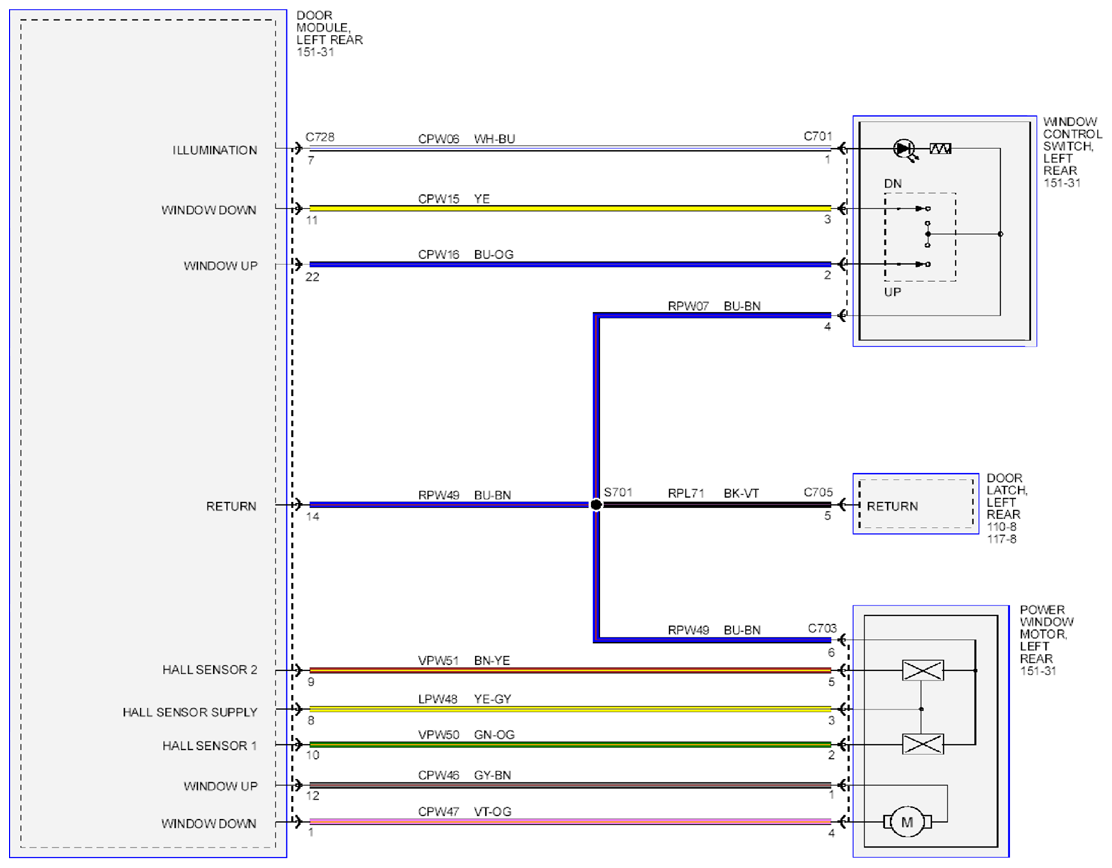

Fig 1: Power Windows - Wiring Diagram (With Door Modules; 1 Of 10)

Courtesy of FORD MOTOR CO.

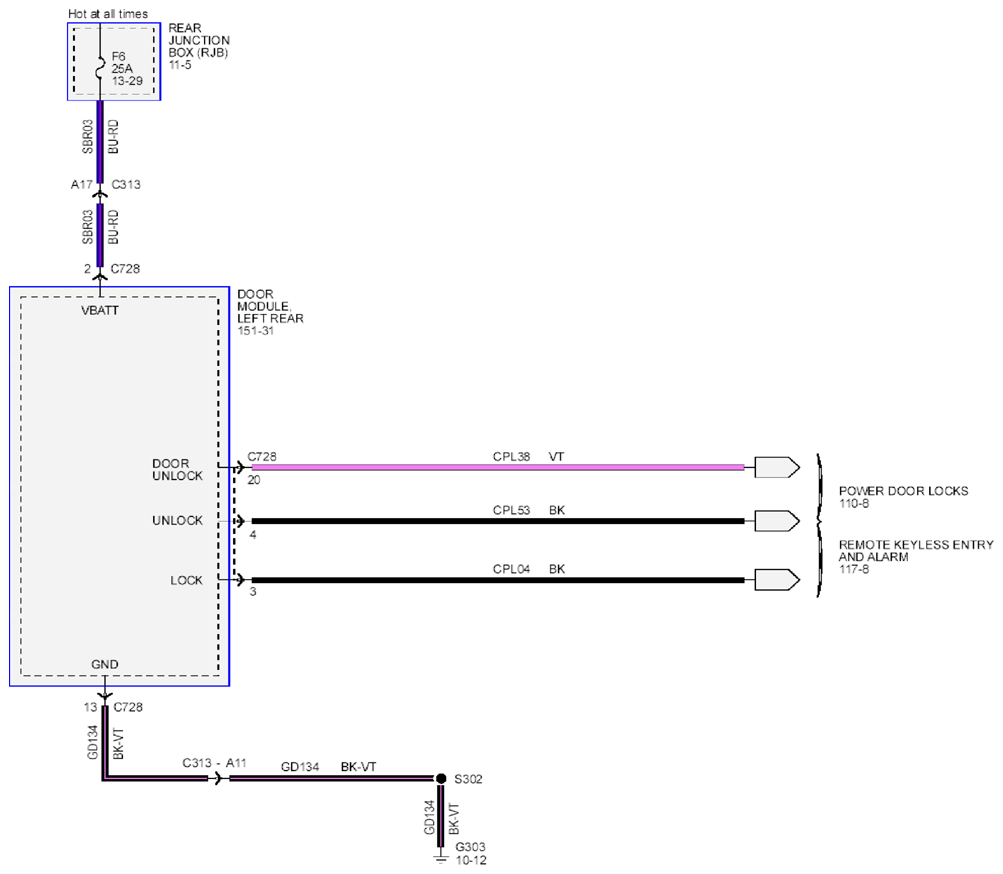

Fig 2: Power Windows - Wiring Diagram (With Door Modules; 2 Of 10)

Courtesy of FORD MOTOR CO.

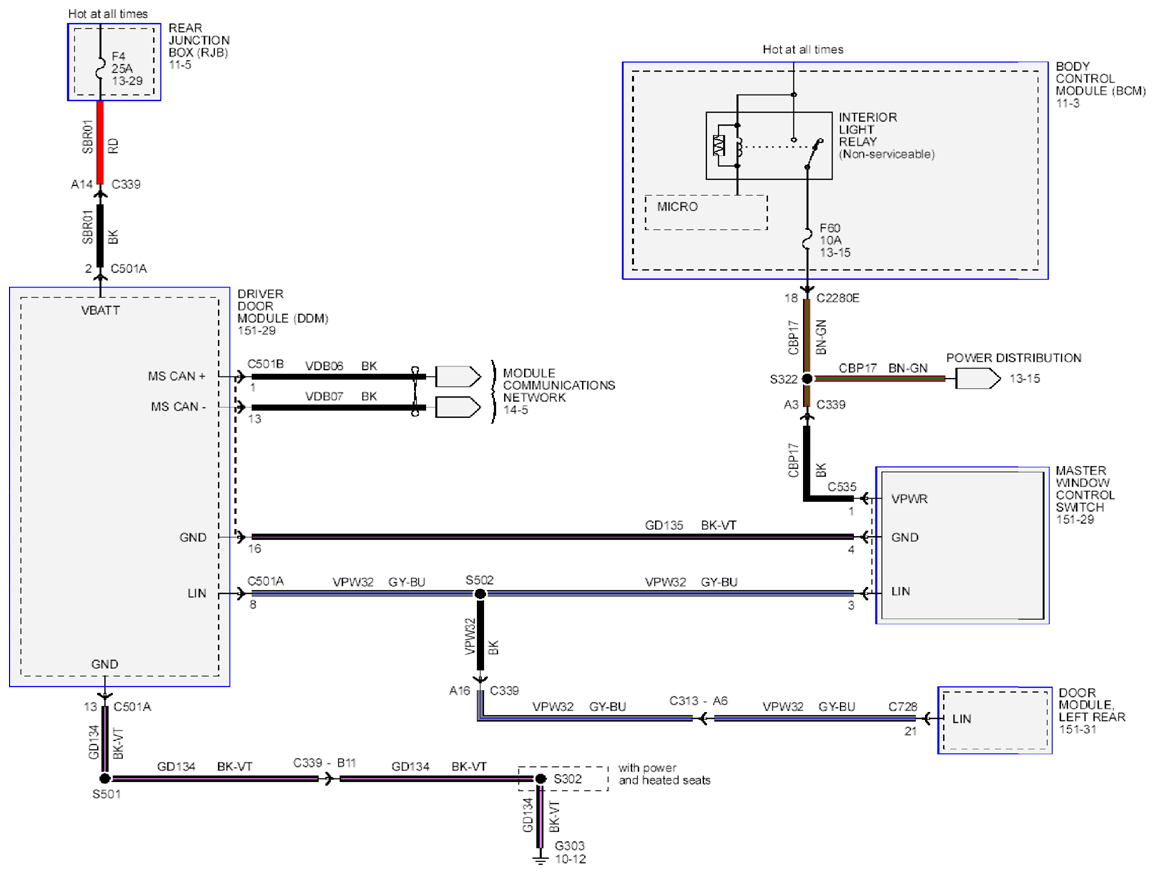

Fig 3: Power Windows - Wiring Diagram (With Door Modules; 3 Of 10)

Courtesy of FORD MOTOR CO.

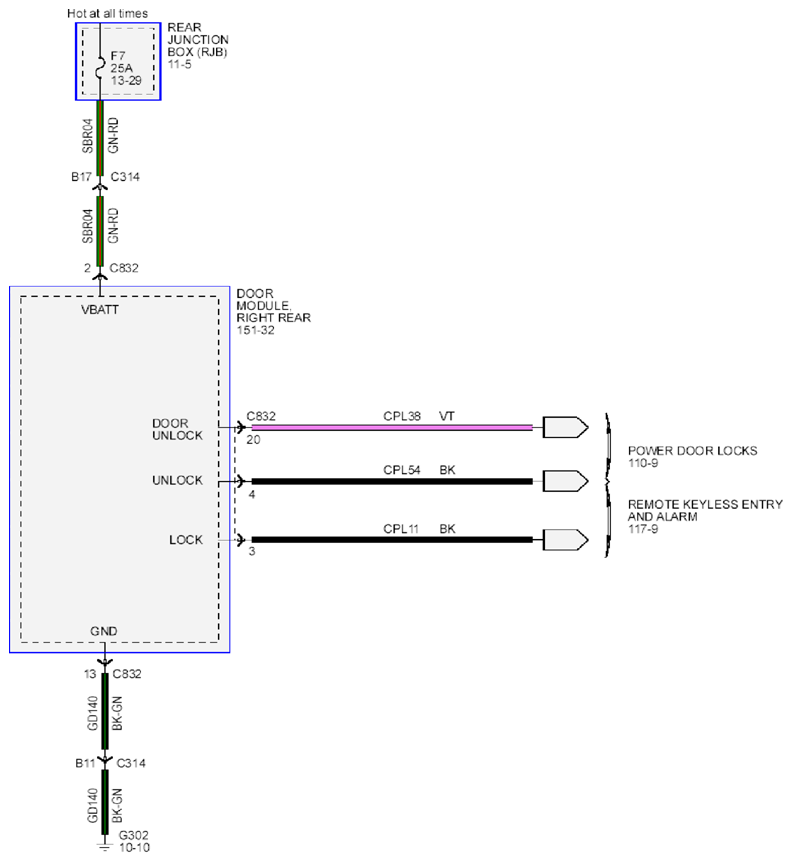

Fig 4: Power Windows - Wiring Diagram (With Door Modules; 4 Of 10)

Courtesy of FORD MOTOR CO.

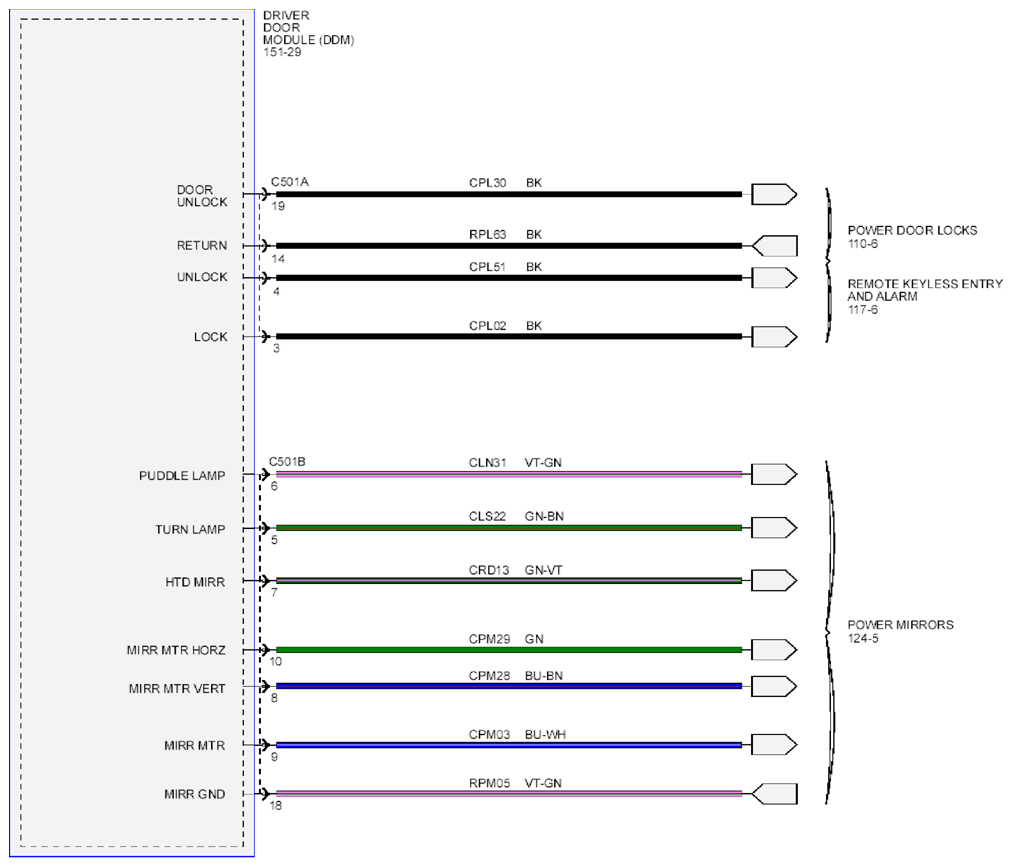

Fig 5: Power Windows - Wiring Diagram (With Door Modules; 5 Of 10)

Courtesy of FORD MOTOR CO.

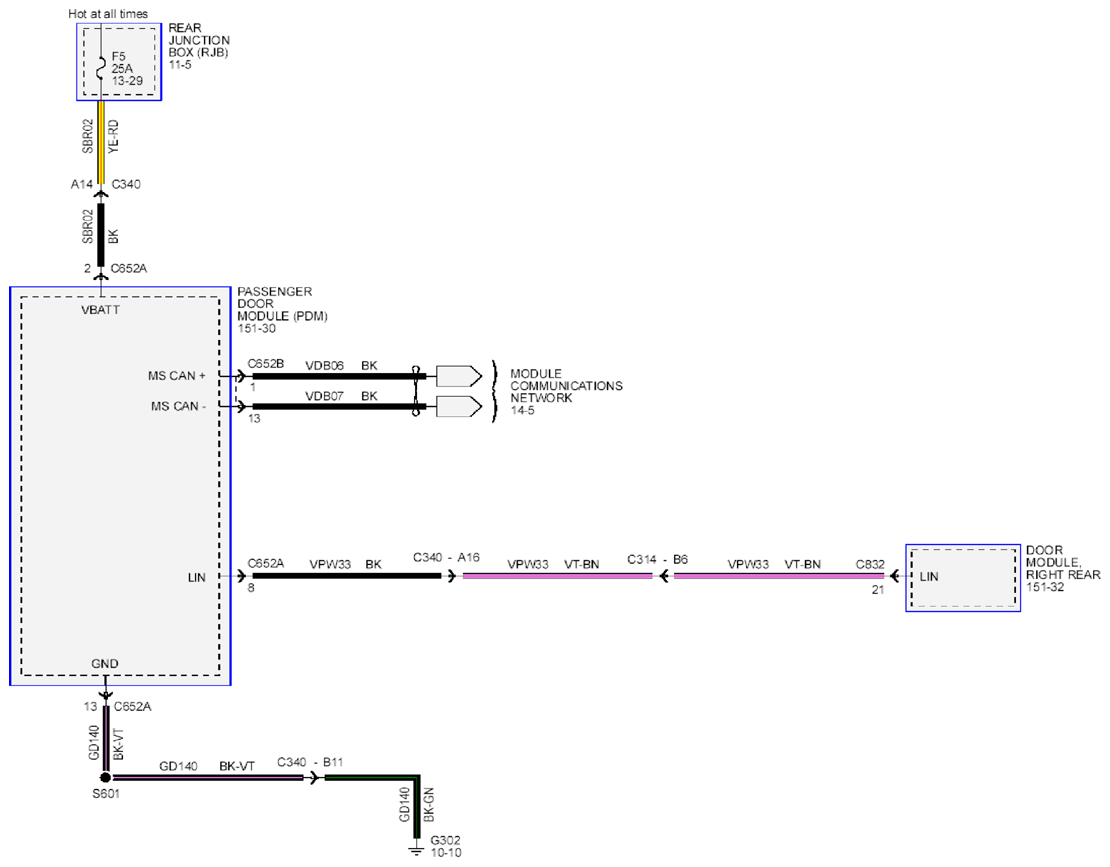

Fig 6: Power Windows - Wiring Diagram (With Door Modules; 6 Of 10)

Courtesy of FORD MOTOR CO.

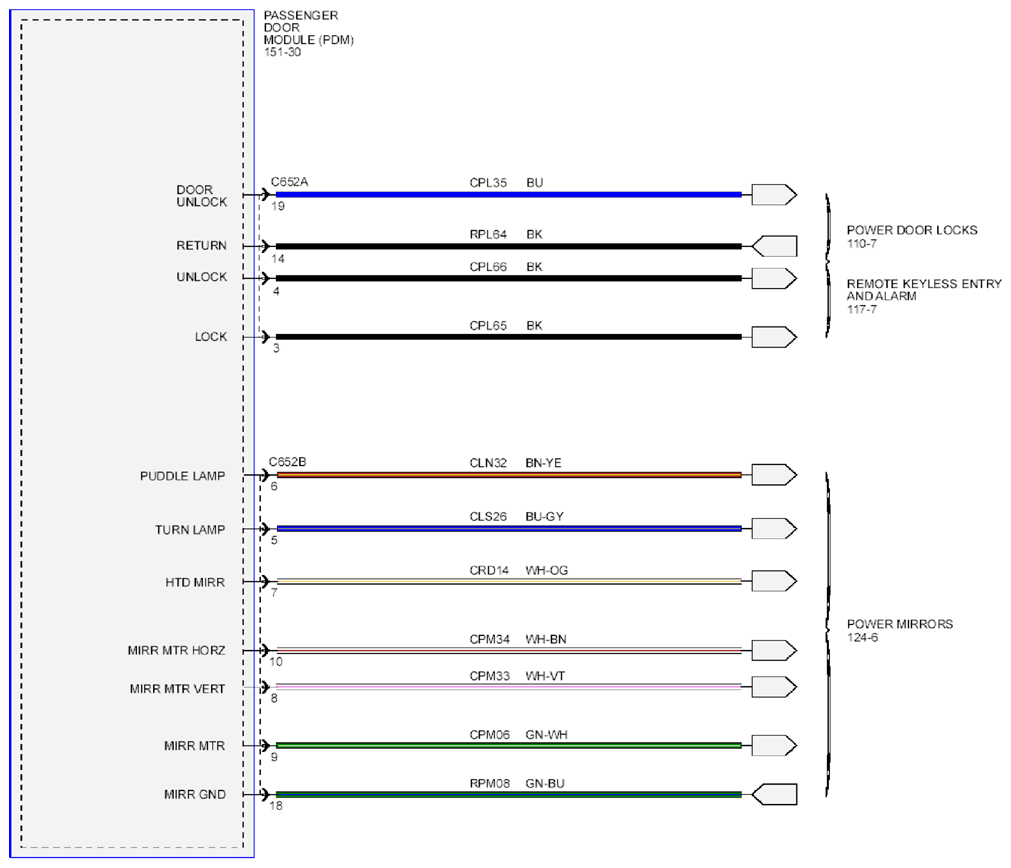

Fig 7: Power Windows - Wiring Diagram (With Door Modules; 7 Of 10)

Courtesy of FORD MOTOR CO.

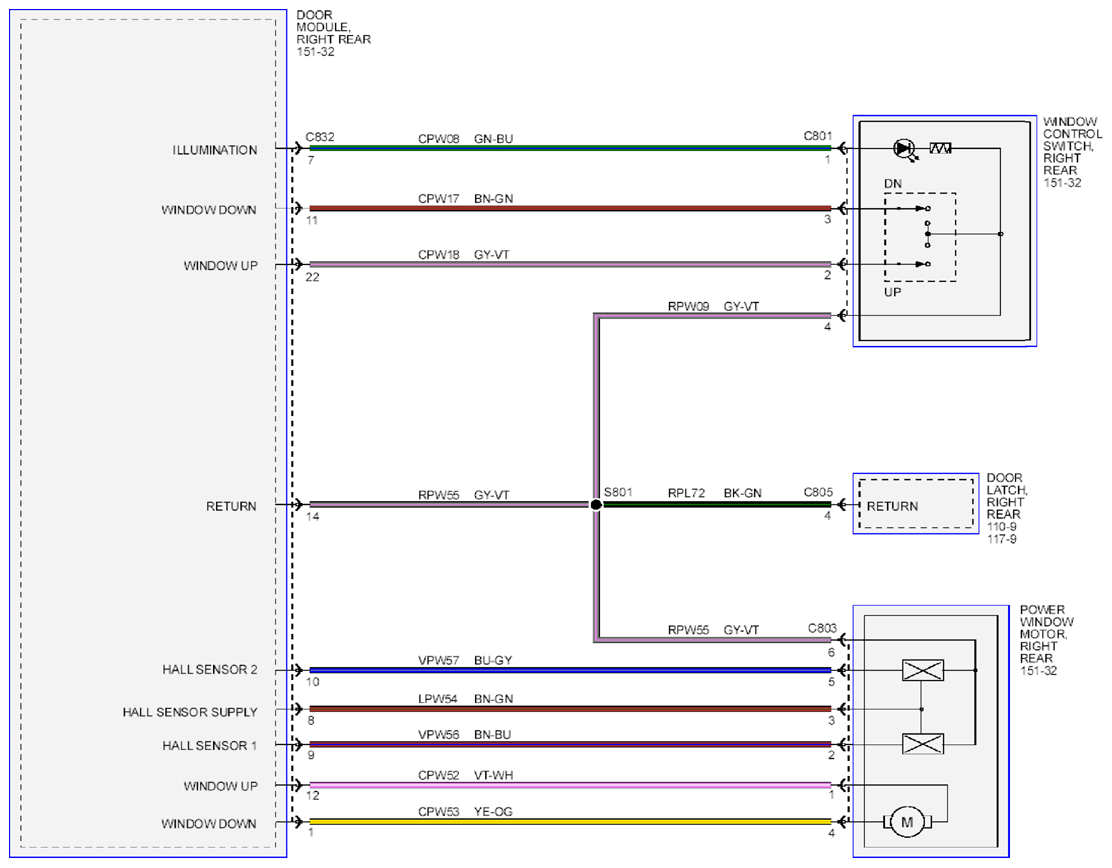

Fig 8: Power Windows - Wiring Diagram (With Door Modules; 8 Of 10)

Courtesy of FORD MOTOR CO.

Fig 9: Power Windows - Wiring Diagram (With Door Modules; 9 Of 10)

Courtesy of FORD MOTOR CO.

Fig 10: Power Windows - Wiring Diagram (With Door Modules; 10 Of 10)

Courtesy of FORD MOTOR CO.
