With Door Modules

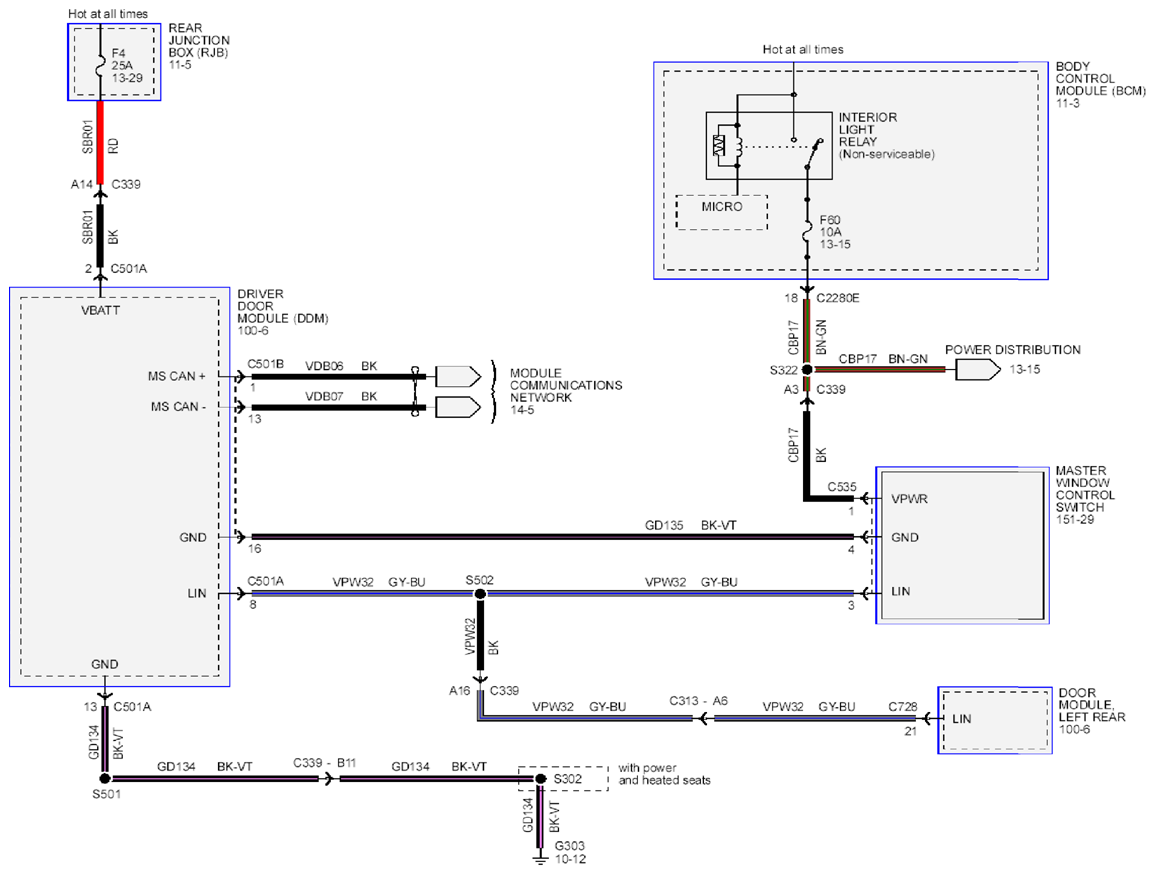

Fig 1: Power Mirrors - Wiring Diagram (With Door Modules; 1 Of 4)
G09255380Courtesy of FORD MOTOR CO.

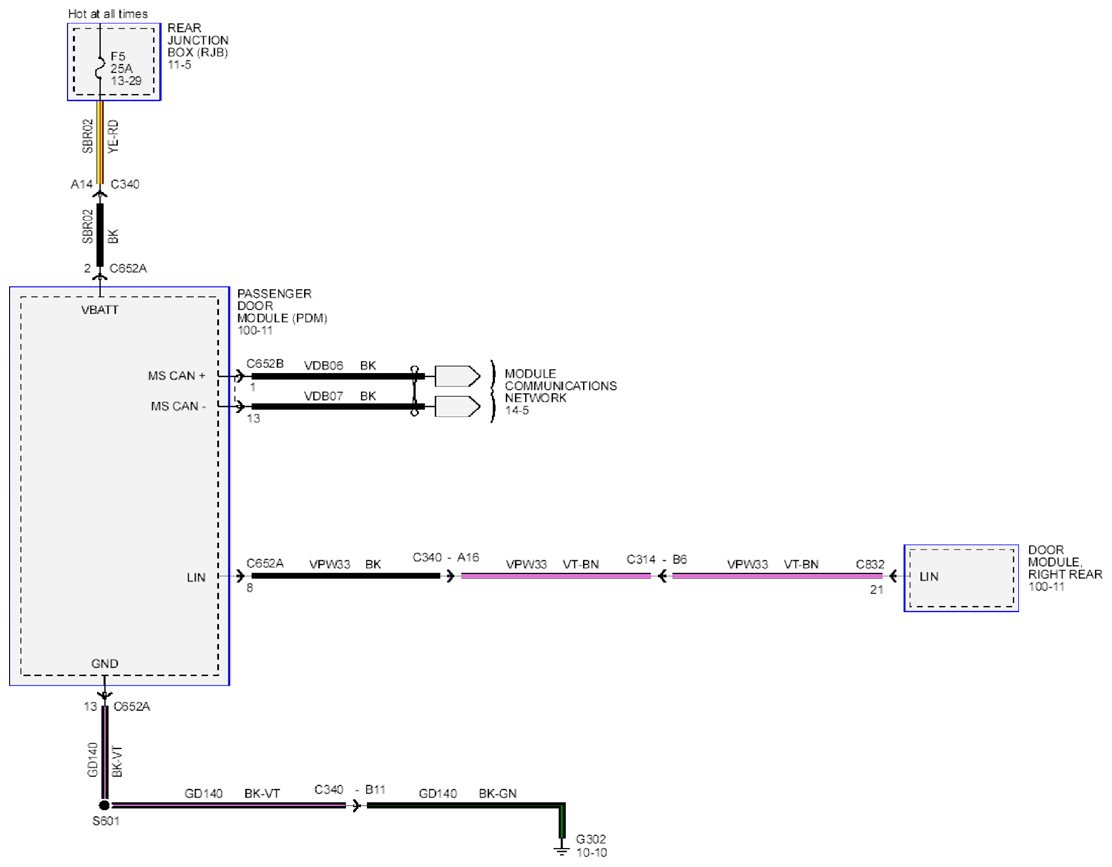

Fig 2: Power Mirrors - Wiring Diagram (With Door Modules; 2 Of 4)
G09255381Courtesy of FORD MOTOR CO.

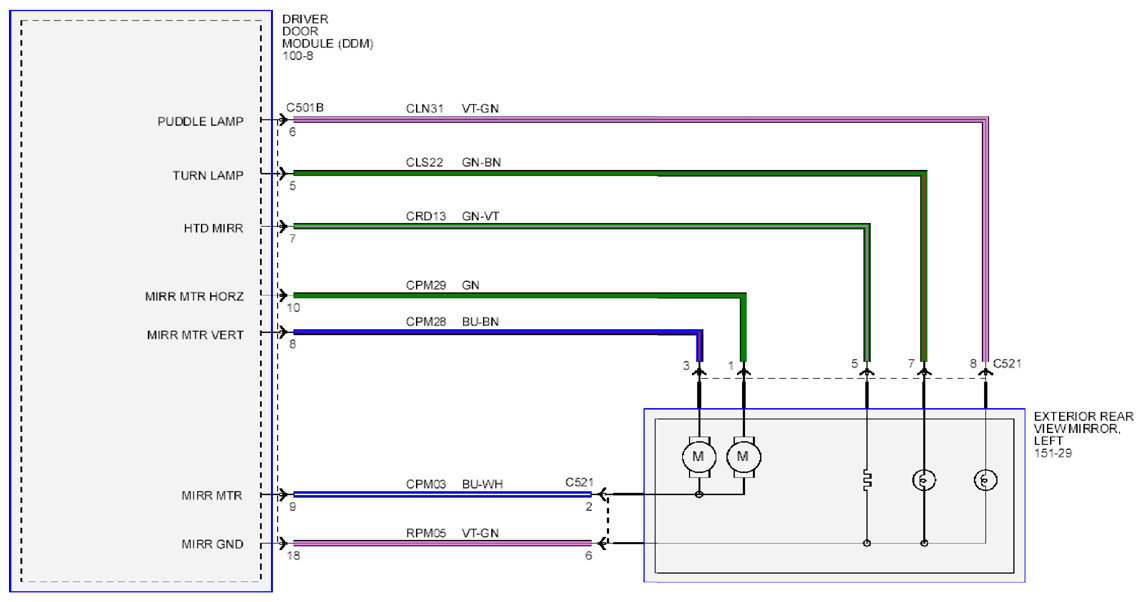

Fig 3: Power Mirrors - Wiring Diagram (With Door Modules; 3 Of 4)
G09255382Courtesy of FORD MOTOR CO.

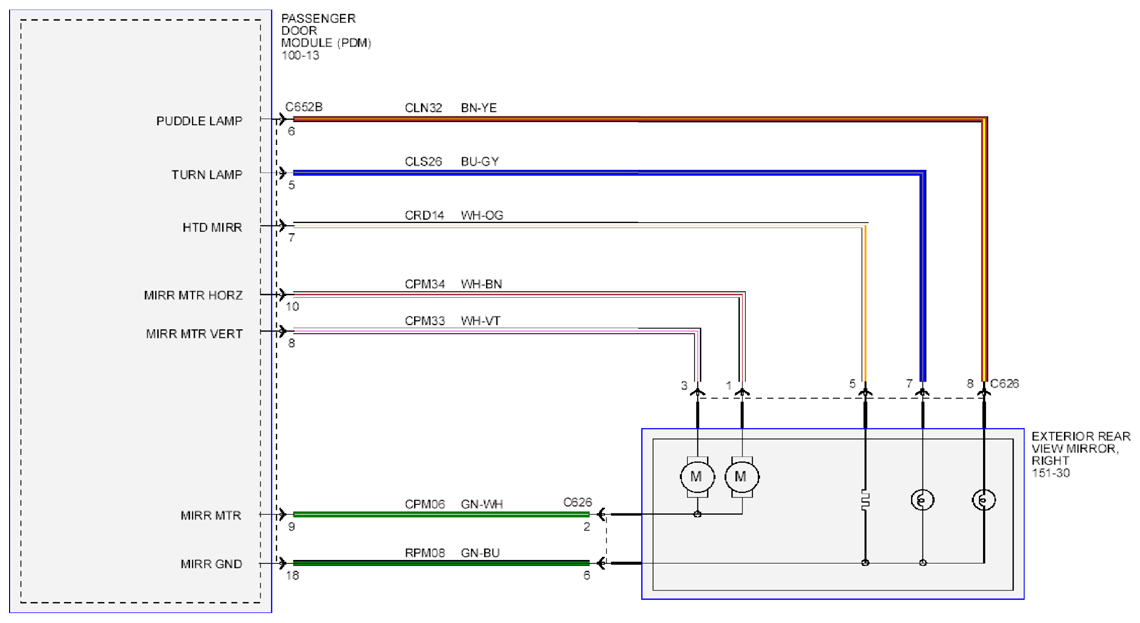

Fig 4: Power Mirrors - Wiring Diagram (With Door Modules; 4 Of 4)
G09255383Courtesy of FORD MOTOR CO.
