Without Door Modules

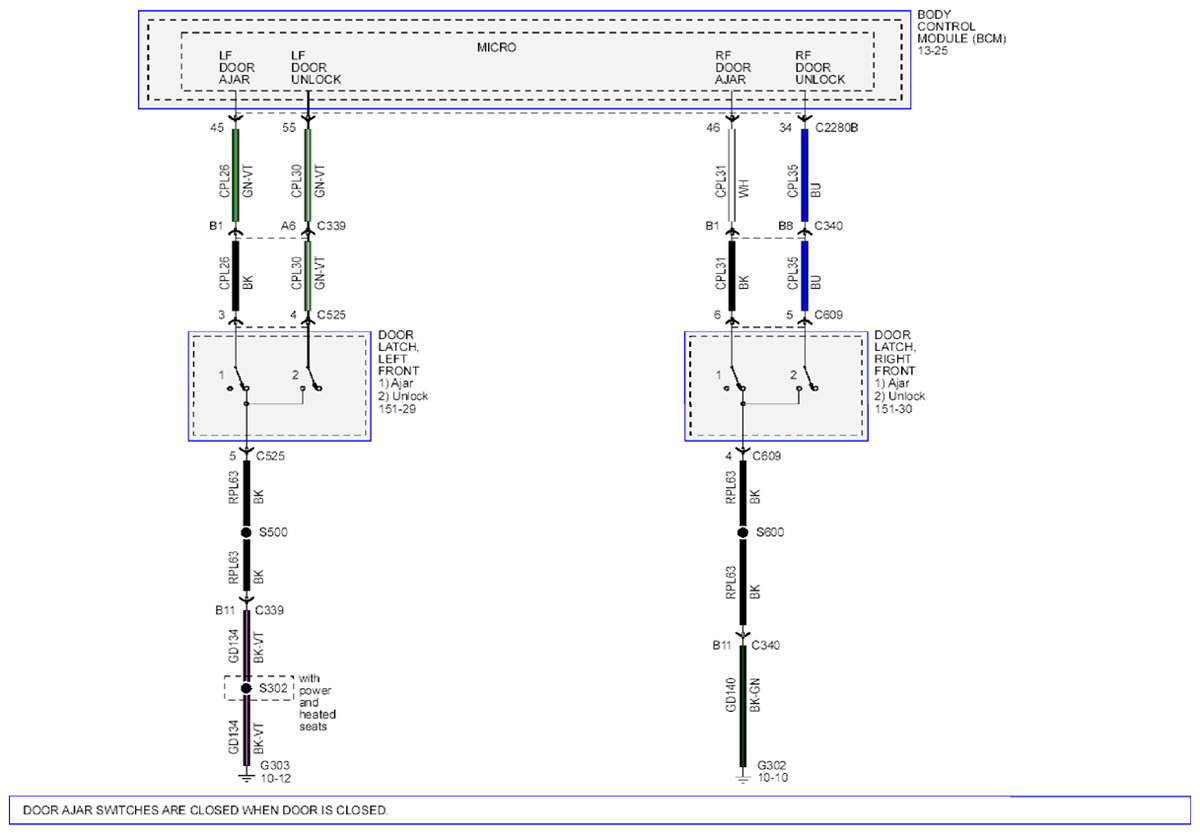

Fig 1: Power Door Locks - Wiring Diagram (Without Door Modules; 1 Of 3)
G09255344Courtesy of FORD MOTOR CO.

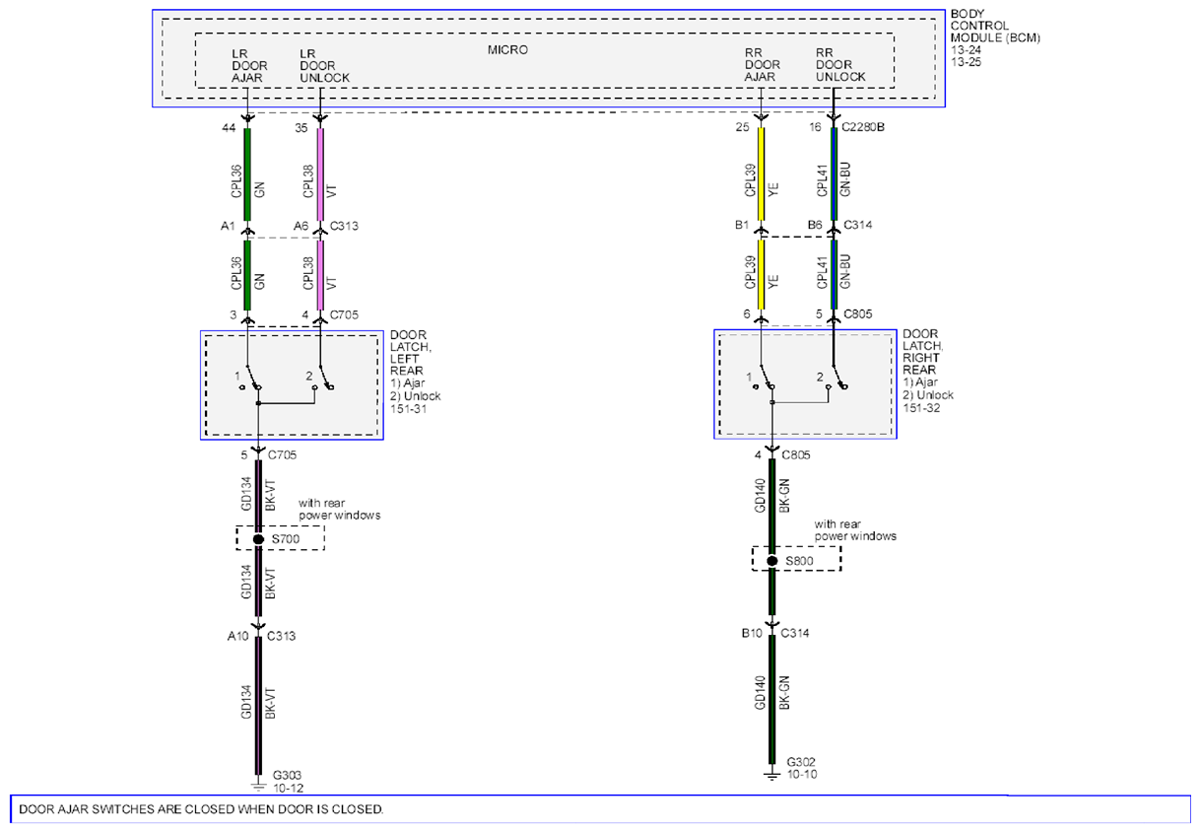

Fig 2: Power Door Locks - Wiring Diagram (Without Door Modules; 2 Of 3)
G09255345Courtesy of FORD MOTOR CO.

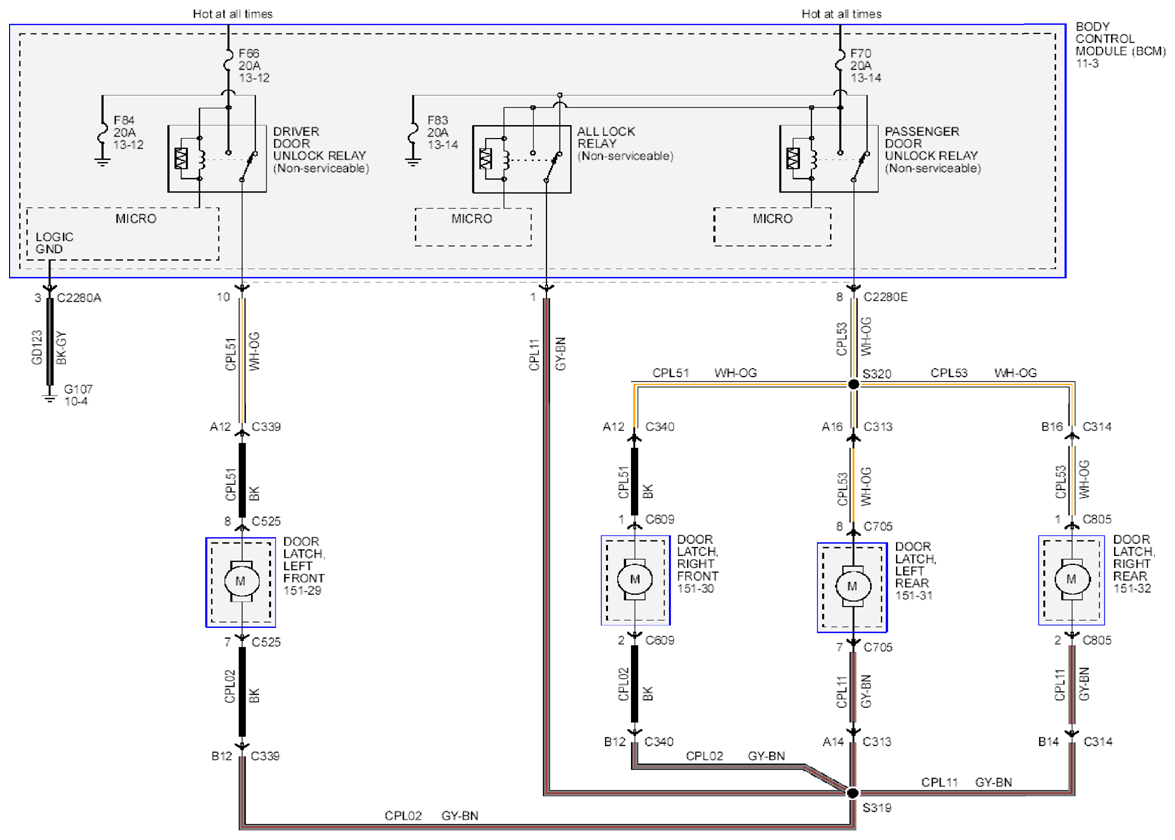

Fig 3: Power Door Locks - Wiring Diagram (Without Door Modules; 3 Of 3)
G09255346Courtesy of FORD MOTOR CO.
