With Door Modules

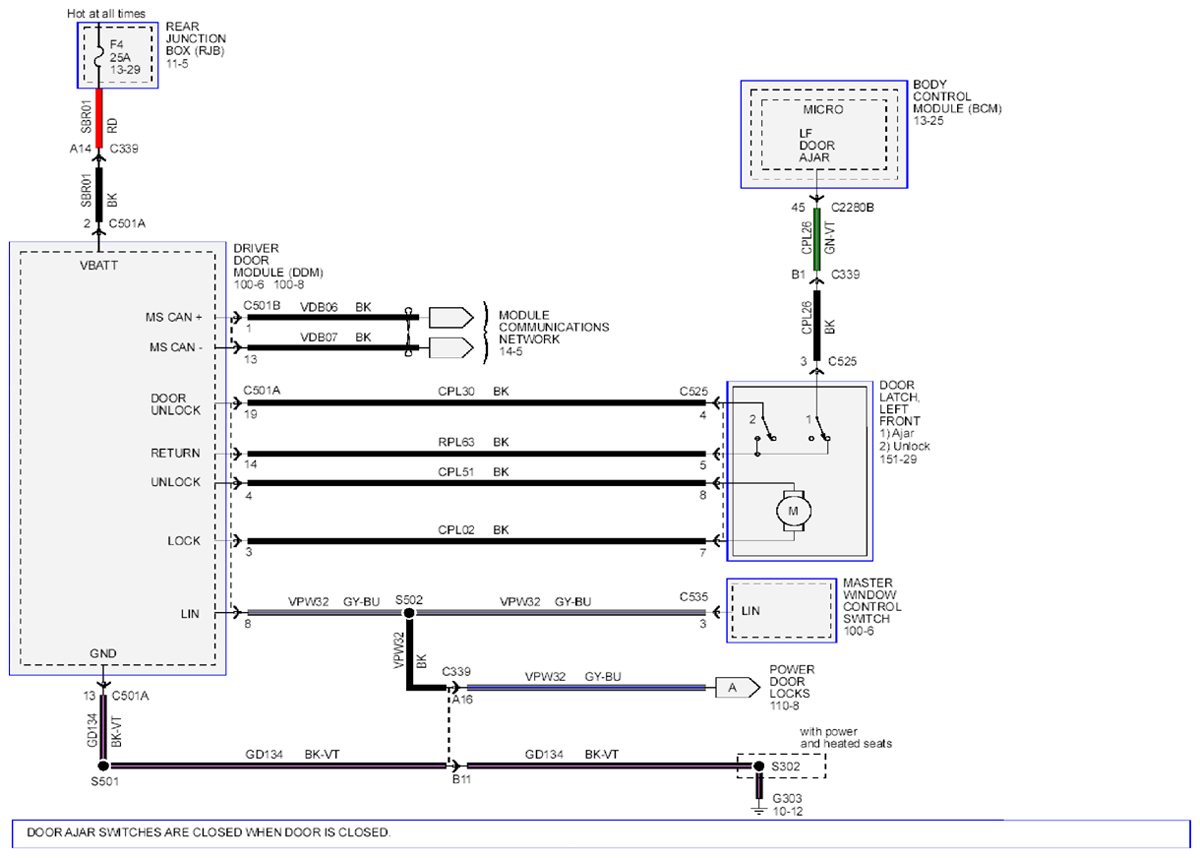

Fig 1: Power Door Locks - Wiring Diagram (With Door Modules; 1 Of 4)
G09255347Courtesy of FORD MOTOR CO.

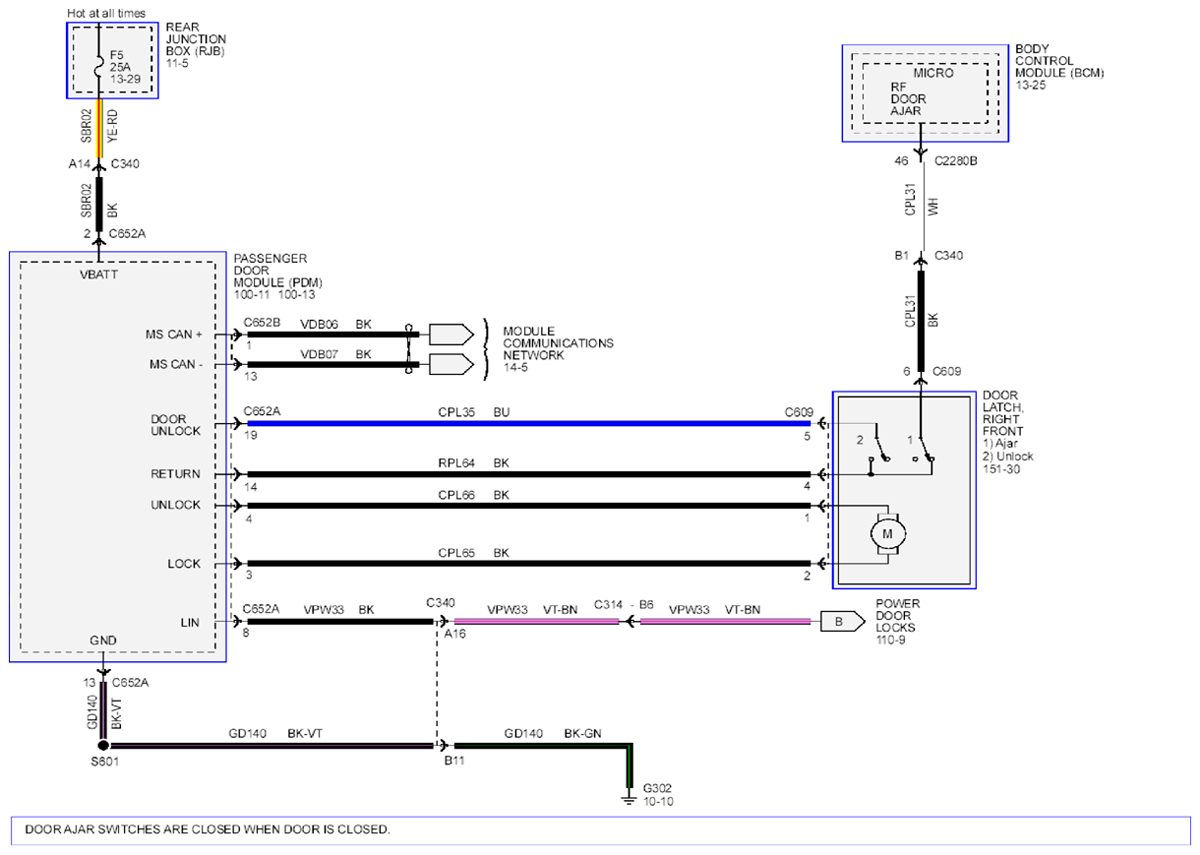

Fig 2: Power Door Locks - Wiring Diagram (With Door Modules; 2 Of 4)
G09255348Courtesy of FORD MOTOR CO.

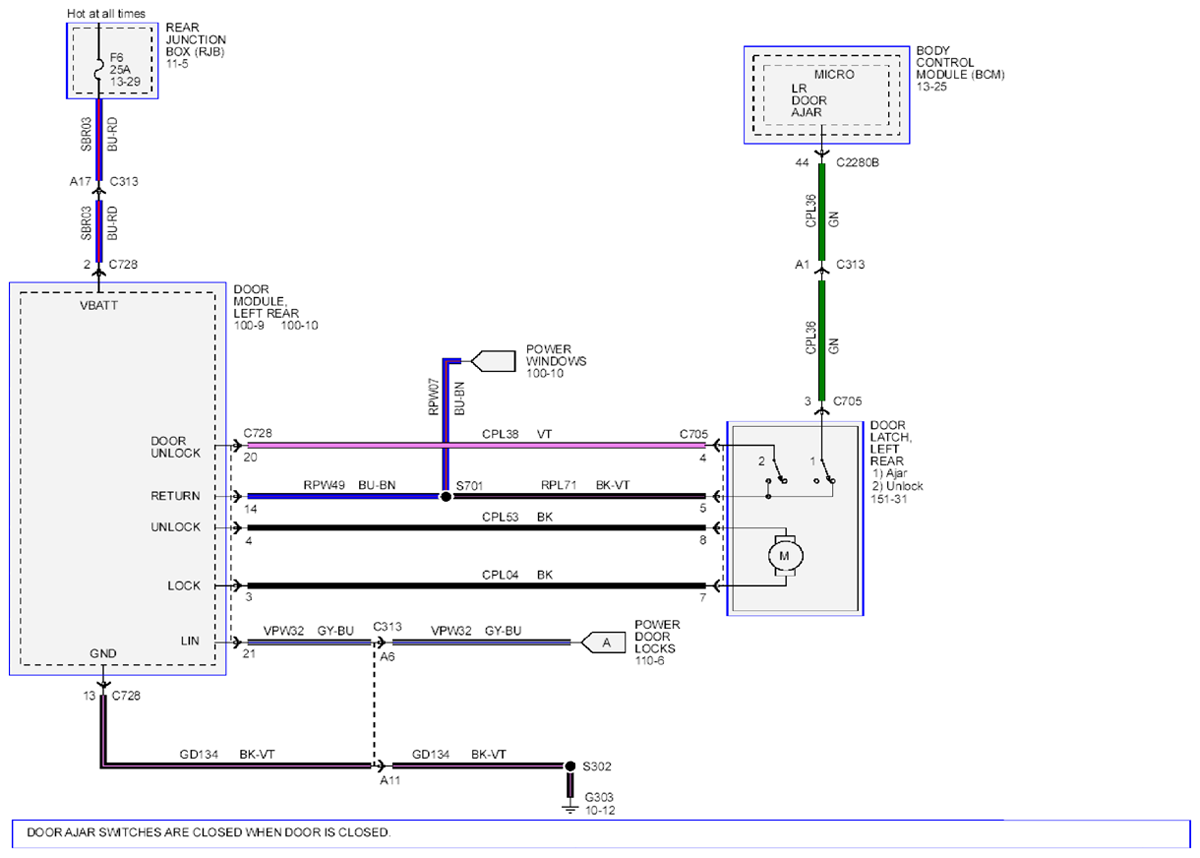

Fig 3: Power Door Locks - Wiring Diagram (With Door Modules; 3 Of 4)
G09255349Courtesy of FORD MOTOR CO.

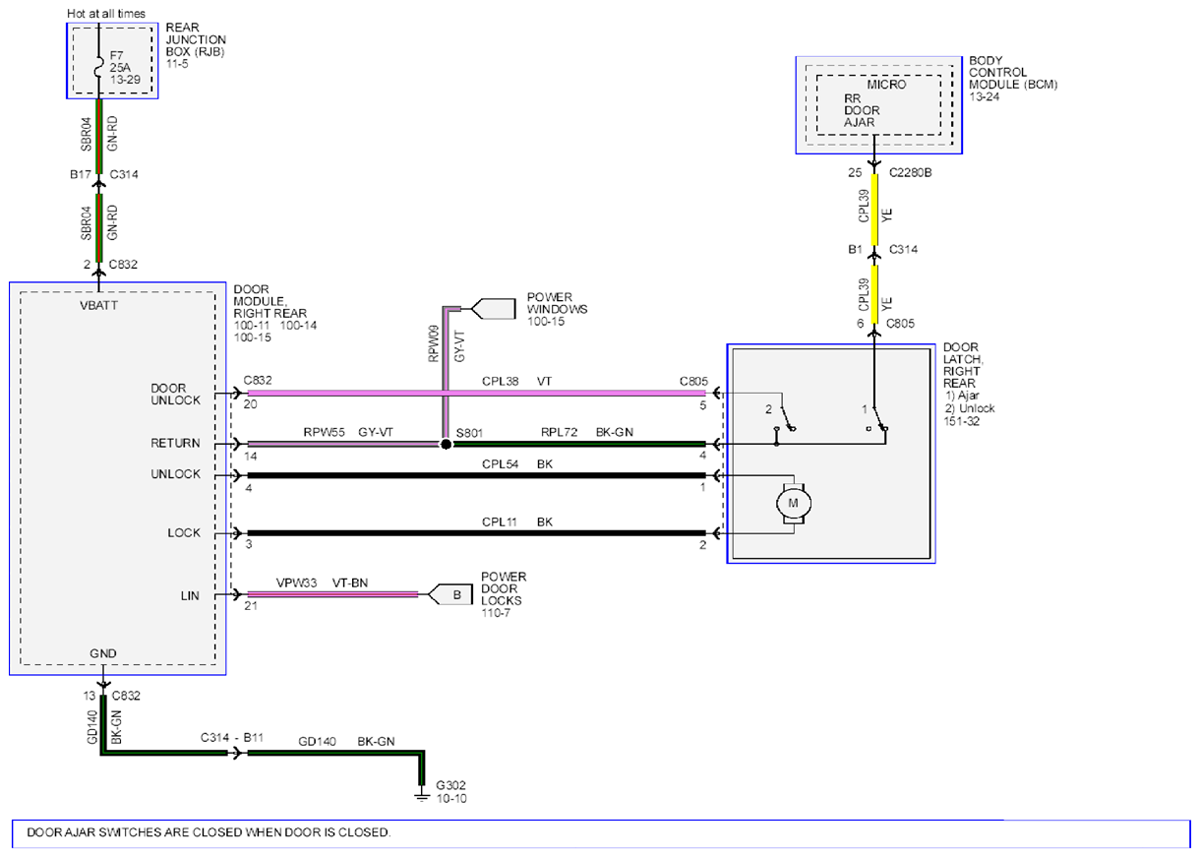

Fig 4: Power Door Locks - Wiring Diagram (With Door Modules; 4 Of 4)
G09255350Courtesy of FORD MOTOR CO.
