Sync Gen 2

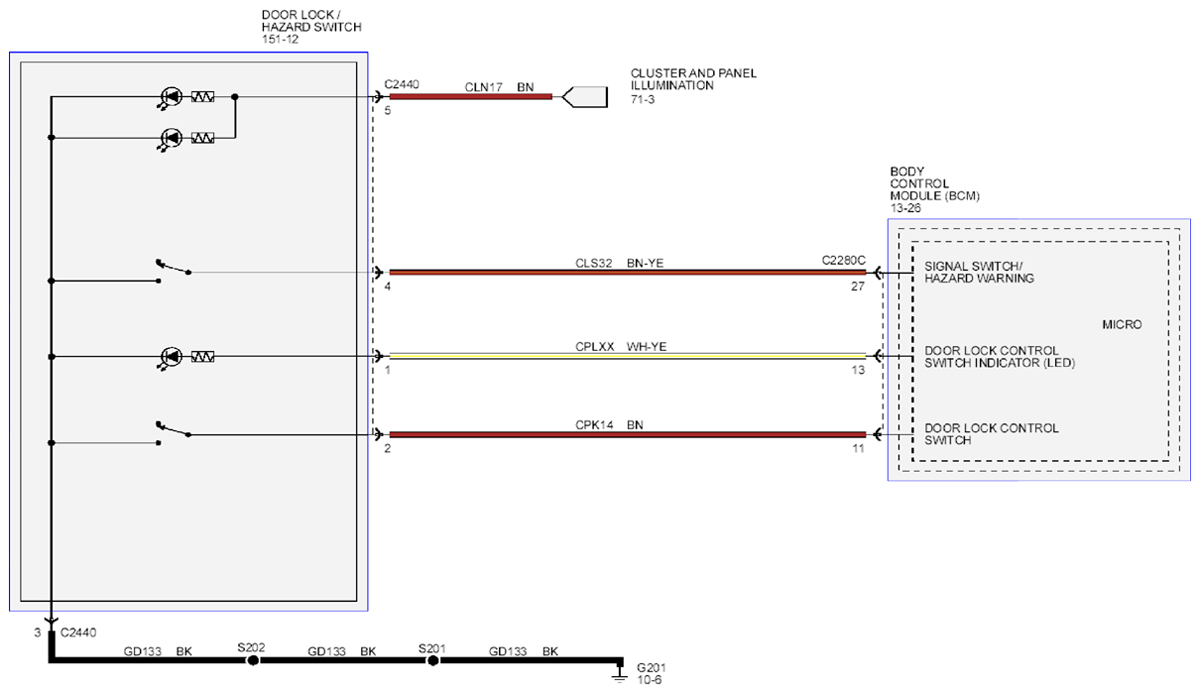

Fig 1: Power Door Locks - Wiring Diagram (SYNC Gen 2)

G09255343

Courtesy of FORD MOTOR CO.
