Power Door Locks: Notes

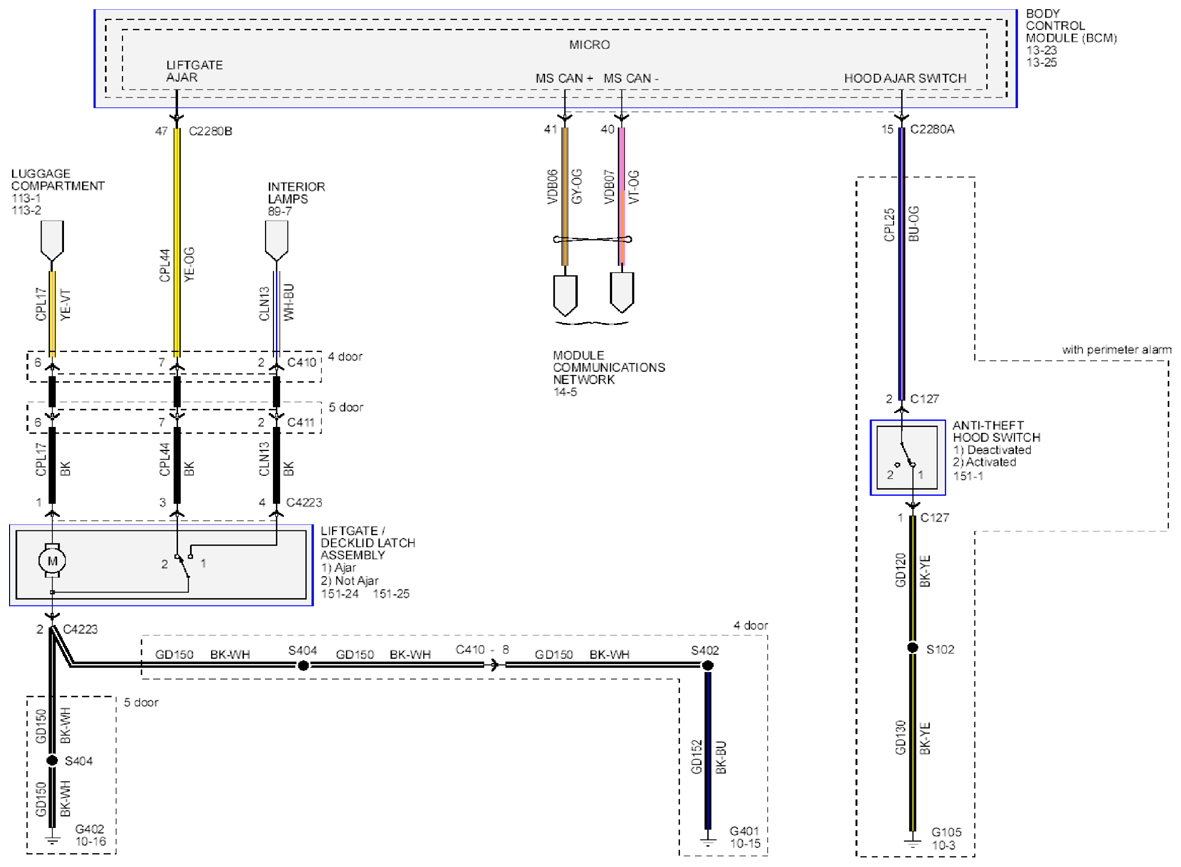

Fig 1: Power Door Locks - Wiring Diagram

G09255351

Courtesy of FORD MOTOR CO.
