OEM Wiring Diagrams -- Except Electric
>>
Power Distribution
>>
Without IA
Without IA

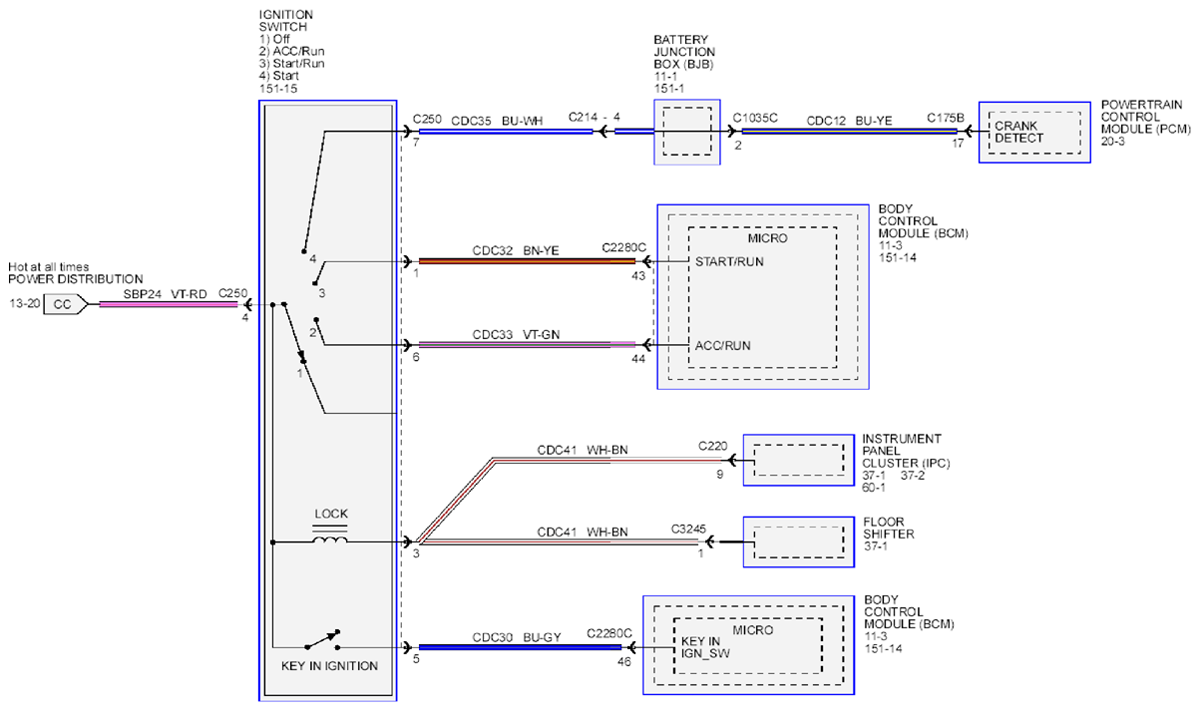

Fig 1: Power Distribution (Without IA) - Wiring Diagram
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
