OEM Wiring Diagrams -- Except Electric
>>
Power Distribution
>>
With IA
With IA

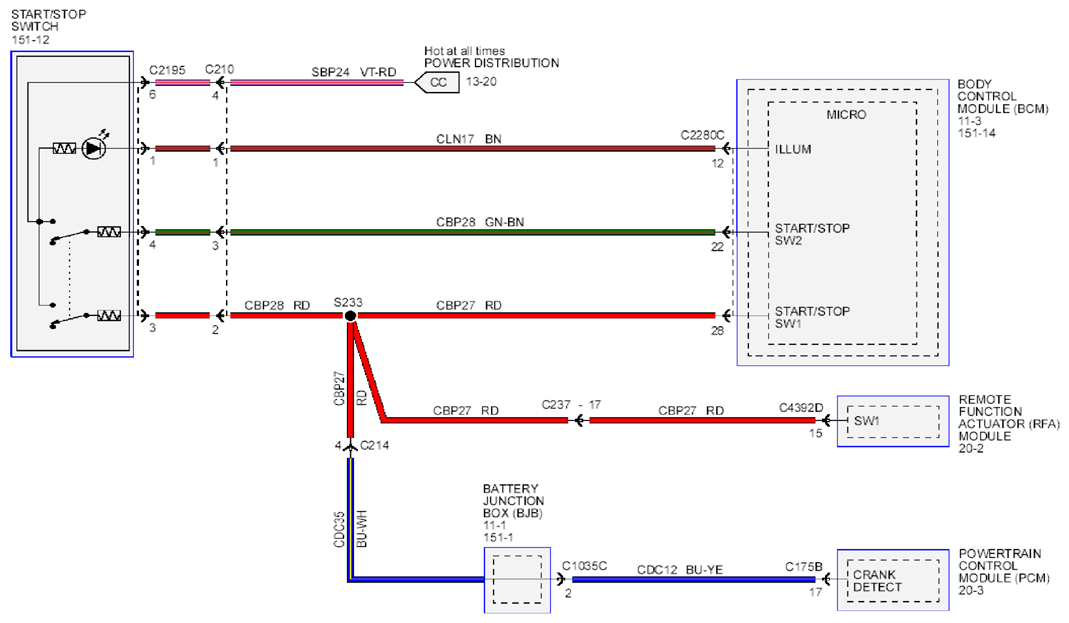

Fig 1: Power Distribution (With IA) - Wiring Diagram
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
