Power Distribution: Notes

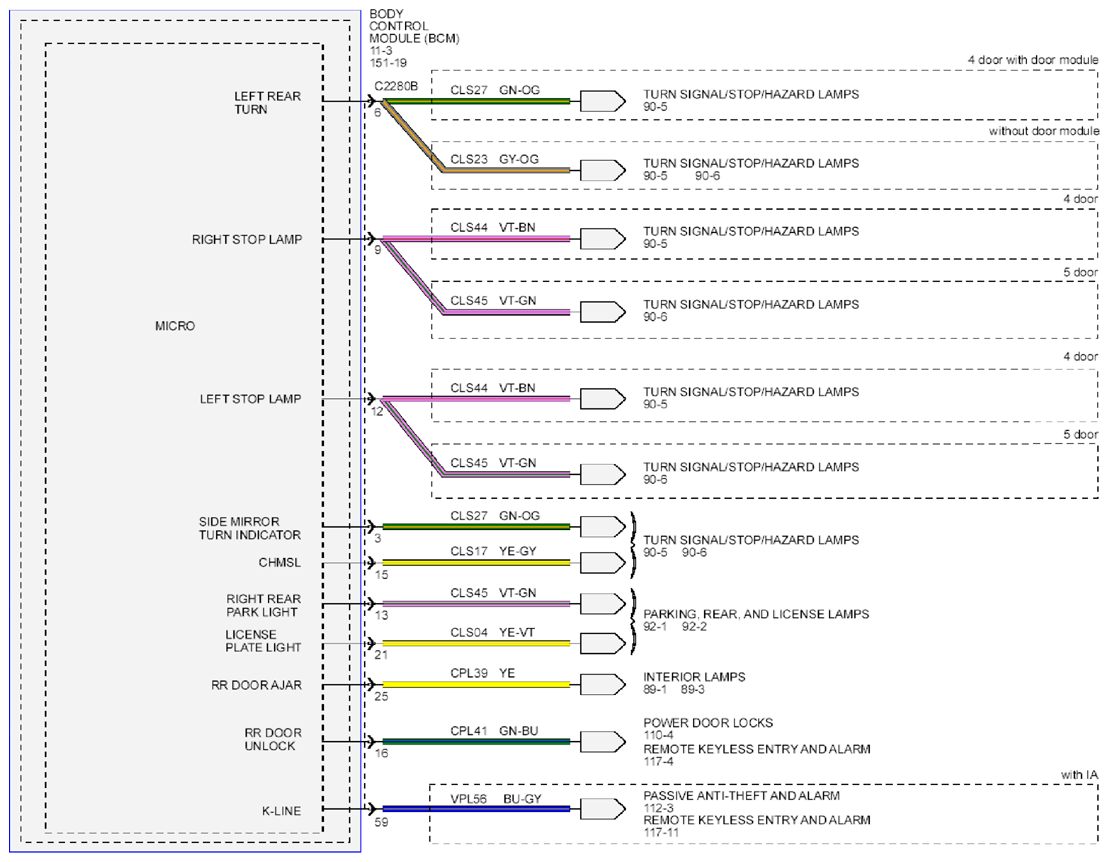

Fig 1: Power Distribution - Wiring Diagram (1 Of 6)
Courtesy of FORD MOTOR CO.

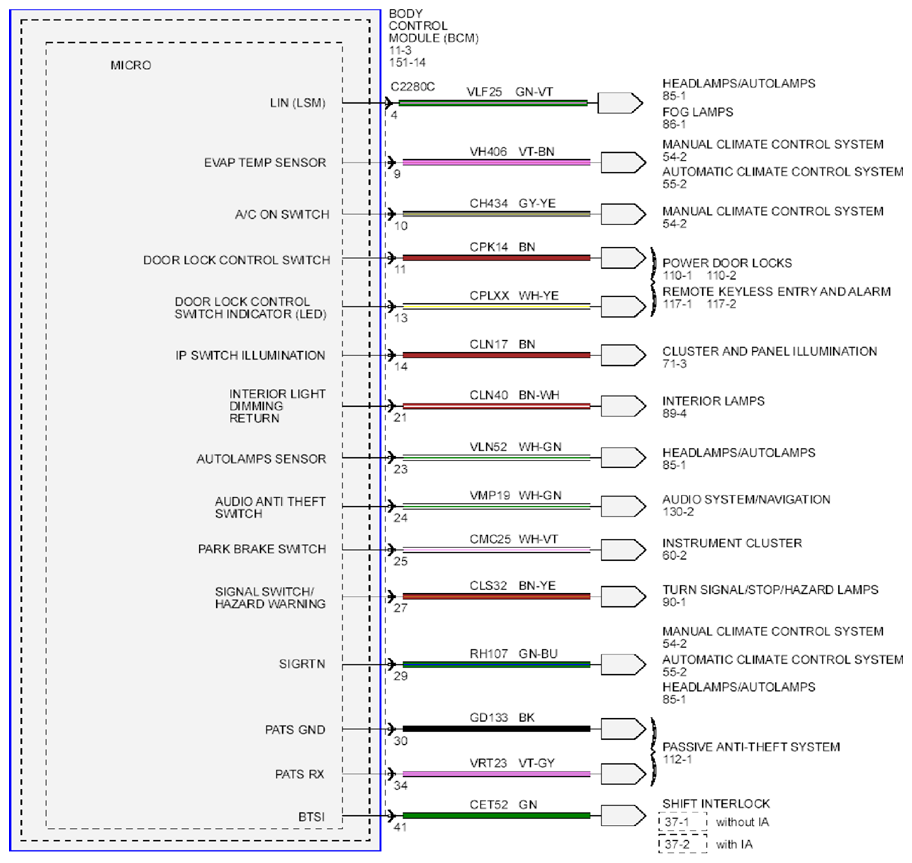

Fig 2: Power Distribution - Wiring Diagram (2 Of 6)
Courtesy of FORD MOTOR CO.

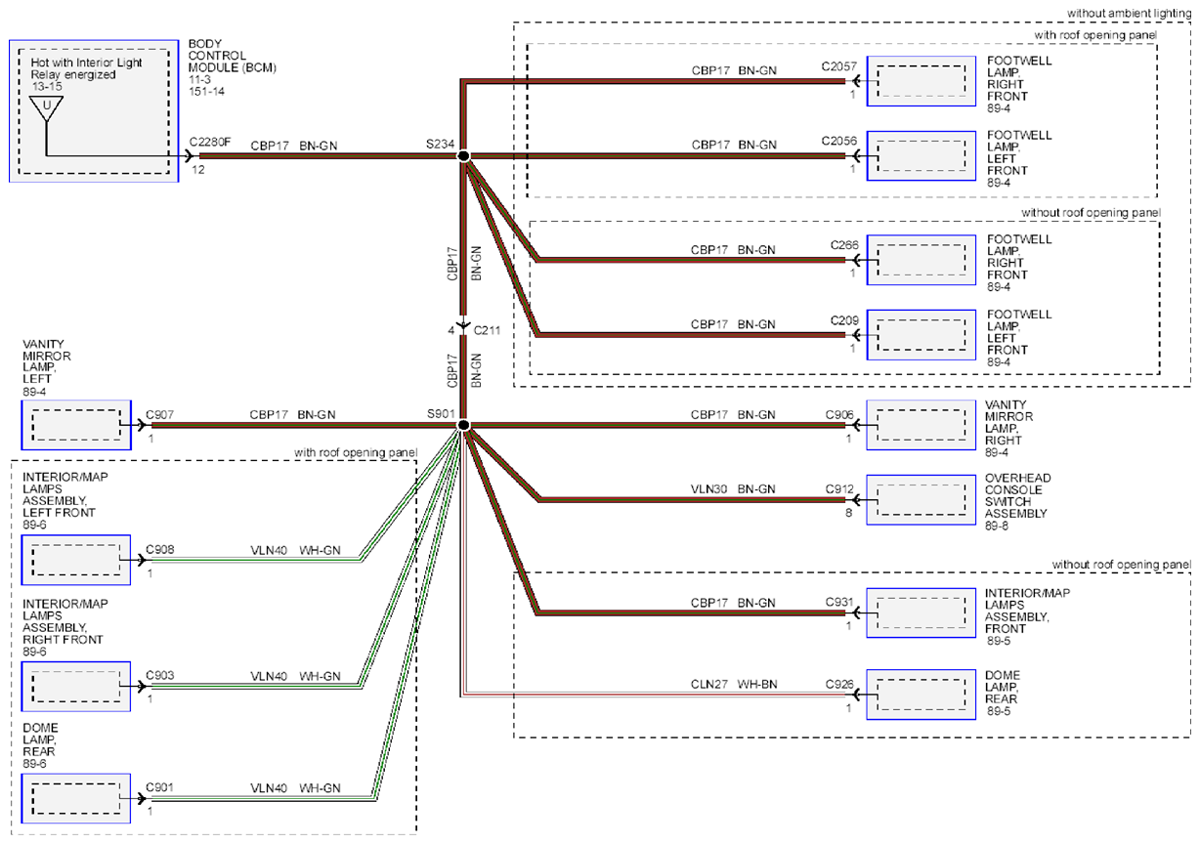

Fig 3: Power Distribution - Wiring Diagram (3 Of 6)
Courtesy of FORD MOTOR CO.

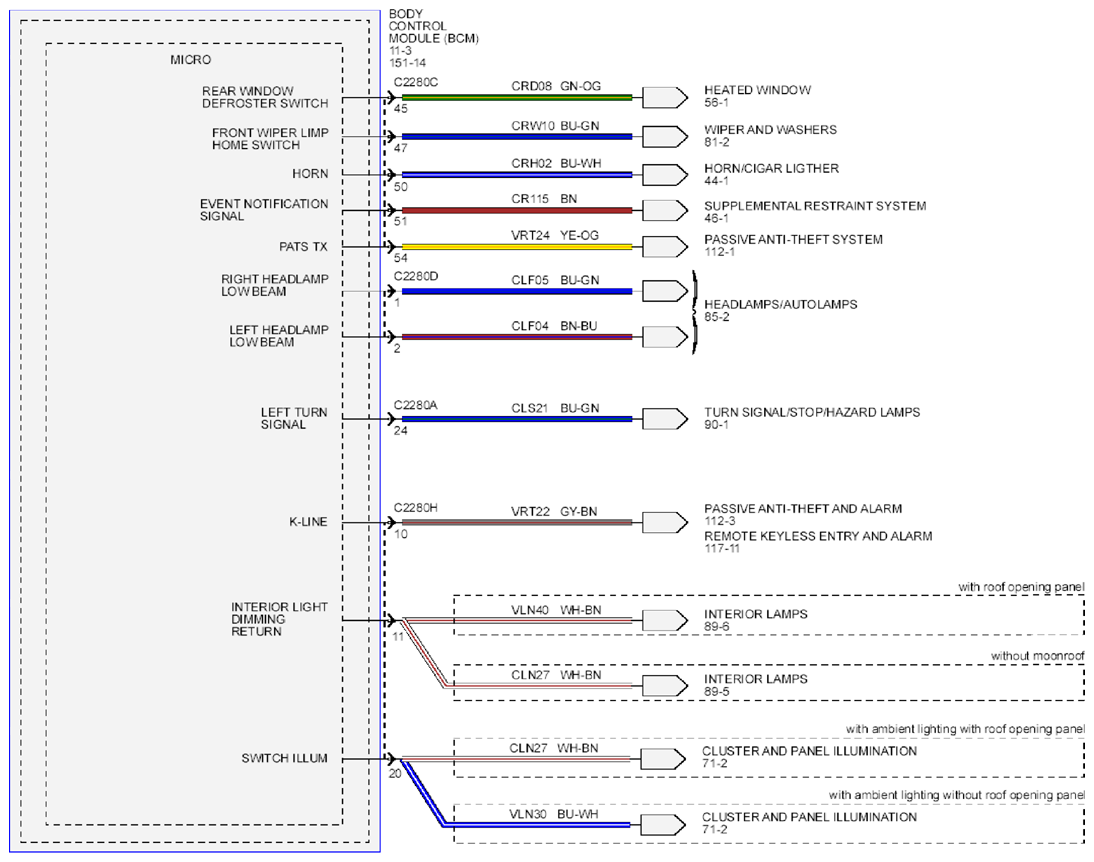

Fig 4: Power Distribution - Wiring Diagram (4 Of 6)
Courtesy of FORD MOTOR CO.

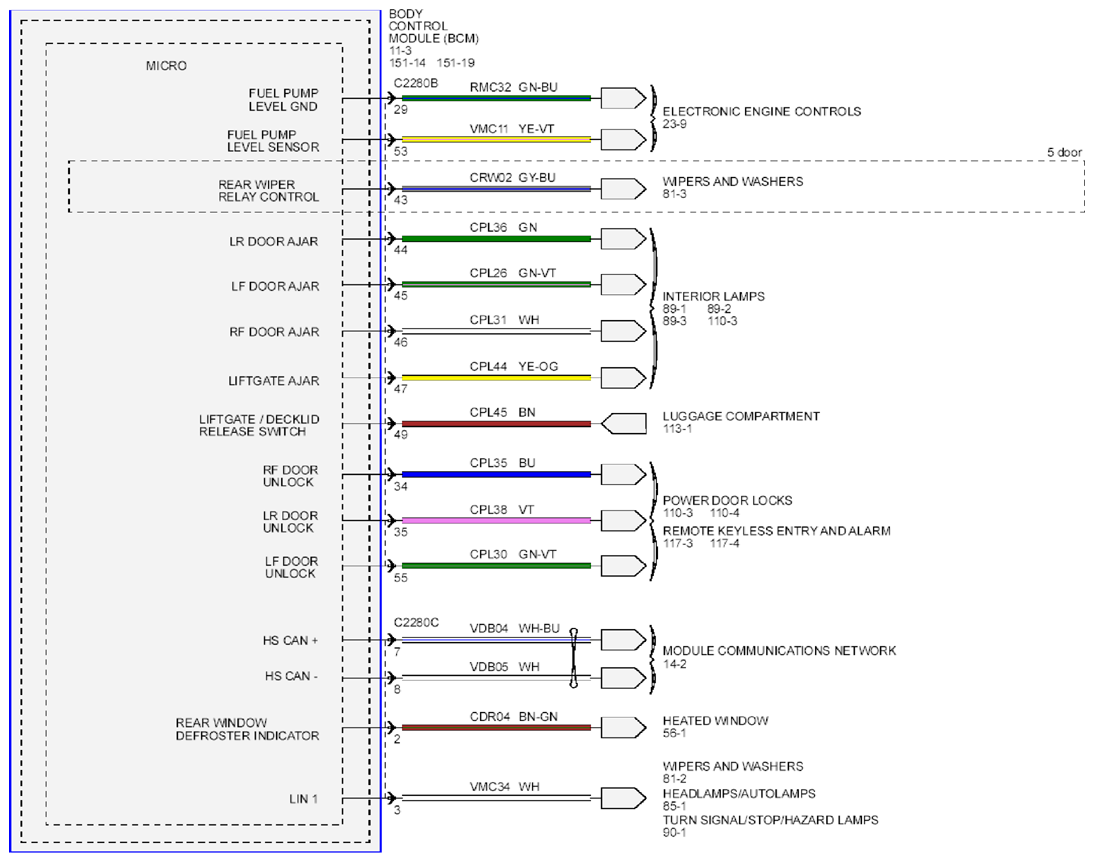

Fig 5: Power Distribution - Wiring Diagram (5 Of 6)
Courtesy of FORD MOTOR CO.

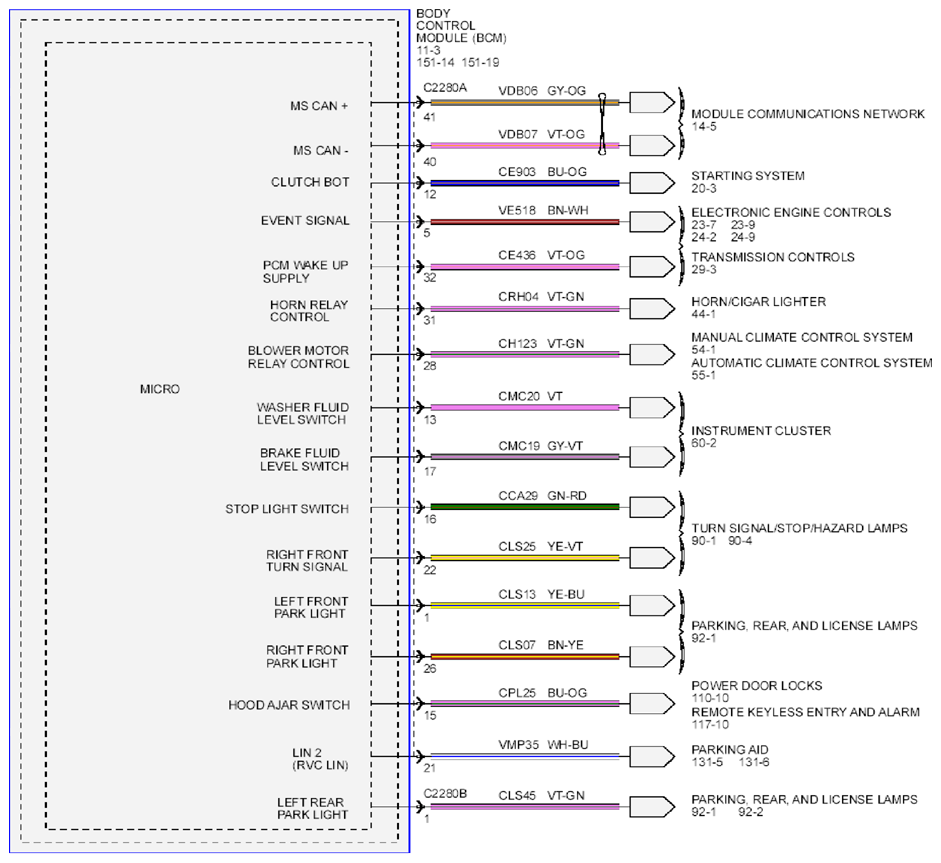

Fig 6: Power Distribution - Wiring Diagram (6 Of 6)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
