Mega Fuse
Mega Fuse

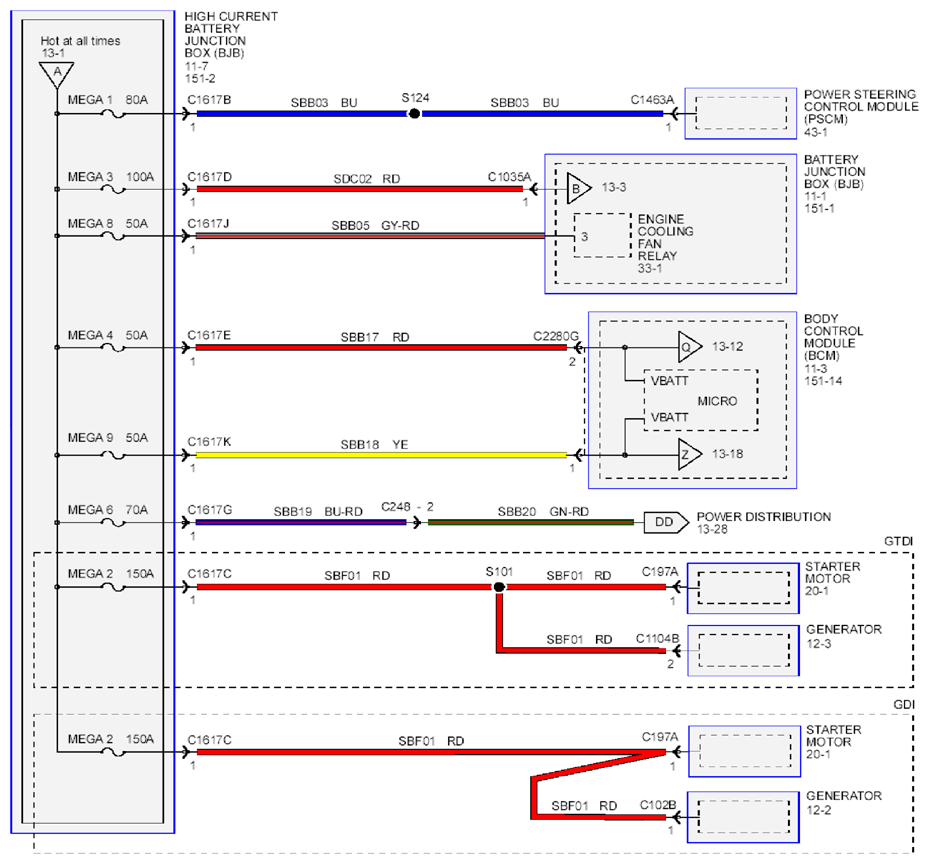

Fig 1: Power Distribution - Wiring Diagram - MEGA Fuses
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
