F7, F8, F15, F18, F21, F24, F26, F30

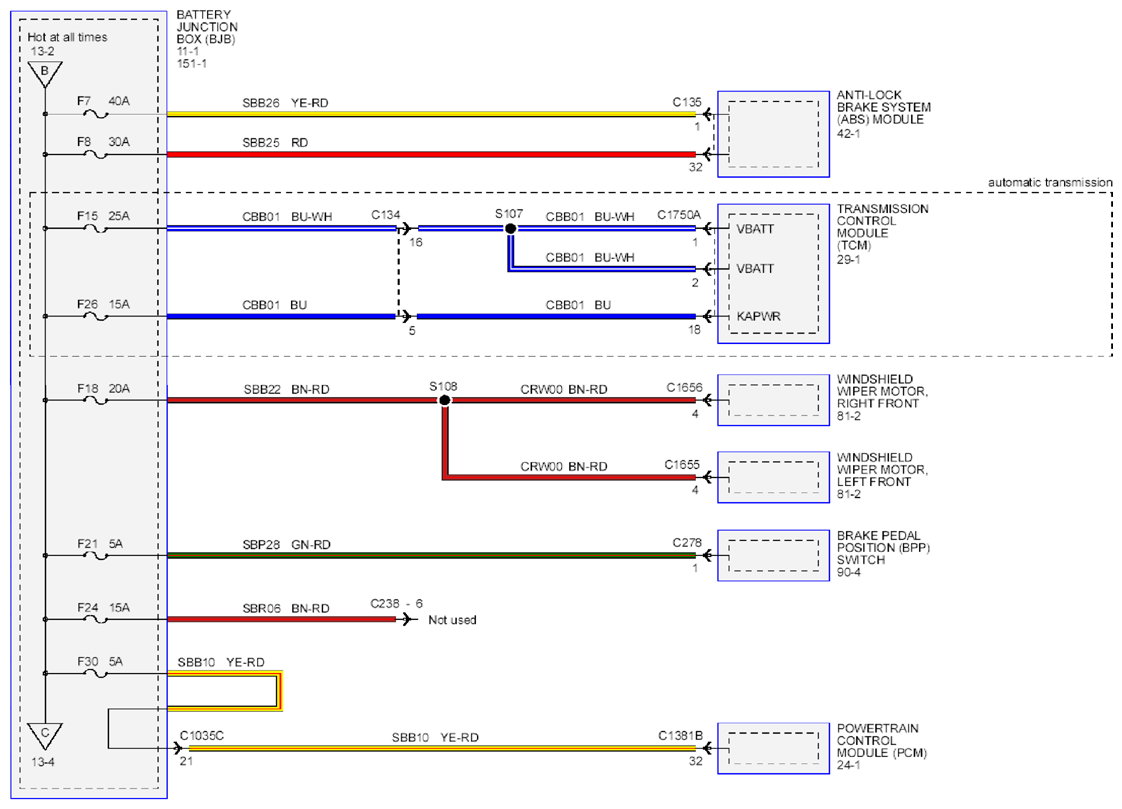

Fig 1: Power Distribution - Wiring Diagram - F7, F8, F15, F18, F21, F24, F26, F30

G09255188

Courtesy of FORD MOTOR CO.
