F59, F60, F61, F62, F81
F59, F60, F61, F62, F81

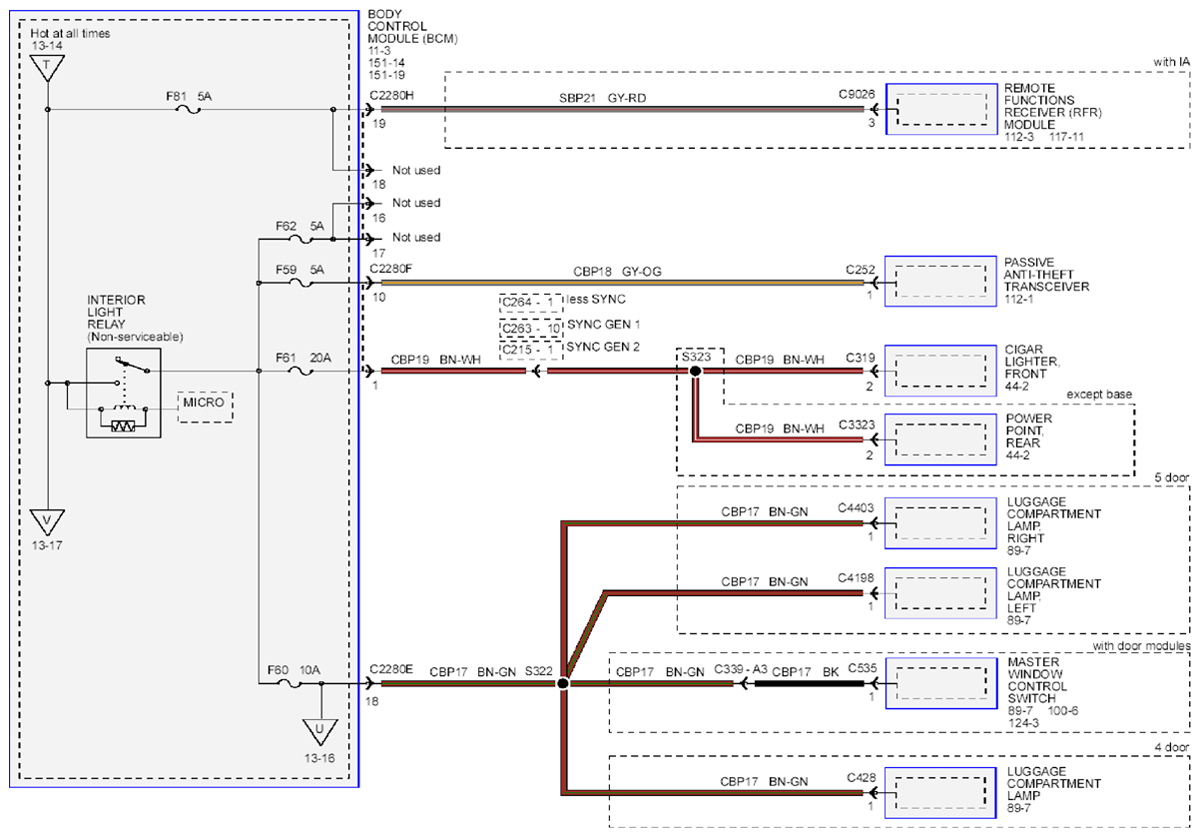

Fig 1: Power Distribution - Wiring Diagram - F59, F60, F61, F62, F81
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
