OEM Wiring Diagrams -- Except Electric
>>
Power Distribution
>>
F32, F33
F32, F33

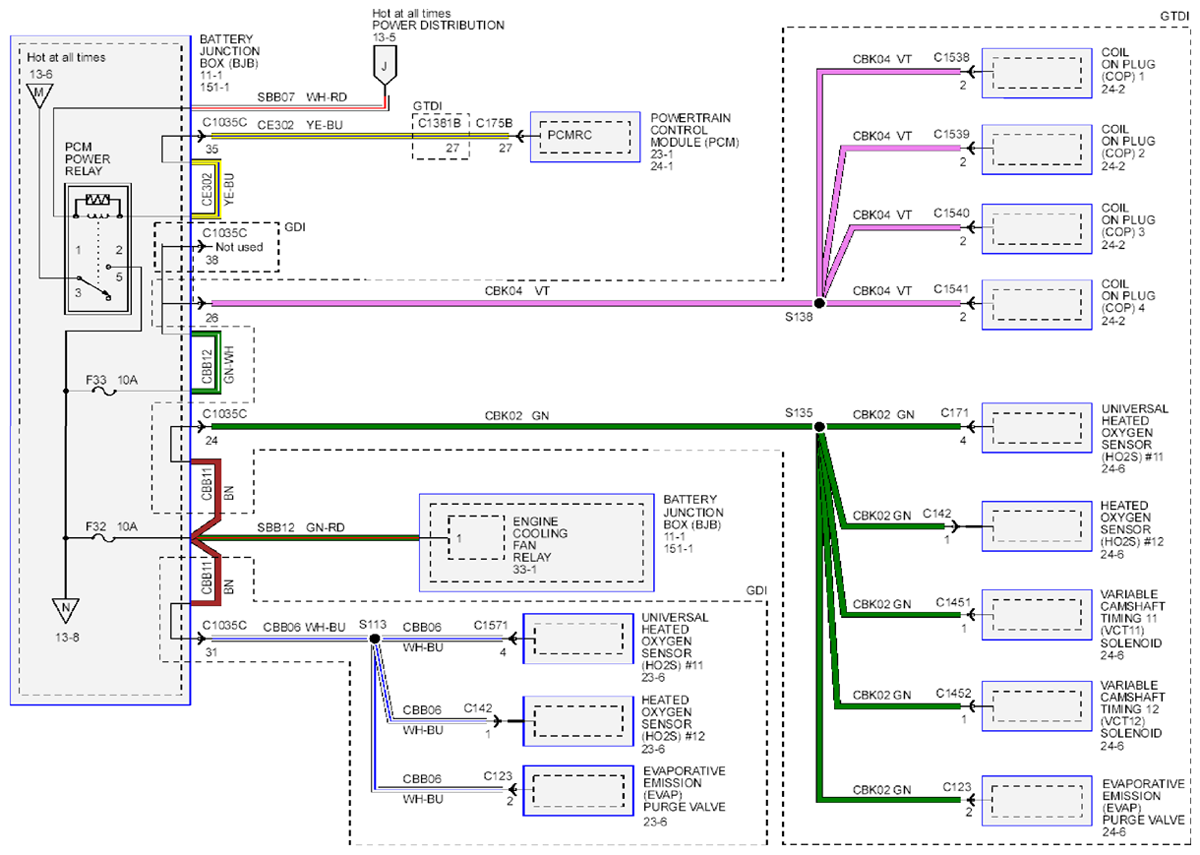

Fig 1: Power Distribution - Wiring Diagram - F32, F33
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
