Power Distribution: F3

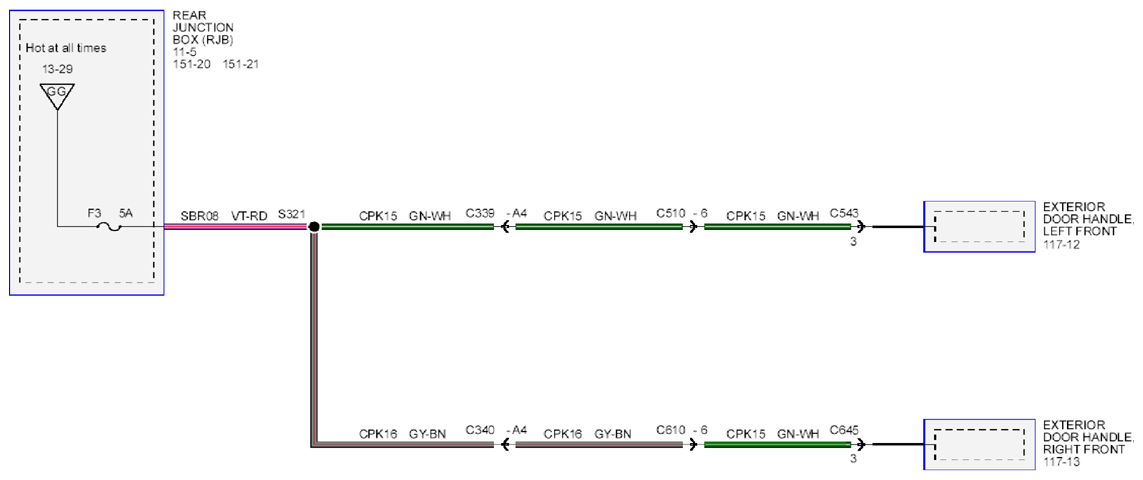

Fig 1: Power Distribution - Wiring Diagram - F3

G09255215

Courtesy of FORD MOTOR CO.
