F29, F30, F34, F35

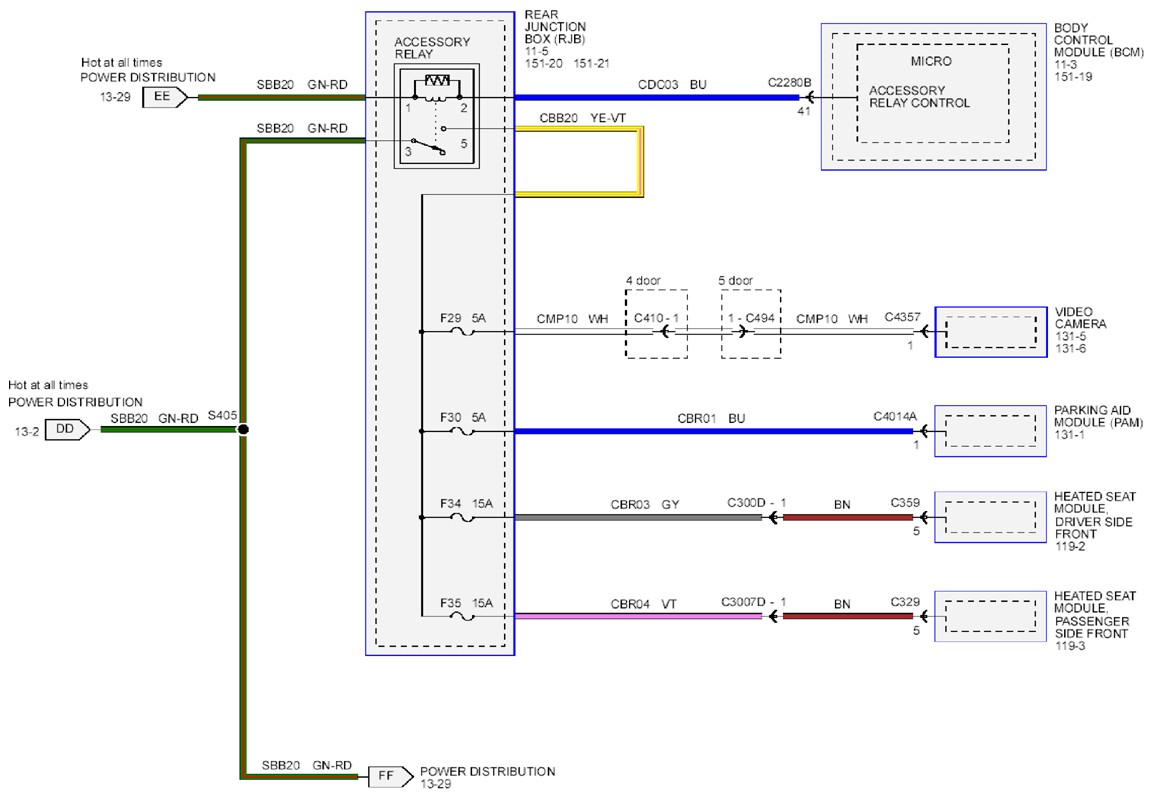

Fig 1: Power Distribution - Wiring Diagram - F29, F30, F34, F35

G09255213

Courtesy of FORD MOTOR CO.
