OEM Wiring Diagrams -- Except Electric
>>
Power Distribution
>>
F14, F19, F25, F46
F14, F19, F25, F46

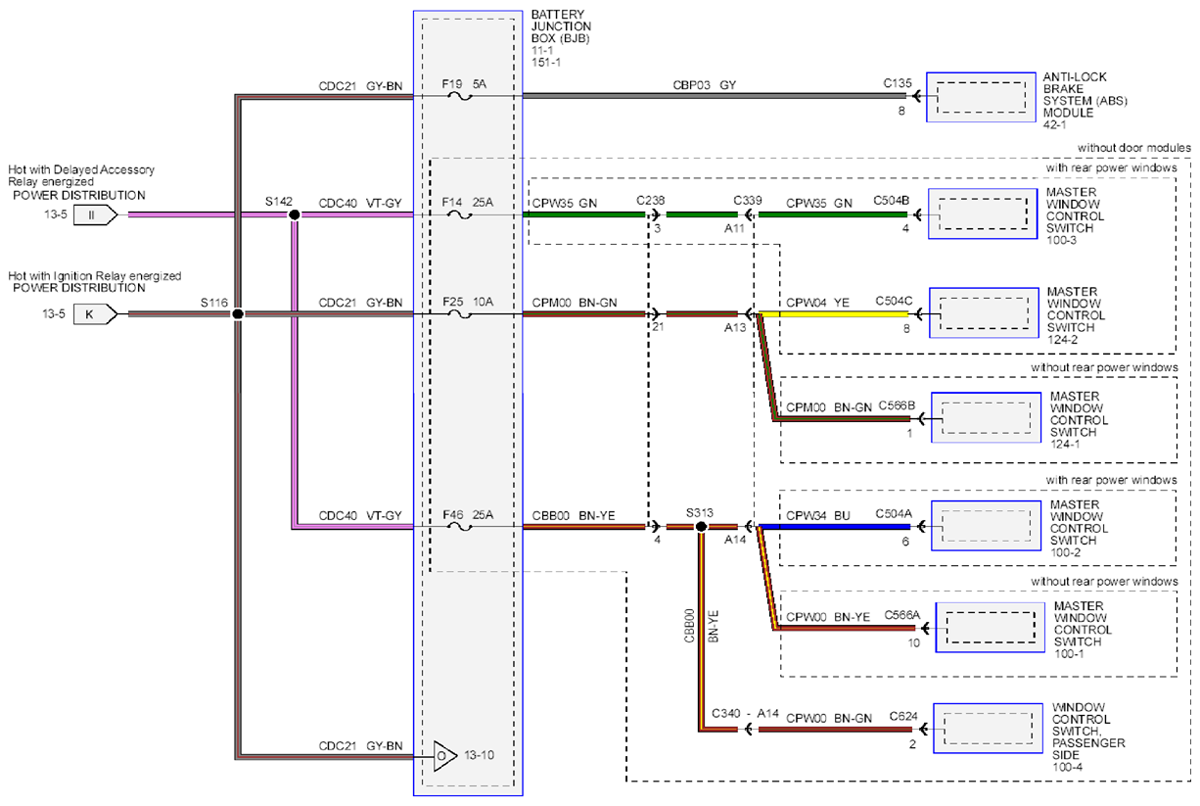

Fig 1: Power Distribution - Wiring Diagram - F14, F19, F25, F46
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
