OEM Wiring Diagrams -- Except Electric
>>
Power Distribution
>>
F10, F13, F20, F27
F10, F13, F20, F27

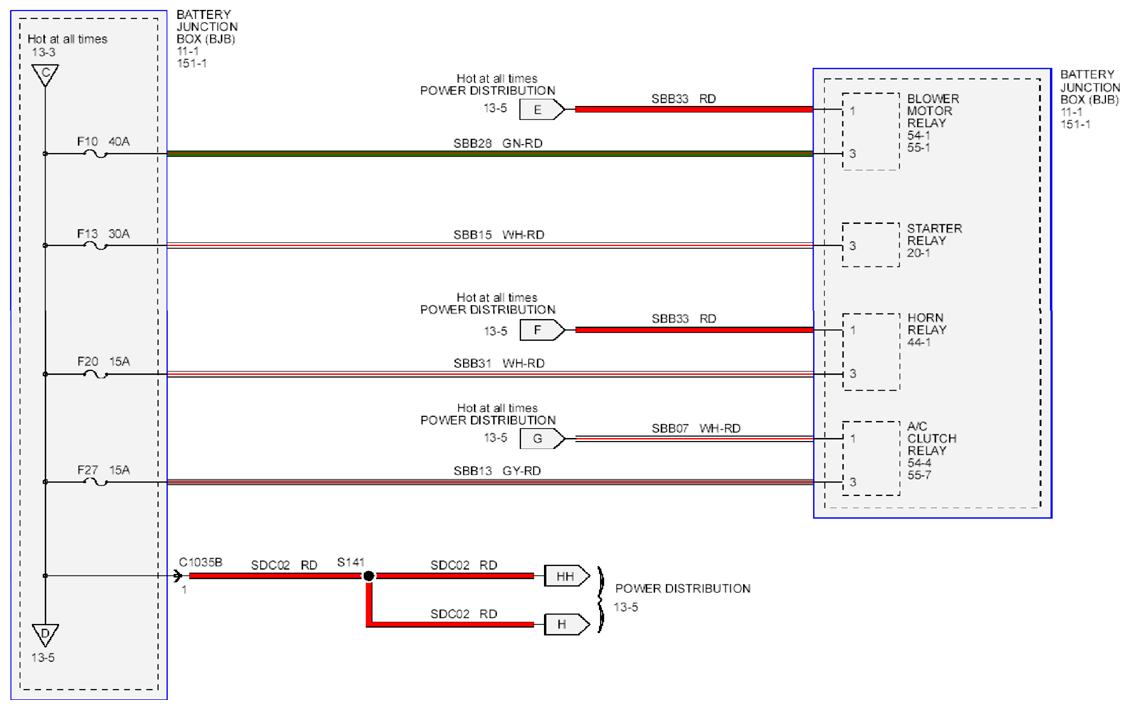

Fig 1: Power Distribution - Wiring Diagram - F10, F13, F20, F27
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
