Passive Anti-Theft System: Notes

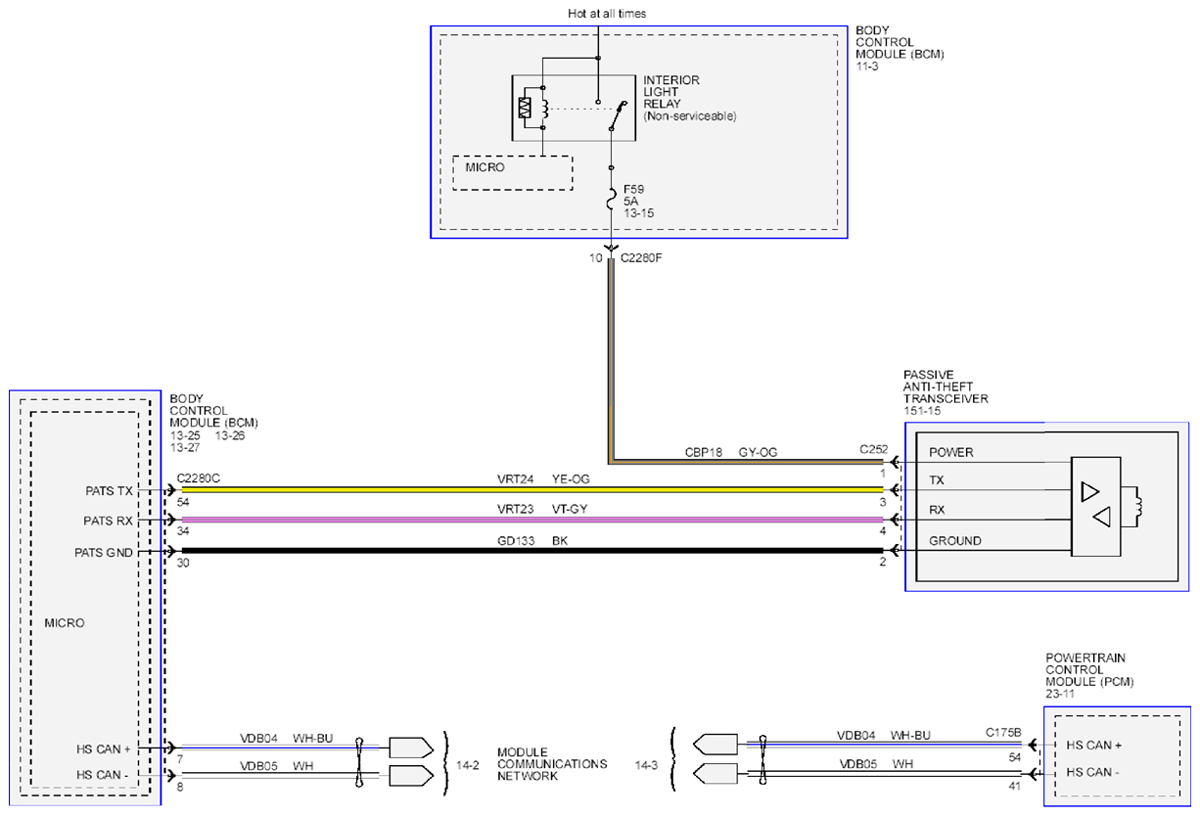

Fig 1: Passive Anti-Theft System - Wiring Diagram

G09255352

Courtesy of FORD MOTOR CO.
