Parking, Rear And License Lamps: Notes

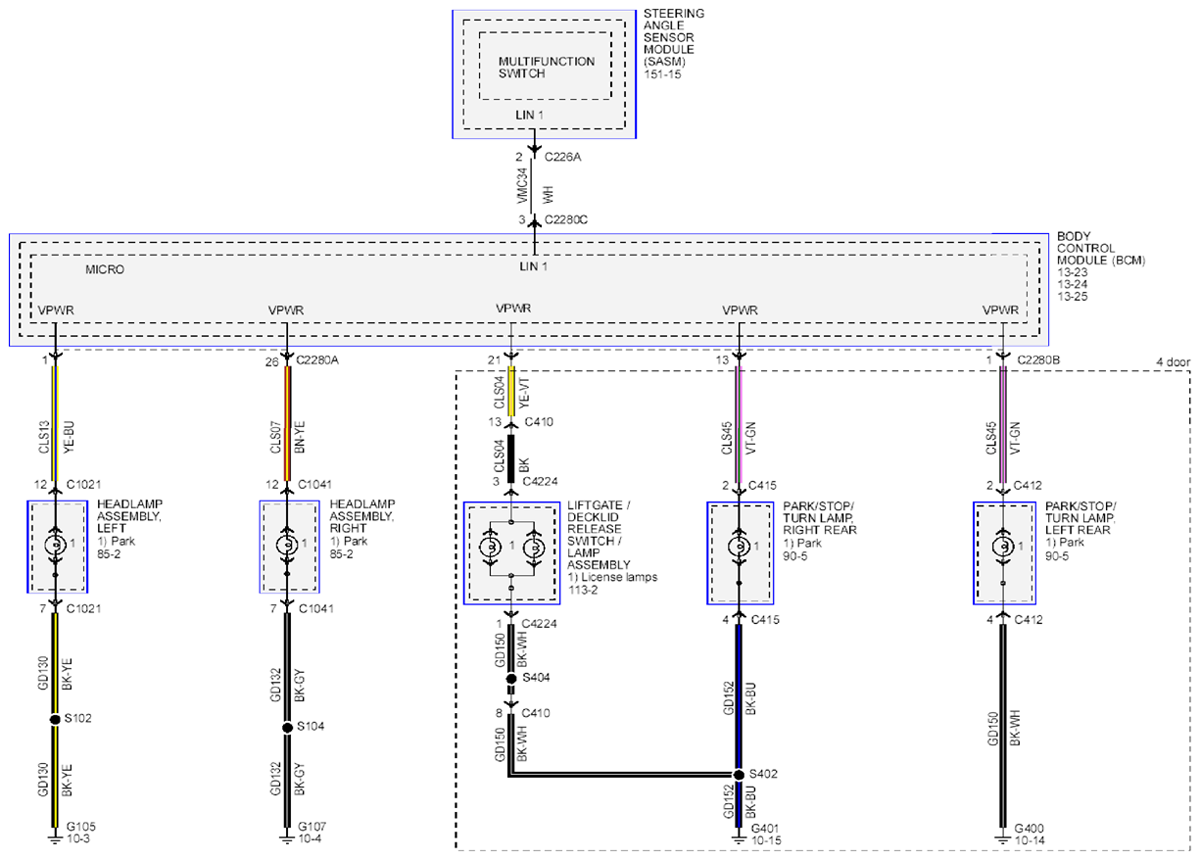

Fig 1: Parking, Rear And Licence Lamps - Wiring Diagram
G09255322Courtesy of FORD MOTOR CO.
