5 Door

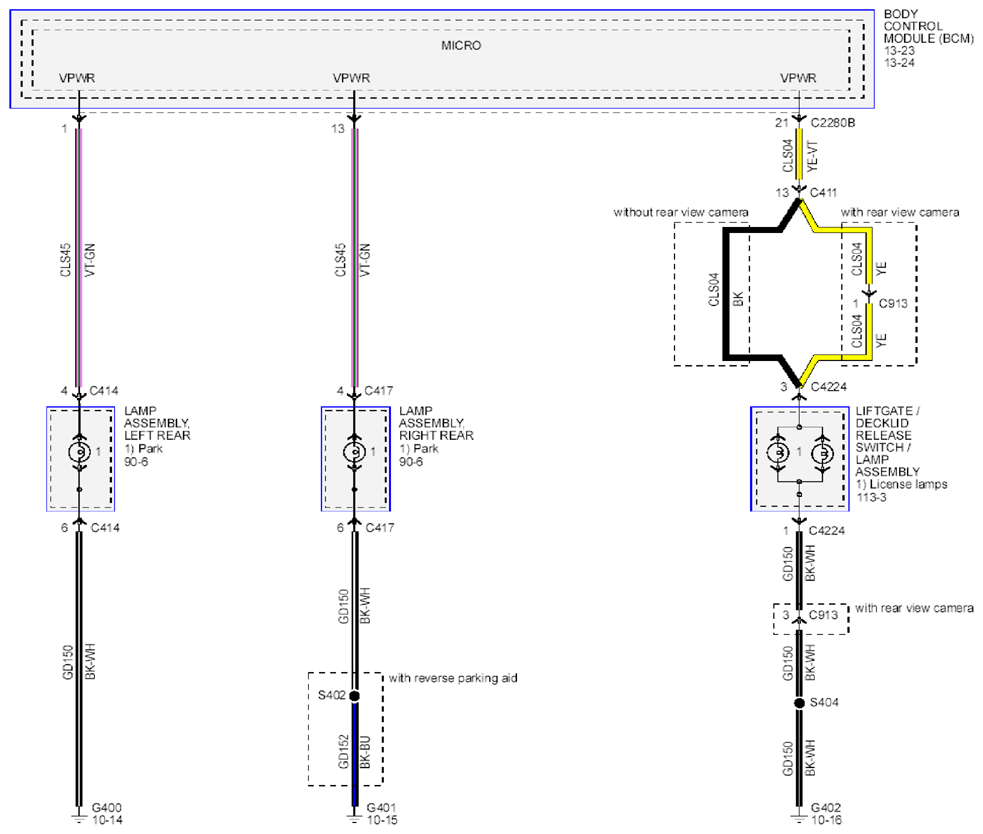

Fig 1: Parking, Rear And Licence Lamps - Wiring Diagram (5 Door)

G09255323

Courtesy of FORD MOTOR CO.
