With Front Parking Aid And Active Park Assist

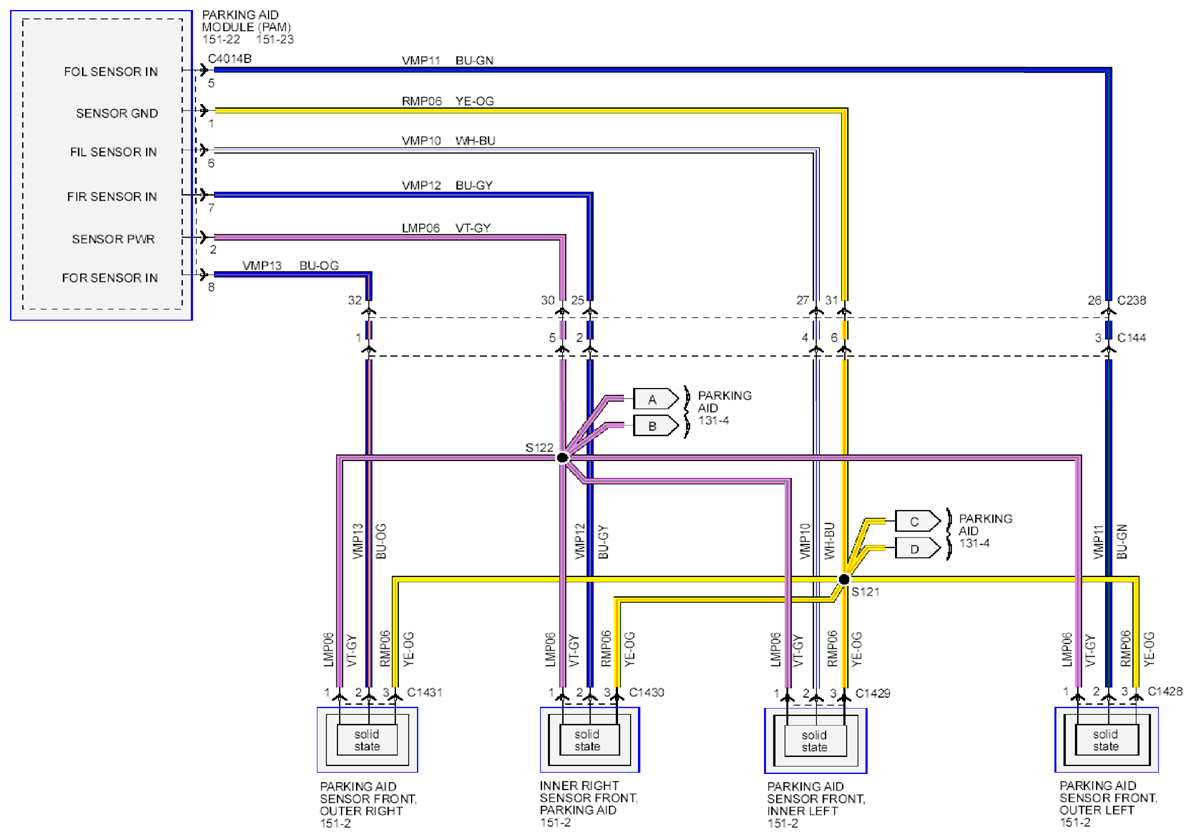

Fig 1: Parking Aid - Wiring Diagram (With Front Parking Aid And Active Park Assist)

G09255406

Courtesy of FORD MOTOR CO.
