With Font Parking Aid And Activate Park Assist

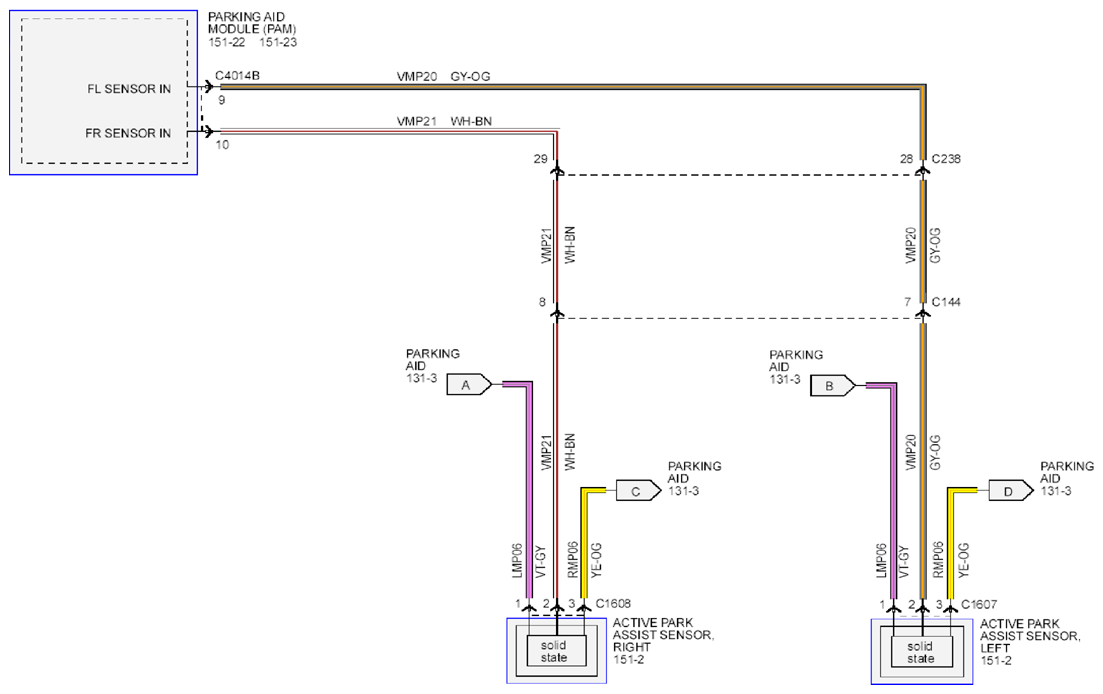

Fig 1: Parking Aid - Wiring Diagram (With Font Parking Aid And Activate Park Assist)

G09255407

Courtesy of FORD MOTOR CO.
