Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams -- Except Electric
>>
Parking Aid
>>
Rear View Camera Except Sync Gen2
Rear View Camera Except Sync Gen2

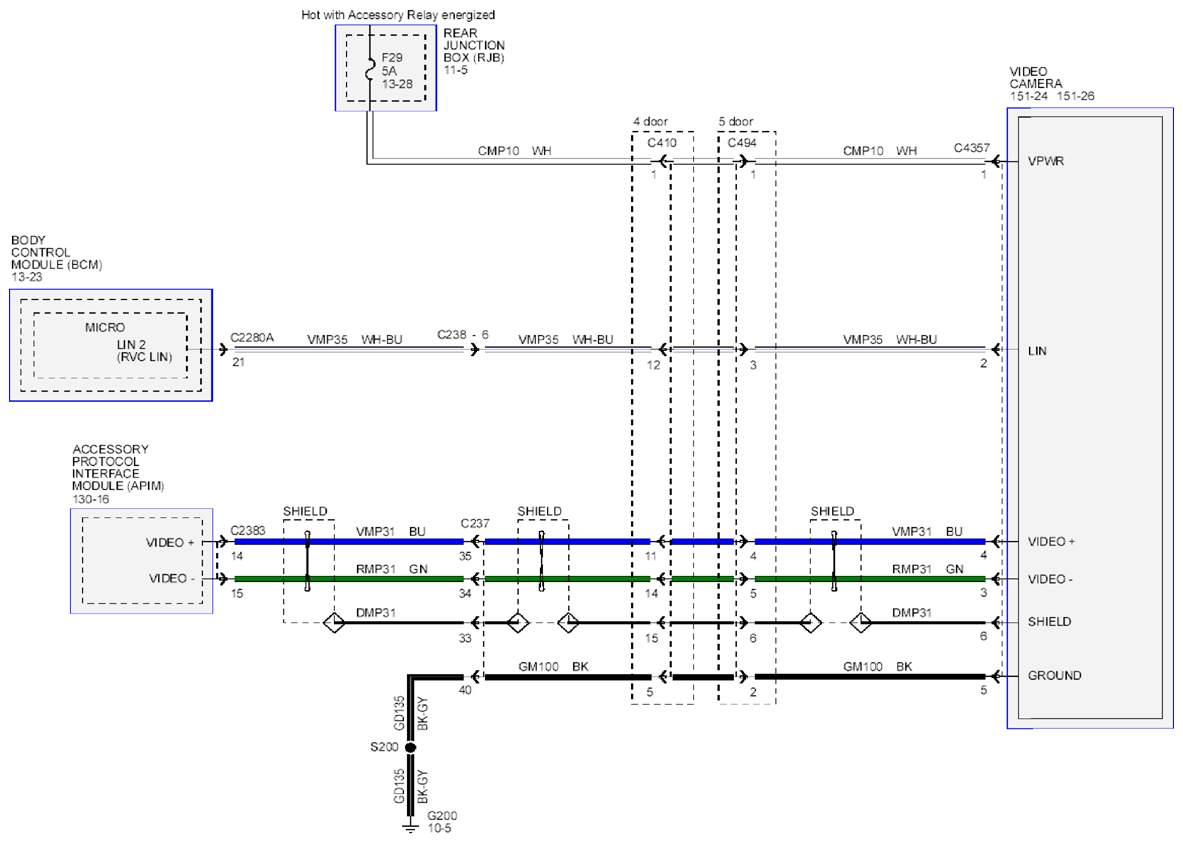

Fig 1: Parking Aid - Wiring Diagram (Rear View Camera Except SYNC GEN2; 1 Of 2)
Courtesy of FORD MOTOR CO.

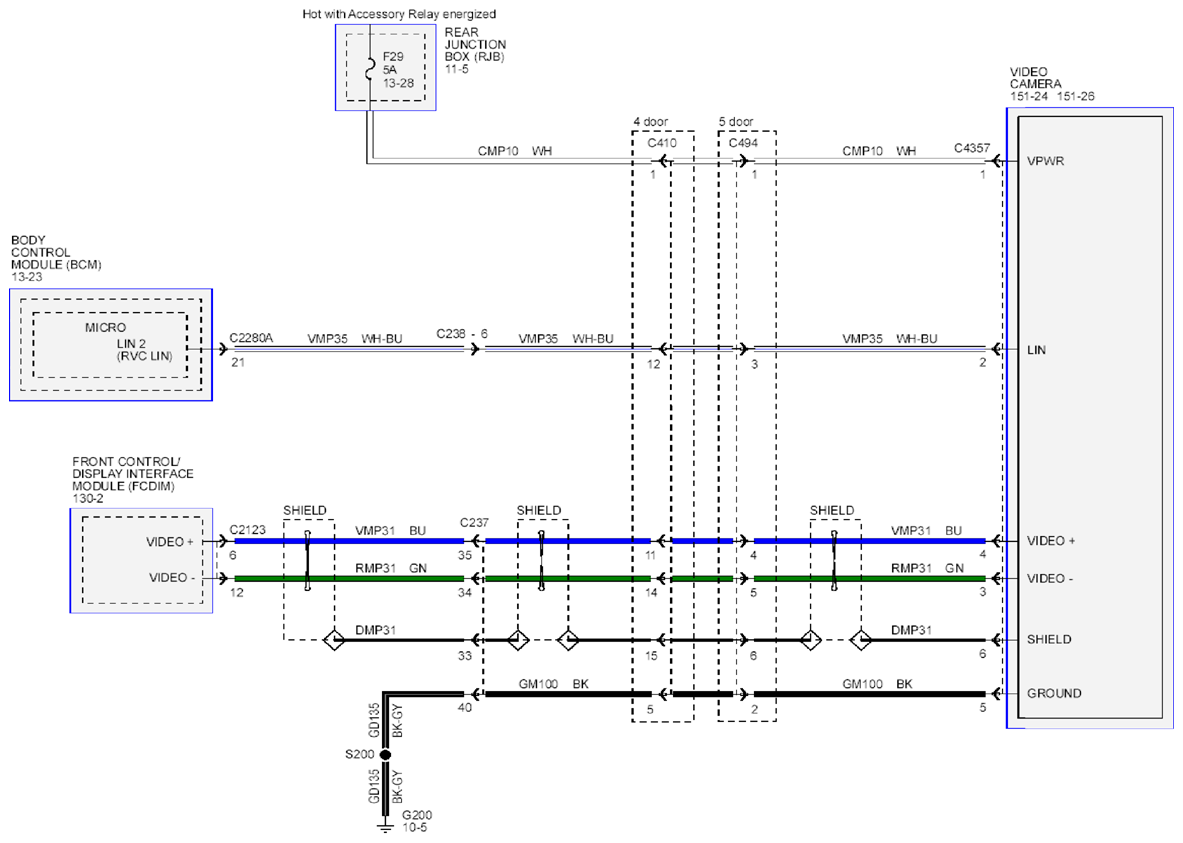

Fig 2: Parking Aid - Wiring Diagram (Rear View Camera Except SYNC GEN2; 2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
